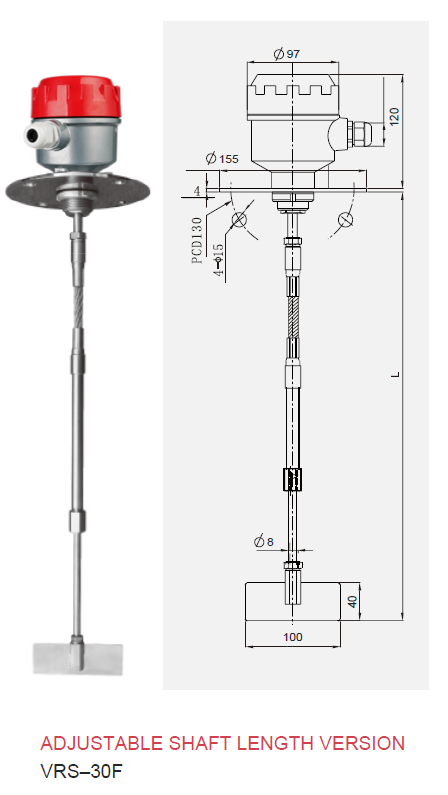

VRS-30F ADJUSTABLE SHAFT LENGTH VERSION

SKU : VRS-30F

Product not found

Price

0.00 USD

Quantity to buy
Total

Do not have enough stock

Out of stock

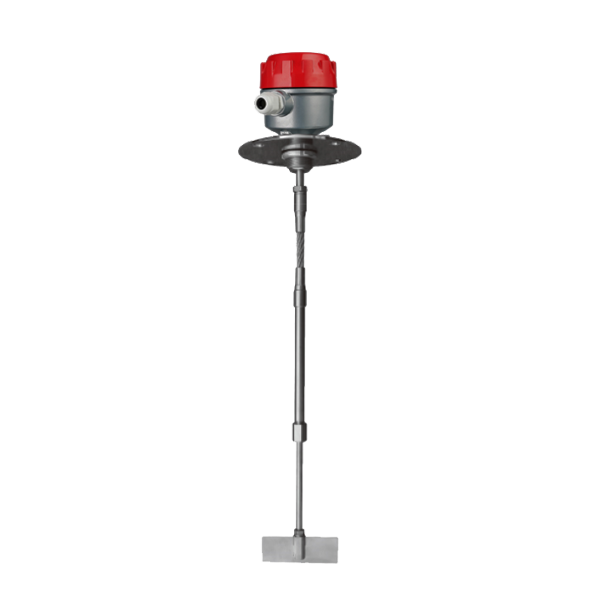

VRS-30F Rotary Paddle Level Switch

Overview :

  • Utilizes micro motor as drive device, transmission shaft contact with clutch. When it doesn't contact with material, the motor runs normally; when the blade contacts with material, the motor stops running; testing device outputs a contact signal and cuts the power and it stops rotary in the meantime. The pressure to blade is disappear when the material gradually fall down, and the testing device recovered to the original state by torsion spring. Torsion could be regulated according to different gravity of materials.

หมายเหตุ : สินค้ารายการนี้ มีศูนย์ บริการในประเทศ,มีอะไหล่เครื่องราคาส่งพร้อมช่างผู้ชำนาญ มีบริการติดตั้ง สอนการใช้งานฟรี และให้คำแนะนำกรณีมีช่างติดตั้งเอง จัดส่งถึงมือลูกค้าก่อนชำระเงิน ค่าจัดส่งค่าใช้จ่ายอัตตราของผู้ให้บริการรายต่างๆ ตามบิล สำหรับร้านค้าและช่างมีราคา พิเศษ ร้านค้าหรือช่างสามารถสมัครสมาชิกสะสมแต้ม เพื่อแลกของรางวัลได้ที่หน้าเวปไซด์ มีของรางวัลหลายรายการ ( สินค้านี้ซื้อ 1เครื่อง ขึ้นไป ส่งฟรี ) รับตัวแทนจำหน่าย ฟรีข้อมูลสินค้า รับสอนประกอบและตรวจซ่อมฟรี / ไม่มีค่าใช้จ่าย / มีอะไหล่และเครื่องมือในราคาช่าง / มีบริการปรับปรุง เครื่องจักรเพื่อให้มีประสิทธิภาพในการประหยัดพลังงาน ให้ระบบทำงานเพื่อเพิ่มประสิทธิภาพลดการซ่อมยึดอายุการใช้งาน สินค้านี้ขายยกลังในราคาส่ง ราคาที่เสนอต่อ ชิ้น สินค้านี้ต้องตรวจสอบล่าสุดก่อนส่งถึงมือผู้ใช้งานตามมาตรฐานของผู้ผลิตเพื่อลดปัญหาการเสื่อมคุณภาพจากการจัดเก็บที่ไม่ถูกต้องเป็นเวลานาน

Order tracking

 FEATURES :
  • Detection of loose solid materials using the technology of the rotating blade
  • The highly integrated mechanical seal to prevent infiltra- tion of dust along the axis
  • The unique elastically clutch structure, when the blade being overloaded, the automatic protection of electrical machinery could be realized
  • Completely mechanical and electrical separation structure, need not to demolish, easy to maintain
  • Special blades can be used for low-density mediums
  • Use of the process connecting pieces, easy to install

VRS-30F Series

VRS-30F Series Wiring

VRS-30F Series Ordering

VRS-30F Series  Technical Data

VRS-30F Series Installation

VRS-30F Series Paddle Select Guide

   APPLICATIONS :
  • Used for detecting material level of warehouse, vessel, bin and tank. The material level switch can prevent ware- house flooding, tank jam and ware house empty so as to reduce flooding, material waste and standby time.
  • It is also suitable for plastic, food, chemical industry, mine- ral iron, material and other solid matter.
