HLG-240H-20B

SKU : HLG-240H-20B

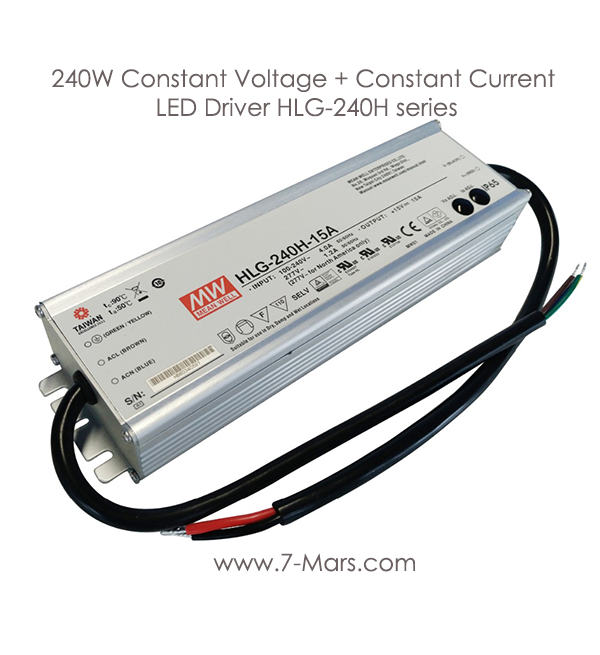

240W Constant Voltage + Constant Current LED Driver HLG-240H series

*Type B 3 in 1 dimming function 1-10VDC 10V PWM signal and resistance) / Note : In Stock  Power Output : 240W. / Voltage : 10 - 20V / Current : 12A

Description :

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90 - 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C - +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Feature :

1.  Constant current + Constant Voltage mode Output
2. Universal AC. Input / Full range
3. Metal housing Class I Design
4. Built-in active PFC. Function
5. IP65 or 67 rating for Indoor or Out Door Installation
6.  Function Option : Output adjustable via Potentionmeter 3in1 Dimming
7.  Suitable for LED related for fixture or appliance ( Such as LED Decoretion or Advertisement devices )
8.  90% Full load Brun - in Test
9. Typecal lifetime 62000hrs.
10.  7Year warranty

Application :

1. LED Street light
2. LED High-Bay Light
3. Packing space lighting
4. LED Fishing lamp
5. LED Green house light
6. Type "HL" Light for Use in Class I Division 2 hazardous (Classified) Location

MOQ. 1Ea. / 12Ea. 16.6kgs. 0.84CUFT.

More Detail : Click
