HLG-150H-20B

SKU : HLG-150H-20B

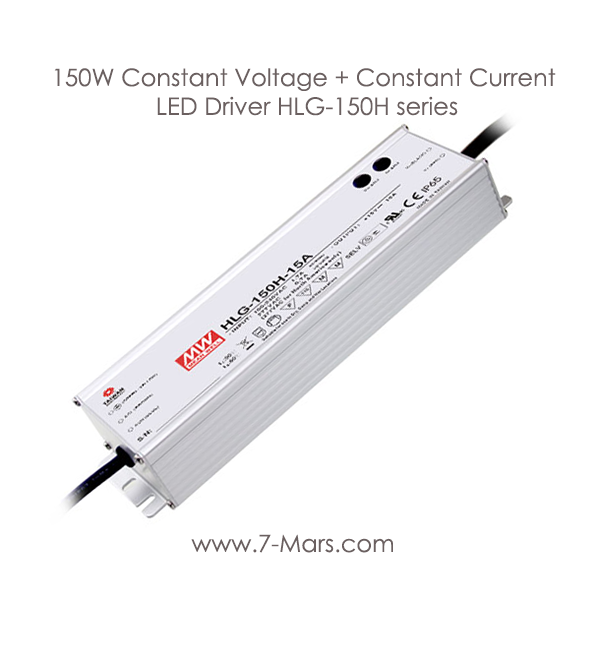

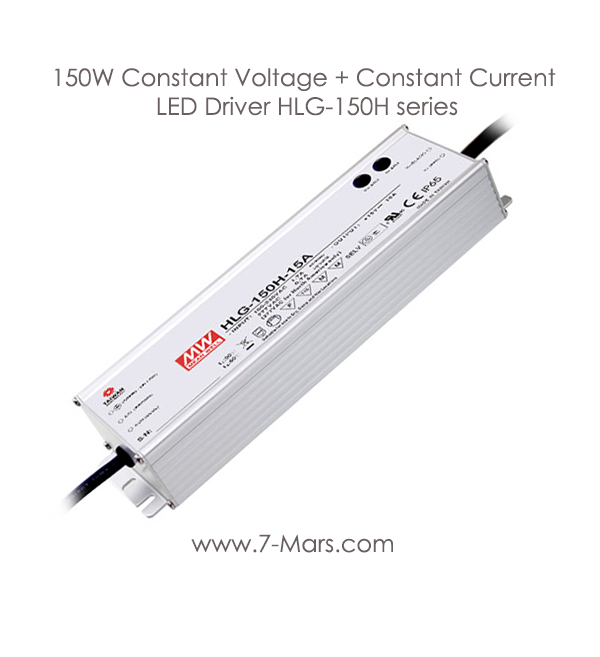

150W Constant Voltage + Constant Current LED Driver HLG-150H series

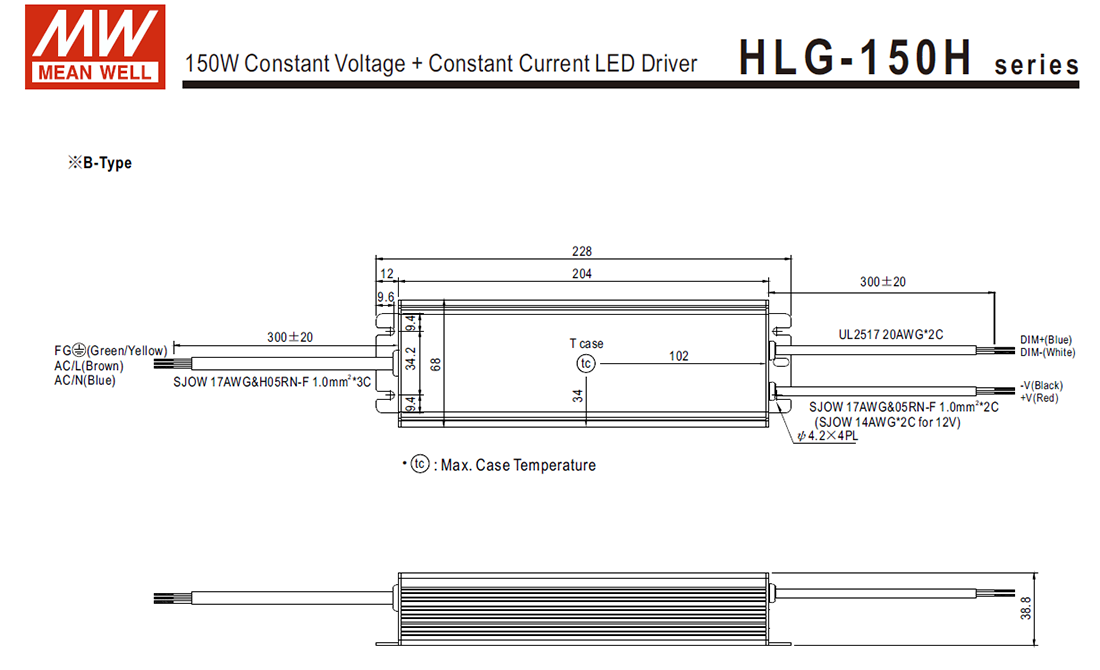

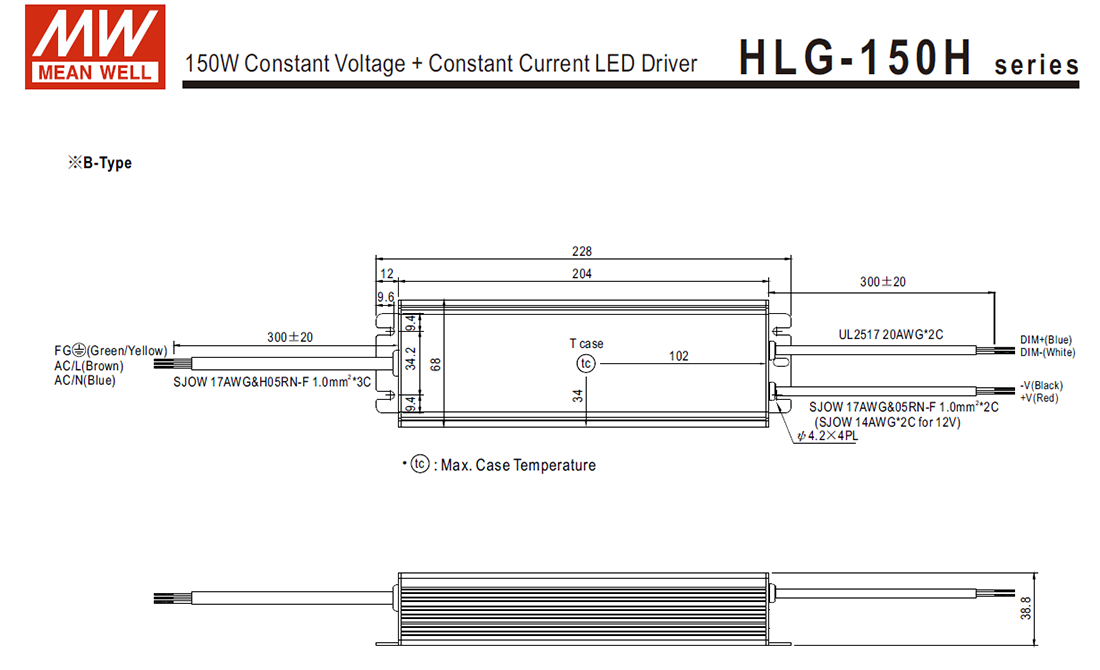

*Type B IP67 3 in 1 dimming function 1-10VDC 10V PWM signal and resistance) / Note : In Stock  Power Output : 150W. / Voltage : 10 - 20V / Current : 7.5A

Description :

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90 - 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C - +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal designflexibility for LED lighting system.

Feature :

•  Constant current + Constant Voltage mode Output
• Universal AC. Input / Full range
• Metal housing Class I Design
• Built-in active PFC. Function
• IP65 or 67 rating for Indoor or Out Door Installation
•  Function Option : Output adjustable via Potentionmeter 3in1 Dimming
•  Suitable for LED related for fixture or appliance ( Such as LED Decoretion or Advertisement devices )
•  90% Full load Brun - in Test
• Typecal lifetime 62000hrs.
•  7Year warranty

Application :

• LED Street light
• LED High-Bay Light
• Packing space lighting
• LED Fishing lamp
• LED Green house light
• Type "HL" Light for Use in Class I Division 2 hazardous (Classified) Location

MOQ. 1Ea. / 12Ea. 14.8kgs. 0.8CUFT.
