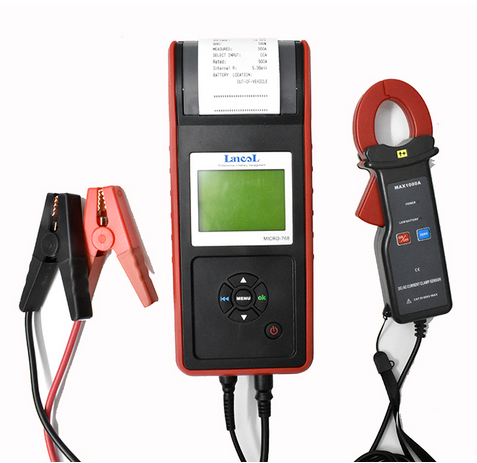

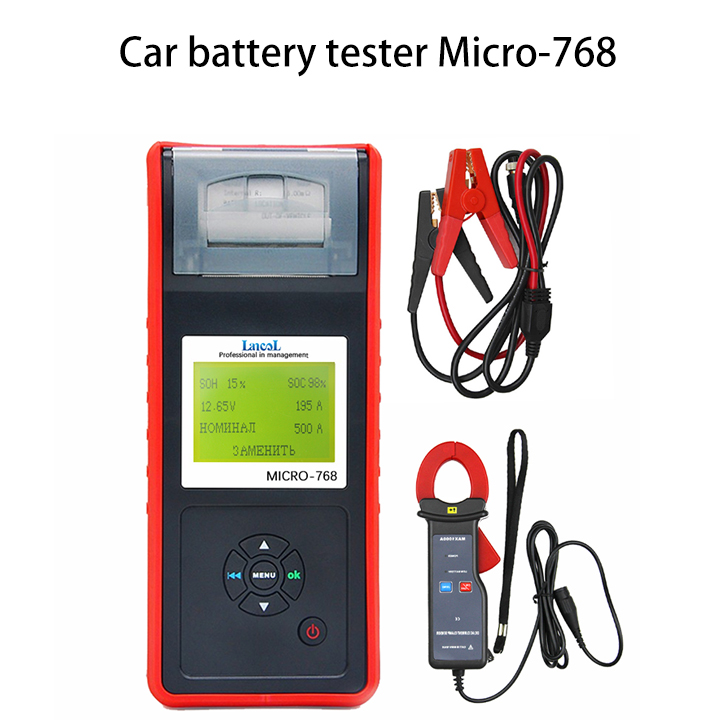

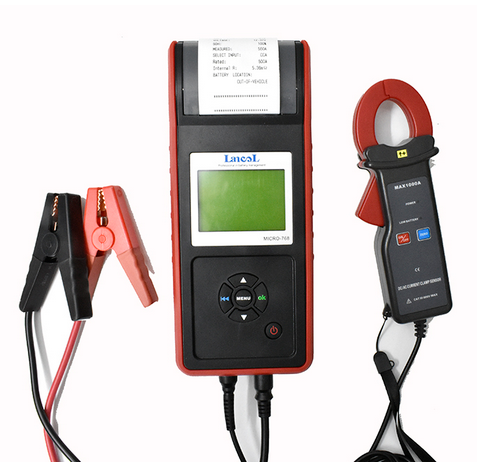

MICRO-768A Professional Car Battery Tester with Printer

 MICRO-768A  VDO. Guide

MICRO-768A  Description

• Test range: CCA100-2000, 30-200Ah
• Voltage Measure Range: 2.0-30VDC
• Test result: SOH,SOC,CCA Value,IR,Conductance Value and starting & charging system, etc.
• Test battery type: All automotive cranking lead acid battery, including ordinary lead acid battery, EFB, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
• Test standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB
• Temperature Measure Range: -18°C - +70°C
• Cable Length: 120cm (3M optional)
• Housing Material: Acid-resistant ABS plastic

Product Features:

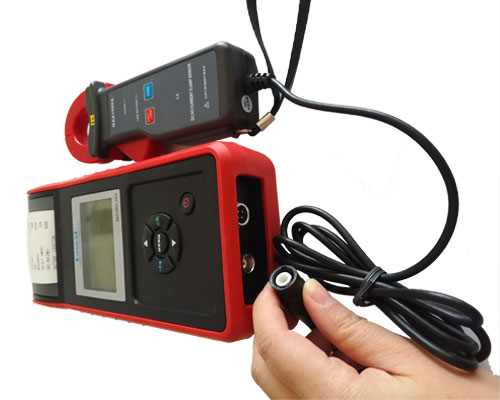

This Car Battery Tester with Built-in Printer  has a printer inside that can print out testing results directly. It can detect bad cell battery, also it has common additional functions, such as voltmeter, ammeter, thermometer, even as standby power for ECU. Polarity reverse connection protection will not damage the tester or affect the vehicle and battery.

Car Battery Testing :

Mainly for analyzing automotive battery health status to calculate the actual cold-start capability of the battery to determine the degree of aging batteries, provides reliable analytical basis for the automotive battery testing and maintenance. When the battery aging, can tell the owners to replace the battery in advance.

Auto Starter System Testing :

Mainly for testing and analyzing automotive starter motors, detecting the actual required starter motor starting current and starting voltage, which can determine whether the starter motor is normal. If the starter motor is not normal, it may have the following causes: the lubrication system failure, resulting in increased torque load start; car starter motor rotor sweep chamber, resulting in increased friction which make the starter motor itself.

 Function Test

Vehicle Charging System Testing :

Mainly for testing and analysis vehicle charging systems, including generators, rectifiers, rectifier diodes, etc., Through testing, we can know whether the generator output voltage , rectifier diodes, charging current is normal. If the generator output voltage or current is not normal or rectifier diode partially damaged, it will make the battery charge always in overcharge or dissatisfaction state, causing rapid damage to the battery, also make other load electrical life shortened.

Other additional features :

View test results, print the test results, voltmeter, ammeter, thermometer and temperature compensation, temperature unit selection, QC mode, the license plate number of the input feature set, language selection, date and time formatting, date and time adjustment The user profile settings, display backlight brightness adjustment, sharpness adjustment print, standby power function.

Three language versions

 Support Multiple language

1. Mainland Version: Chinese Simple, English, Russian, Japanese.

2. Europe and America Version:English, French, Spanish, Italian, German.

3. Korean Version: Korean, English.

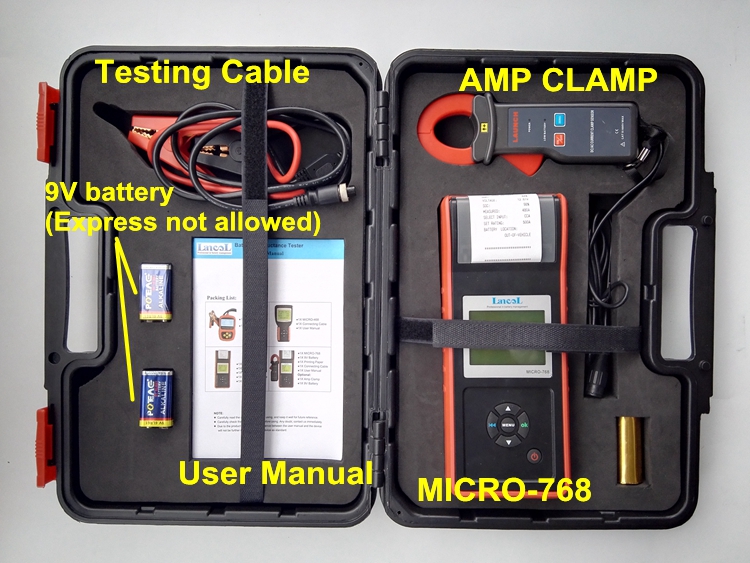

MICRO-768A  Packing list

MICRO-768A  Packing Set.

1.  MICRO-768 battery tester                      1PC

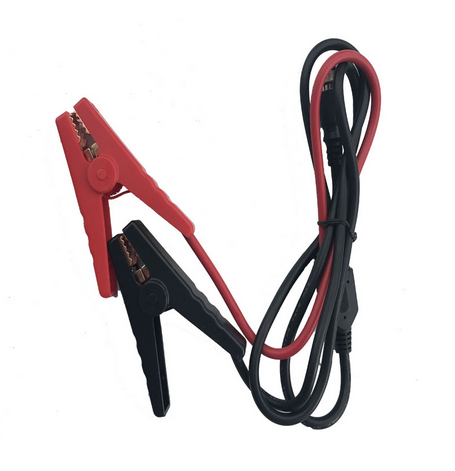

2. Connecting cable                                 1PC

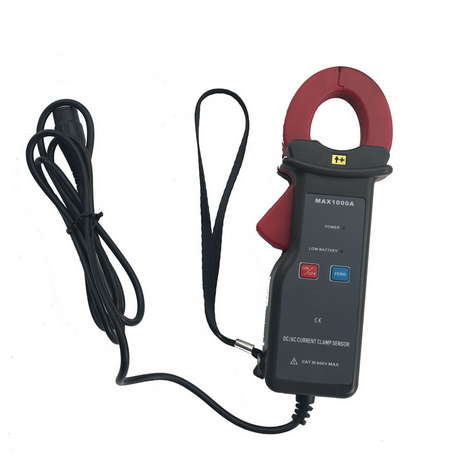

3. Amp Clamp                                         1PC
4. Printing Paper                                      1PC
5. Manual                                               1PC
6. Carry case                                          1PC
