DROII-2L2

SKU : DROII-2L2

Price

10.00 USD

Quantity to buy
Total 10.00 USD

Do not have enough stock

Out of stock

Linear Scale & DRO

Features :

  1. DROII-2M --> For 2 axis milling machine, metal case
  2. DROII-2 --> For 2 axis lathe machine, metal case
  3. DROII-2L2--> For 3 axis lathe machine, metal case
  4. DROII-2G--> For 2 axis grinding machine, metal case
  5. DROII-3M --> For 3 axis milling machine, metal case
  6. DROII-3E--> For 3 axis EDM machine, metal case

Characteristics -Advanced electronic technology and personality design -Rapid response speed and powerful functions -Can directly calculate the sine, cosine and trigonometric functions in the meter -Solid and durable cover in power and signal is very strong -High quality and suitable panel, which simple and convenient for exchange

Order tracking

           Technical Parameters :

  1. Volatges: AC 85V-260V 50Hz-60Hz -Power loss: 25VA
  2. Working temperature: 0°C~45° C
  3. Storage temperature: -30°C~70°C
  4. Relative humidity: <90%(20= 5° C)
  5. Weight: 3.2kg
  6. Coordinate: Two-coordinates & Three-coordinates
  7. Display: 7 bit display data with sign, information window adopts 8 bit symbol output model
  8. Frequency: Multiplication: 4* -Output signal of display counter: TTL Square wave
  9. Multiplying power of input signal: >100kHz
  10. Length resolution: 5u M, 10 M
  11. Operating keyboard: Enclosed & film, slight-touch keyboard

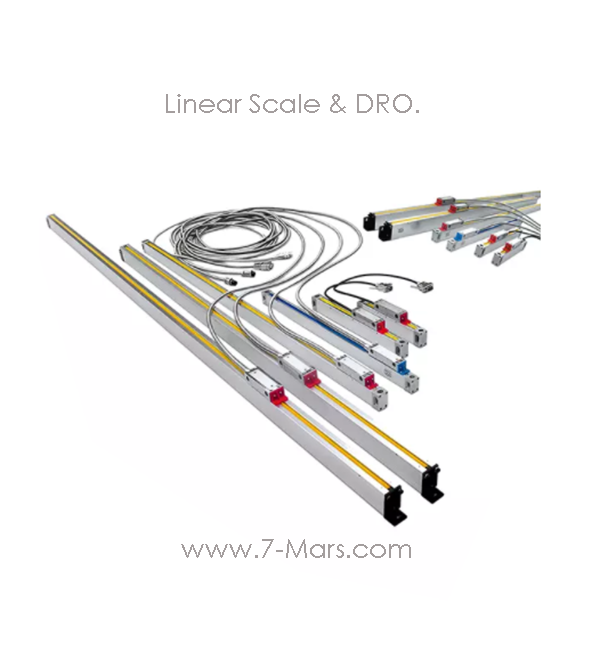

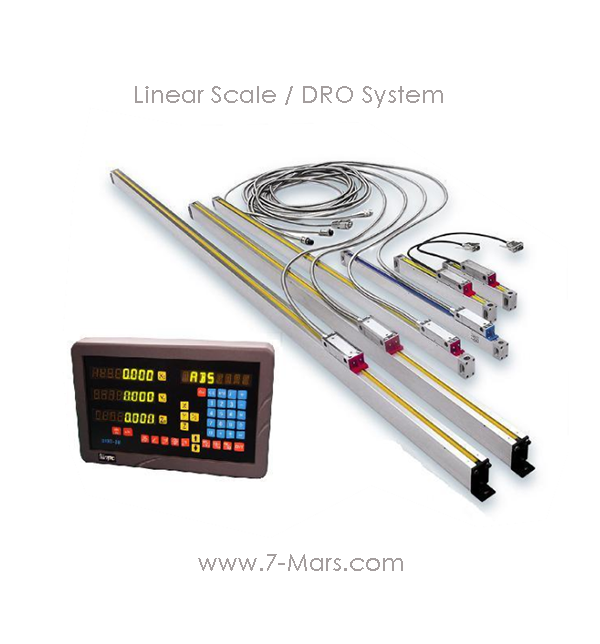

            Linear Scale Series :

  1. Optical grating distance: 0.02mm -Power supply: +5V
  2. Output Signal: TTL, RS422,
  3. 1Vpp -Current: 50mA (accuracy: + 3u M, Su M, + 100 M)
  4. Scale type: JCXFS, JCXF, JCXE, JCXK, JCXG, JCXGL
  5. Resolution: 0.1um, 0.2um, 0.5um, 5um, 10um
  6. Plug connector: DIN7, DIN9, D-SUB9, other non-standard plug connectors
  7. Travel: 25mm-6000mm -Accuracy: Normal accuracy, high accuracy
  8. Used on various machine tools and high precision measuring machines including profile projector, Vision measuring machine, tool maker's microscope etc. Also can be used to upgrade old machintools.

             Application :

DRO Linear scale when used in conjunction with our Counter is designed for manual machine tools or other equipment having linear movements, for example cut off saws.

Alternatively the scale output can be used for automatic positioning control of machine tools or similar equipment via CNC or PLC units.

The scales may also be fitted to co-ordinate measurement or other measurement equipment used for high accuracy inspection & measurement

Our company is the earliest national professional producer of optical grating sensors in China and offers a comprehensive range of products; We are able to quote on special scales on request.

Brief introduction to product classification The optical grating sensor linear scales manufactured by us are divided into two types, open and closed type. The open type is high precision and is designated JCT, the scale output wave is sine wave, they are mainly used in digital measurement equipment and offer a highest resolution of 0.1um.

The closed type is mainly-used in conjunction with our DRO counters on machine tools and similar equipment, these scales are designated JCX and have a scale output is square wave. (TTL or RS422), these scales are divided into groups determined by measurement length and accuracy/resolution as shown in the table below.

A complete range of accessories is provided to facilitate installation.
