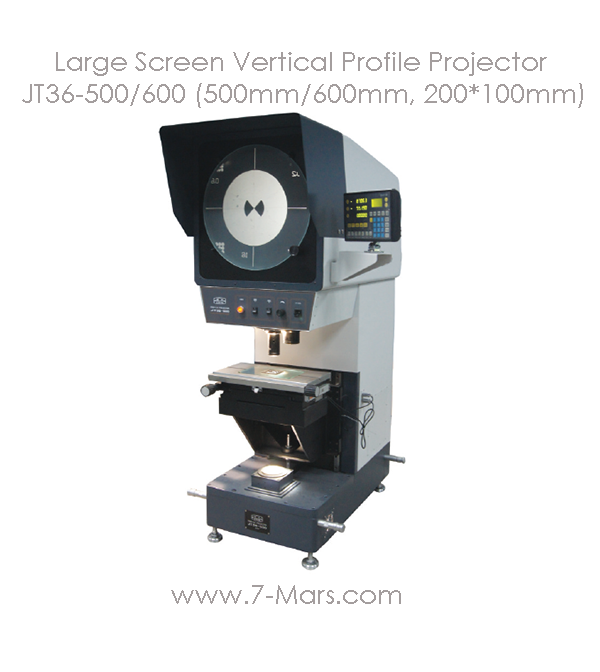

Large Screen Vertical Profile Projector ( 500mm/500mm, 200*100mm )

Features:

JT36φ 500 Vertical Projector

JT36φ 600 Vertical Projector

The projection screen of the instrument is vertically installed, convenient for the user to observe.

The standard configurations of the instrument are 10× Objectives, And the 5× Objectives, 20× Objectives, 50× Objectives, 100× Objectives, can be selected according to user's requirement.

Large worktable can be customized according to user's requirements.

Order tracking

              Specification and Parameter :

  1. Projection screen (JT36-500):Screen diameter(mm): φ 500 Rotation range: 0° ~360° Resolution of the rotary angle: 1 Accuracy of the rotary angle: 6
  2. Projection screen (JT36-600): Screen diameter(mm): φ 600 Rotation range: 0° ~360° Resolution of the rotary angle: 1Accuracy of the rotary angle: 6
  3. Objective (JT36-500) Objective Magnification: 5× , 10× , 20× , 50× , 100× Object Visual Field: φ 100mm, φ 50mm, φ 25mm, φ 10mm, φ 5mm Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm
  4. Objective (JT36-600) Objective Magnification: 5× , 10× , 20× , 50× , 100× Object Visual Field: φ 120mm, φ 60mm, φ 30mm, φ 12mm, φ 6mm Object Working Distance: 102mm, 77mm, 87mm, 76.6mm, 49mm
  5. Worktable: Worktable area(mm): 500× 260 Load capacity of the worktable: ≤ 10 Measuning range(mm): X-coordinate200, Resolution 0.001
    Y-coordinate100, Resolution 0.001 Z-shaft(Focusing): 80
  6. Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M) Large worktable: Worktable area(mm): 600× 360 Load capacity of the worktable: ≤ 5
  7. Measuning range(mm): X-coordinate300, Resolution 0.001 Y-coordinate200, Resolution 0.00 Z-shaft(Focusing): 80
  8. Accuracy of the instrument: (4+40L)μ M, of which, L = length of the workpiece measured ( unit: M)
  9. Lighting source: Transmission lighting: 12V 150W Halogen tungsten lamp Reflecting lighting: 12V 150W Halogen tungsten lamp
  10. Overall sizes of the instrument (mm): 1420 × 1300× 1940 Mainframe weight(kg): JT36(500): 500, JT36(600)550
  11. Remarks on the power source: 220V 50Hz Room temperature: 20° C± 5° C Relative humidity: Not more than 60%

           JT36  Referance Model :
