Our first WIFI DMX lighting controller

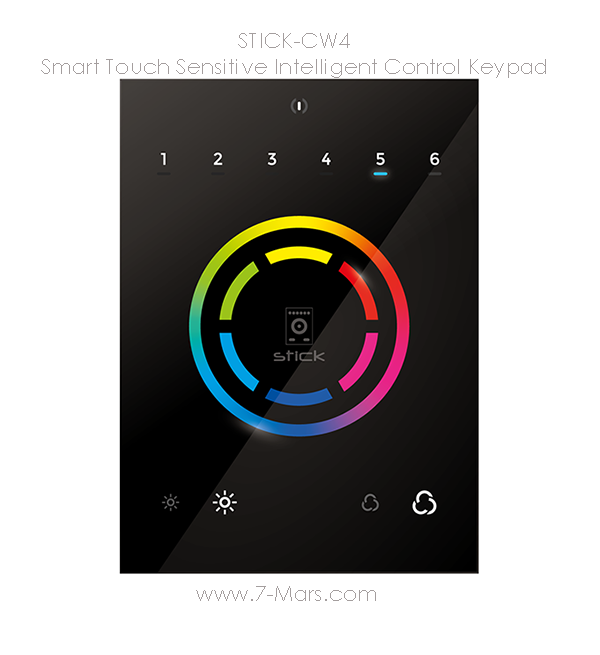

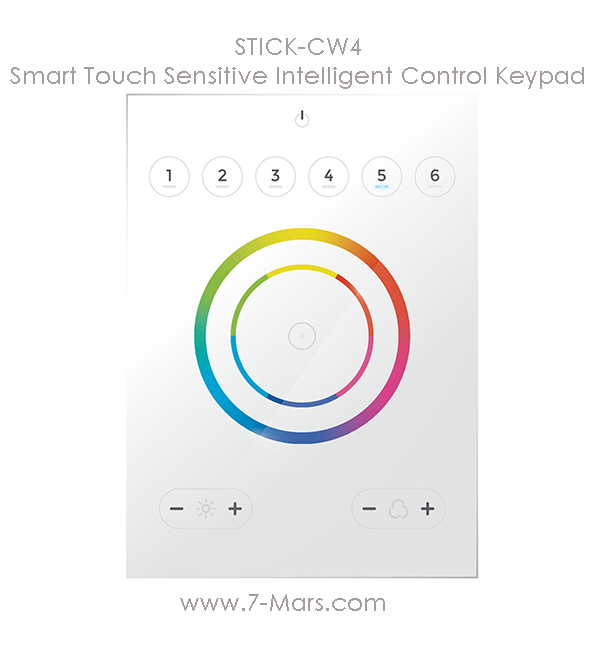

The STICK-CW4 programmable lighting controller, for RGB and RGBW lighting, has been designed around a touch sensitive color wheel.
The controller is USB or WiFi programmable from a PC or Mac using the ESA2 or ESA Pro 2 software. It is also possible to program it over WiFi using the on-site programming app Arcolis.
Up to 36 scenes can be stored within the controller and directly recalled via six touch sensitive scene buttons. A button located in the center of the color wheel can be used to jump between scenes or reset a color change.
Quick Detail :
Input Power 5-15V DC 0.6A / Output Protocol DMX512 (x2) / Programmability PC, Mac / Available Colors Black / Connections USB, 8 dry / contact ports, open / drain ouput (for relay) / Memory In-built flash / Temperature : -10 °C - 45 °C / Battery : LIR1220 / Mounting Single or double-gang / wall socket
Dimentions 146x106x11mm / Weight 200g / Standards EC, EMC, ROHS
STICK-CW4 Version & Color :
Overview :
This DMX controller is aimed at architectural lighting installations requiring an advanced level of programming (color changing effects, specific colors etc). The controller provides a clean and user-friendly panel. Featuring an on/ off button, 6 scene buttons and a color wheel, the controller is ideal for hotels, homes and
public environments. With 1024 DMX channels, Wi-Fi for remote network control and scene calendar triggers, the CW4 model features many advanced features. USB programmable from a PC or Mac, up to 36 scenes can be stored within the controller and directly recalled via 6 touch sensitive buttons.
Key Features :
- DMX stand alone controller
- Compatible with any DMX fixture or DMX LED driver
- Ready-to-use (pre-loaded with 8 scenes and 170 RGB fixtures)
- Sleek, black glass design which sits 11mm from the wall
- Color palette (can also be used for scene selection)
- 12 touch-sensitive buttons. No mechanical parts
- Touch-sensitive wheel allows for accurate color selection
- Built-in flash memory for storing programs
- Up to 36 dynamic or static scenes
- 1024 DMX channels. Control 340 RGB fixtures
- Clock and calendar with Sunrise/Sunset triggering
- Wi-Fi network communication. Control lighting remotely
- USB connectivity for programming and control
- 8 dry contact trigger ports
- OEM customization of the color palette and logo
- Windows/Mac software to set dynamic colors/effects
