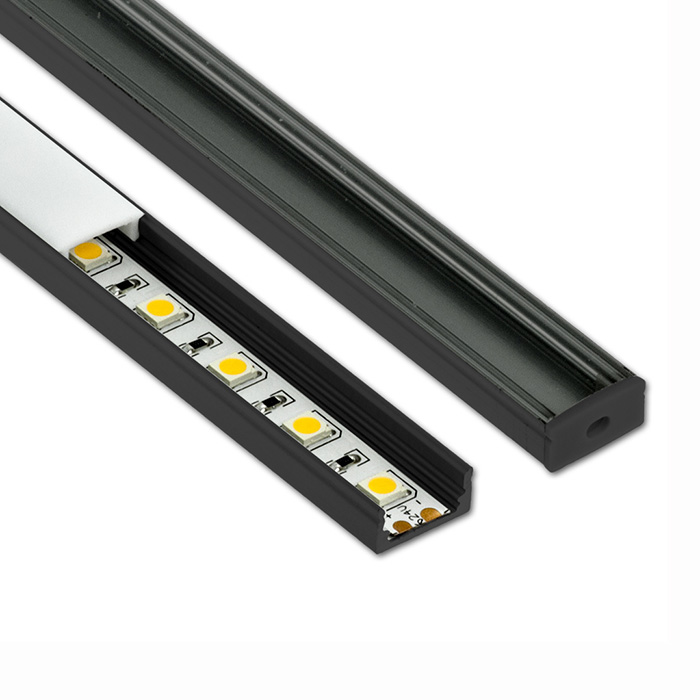

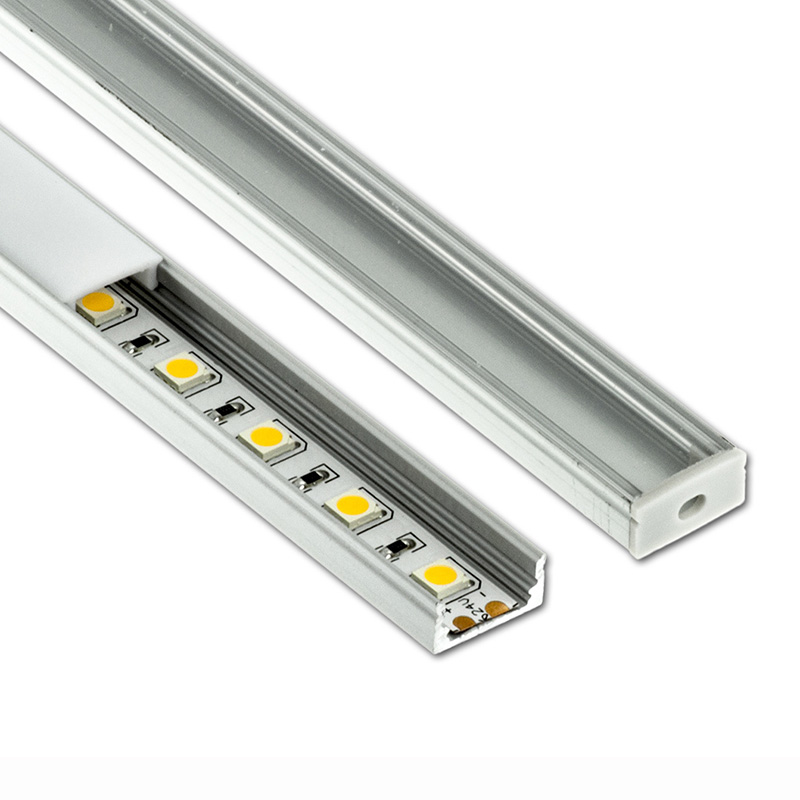

Height 9mm Recessed Extruded Aluminum Channel Profile

Good heatsink For Width 12mm LED Flexible Strip Lights

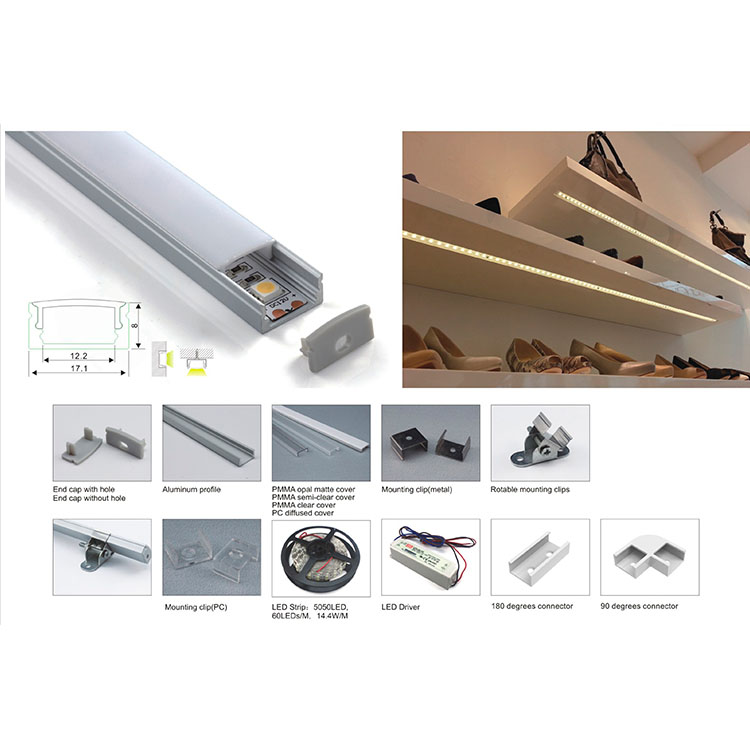

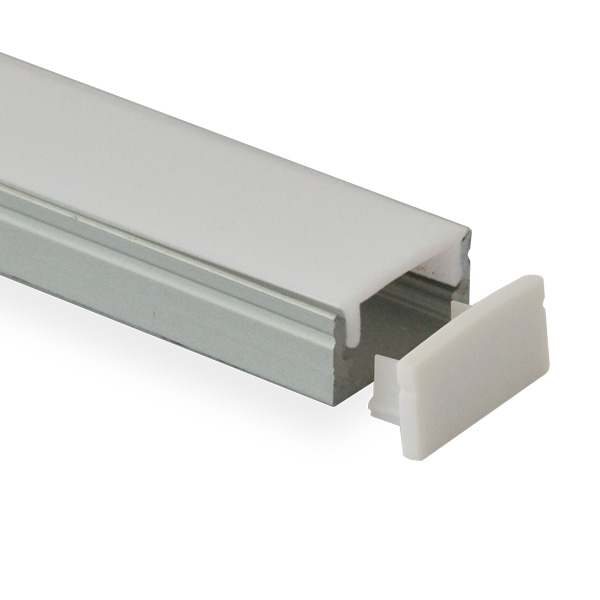

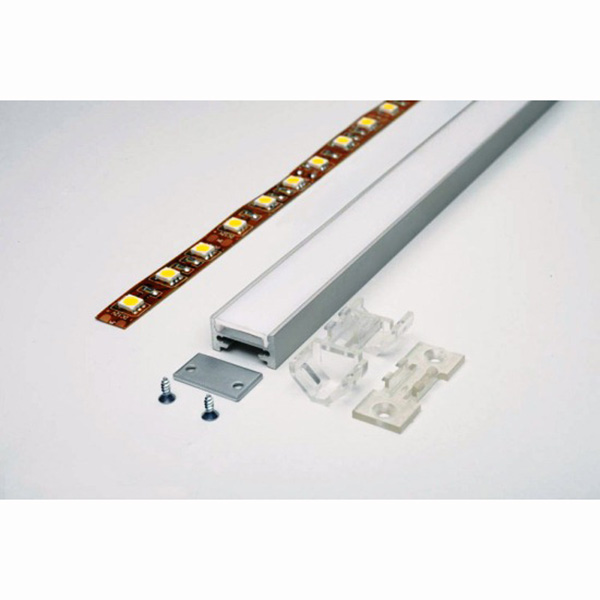

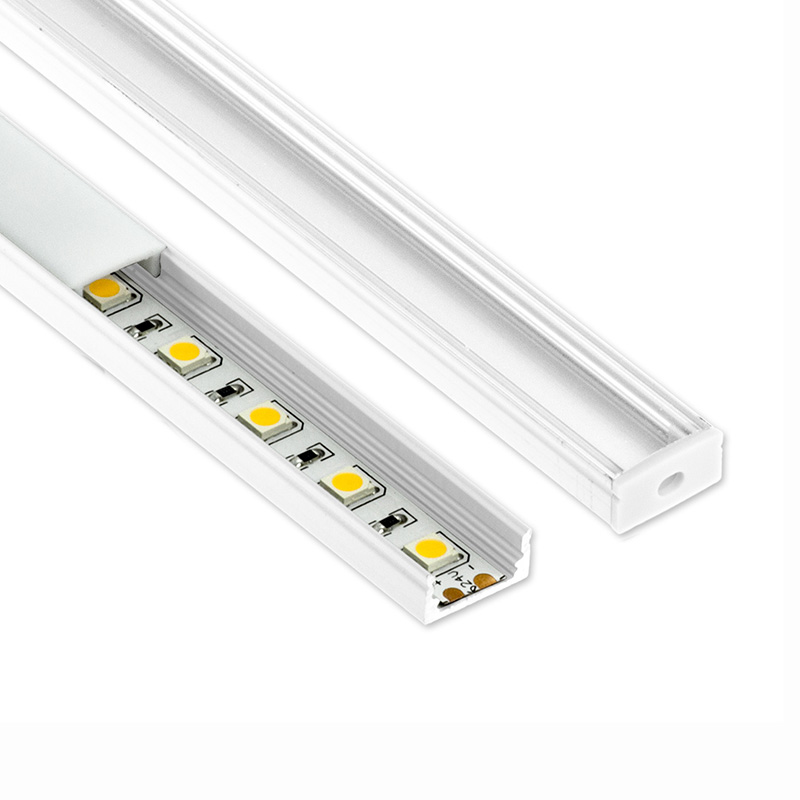

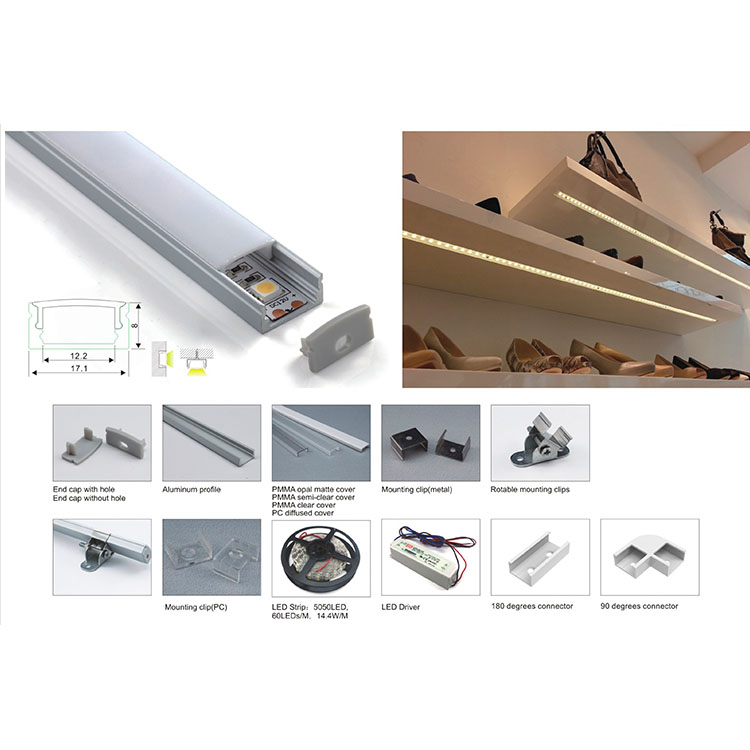

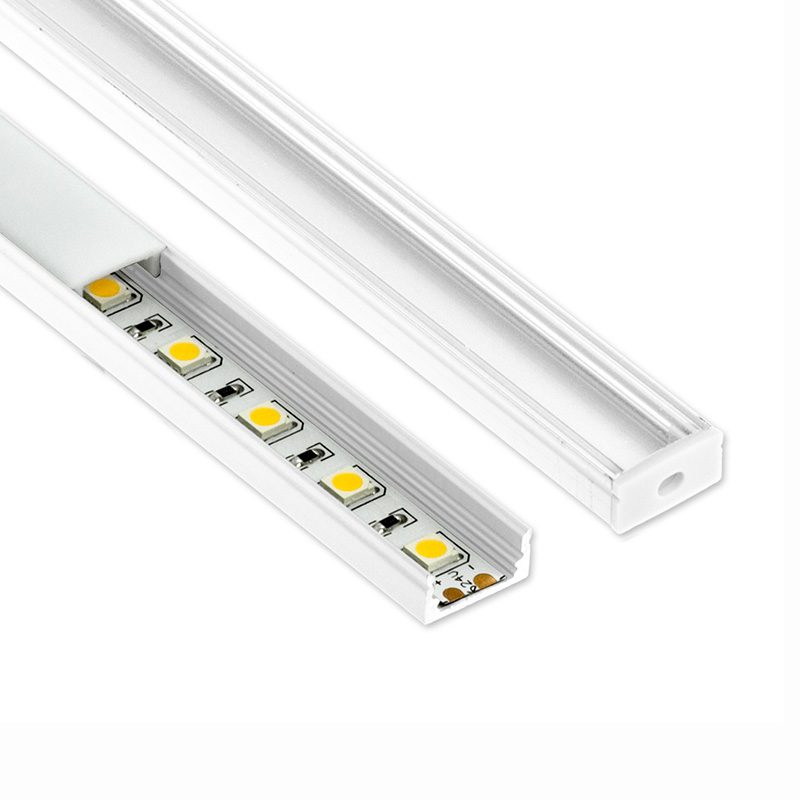

Aluminum Profile BAPL002 is a slim, low-profile, Aluminum profile, channel, extrusion, for High to medium output flexible LED strip lights. Use this for professional LED light installations. LED Aluminum channels act as a heat sink to protect your high CRI LED strips from overheating. Aluminum extrusions for LED strips also waterproof RGB ribbon LED strips in outdoor installations. For added waterproofing use an IP65 or IP67 / IP68 LED Strip. This is the Aluminum Channel comes with one pair of clips, end-caps, and one PC/PMMA lens. Provide 5 kinds of covers: PC and PMMA opal, semi-clear and clear cover.

Remark : Length has 1 meter, 2 meters, 3 meters, please inquire for shipping cost. In case of longer than 1 meter, this price quote. For 1 meter length, and domestic shipping only (or cut to custom length)

Order tracking

Features :

High-quality diffuser, placing/removing from the front on click, For indoor use only
Made from anodizing aluminum
Suitable for flexible 3528/5050/3014/2835/5630/5730/3535SMD flexible led strip lights

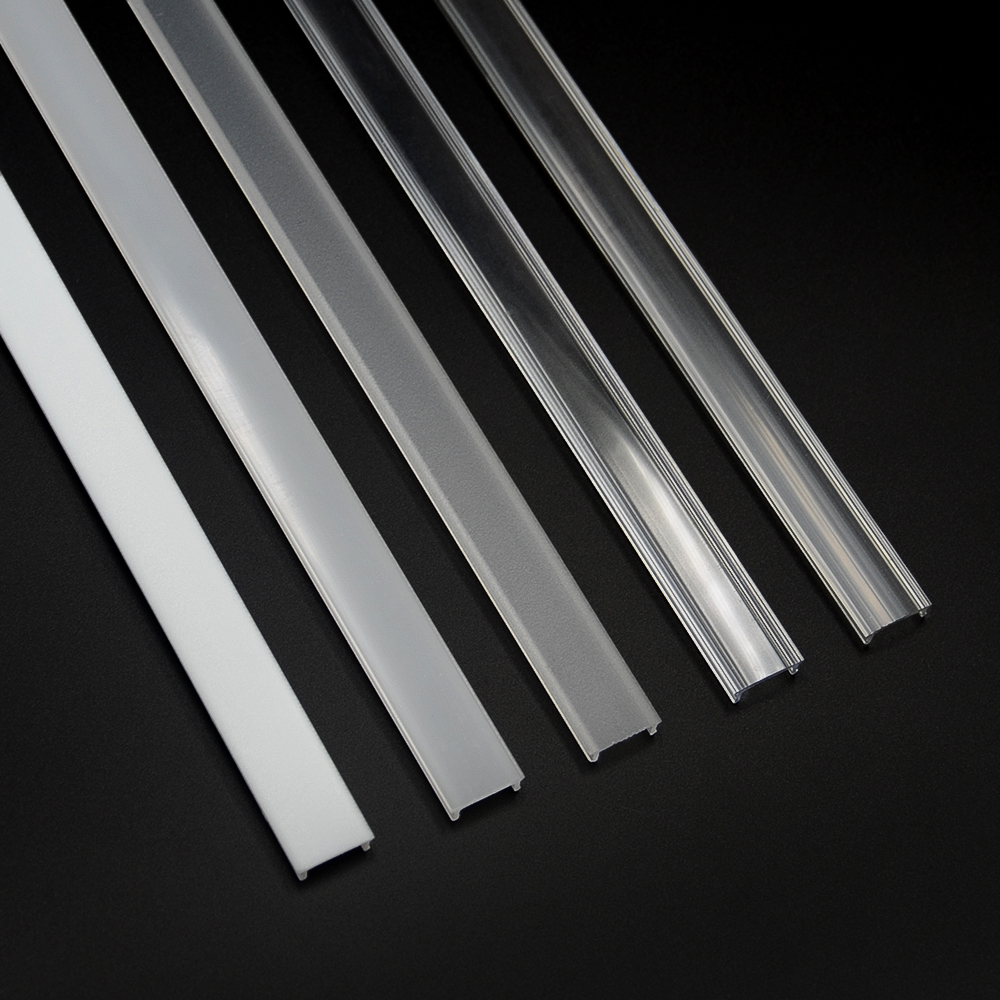

Available with PC/PMMA opal matte diffuser, semi-clear matte diffuser, clear diffuser
Not LED dots show on opal diffuser (high density LED ribbon)
Available length – 1m and 2m(MOQ:10PCS)
UV resistant

Length: 1m(3.28')/2m(6.56')/2.5m(8.2')

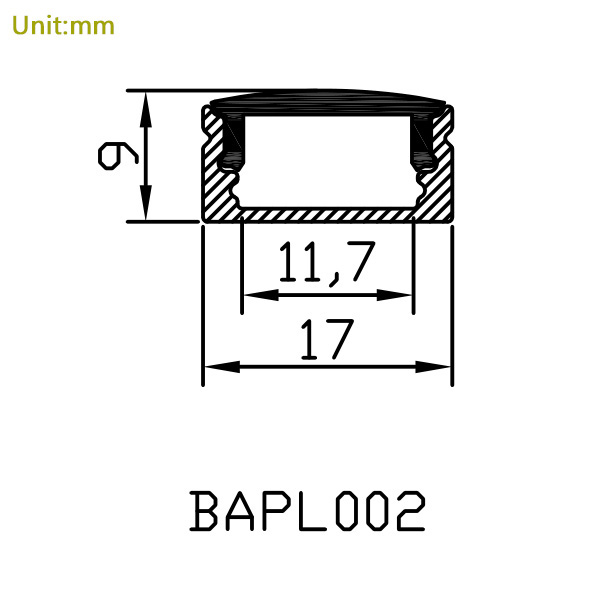

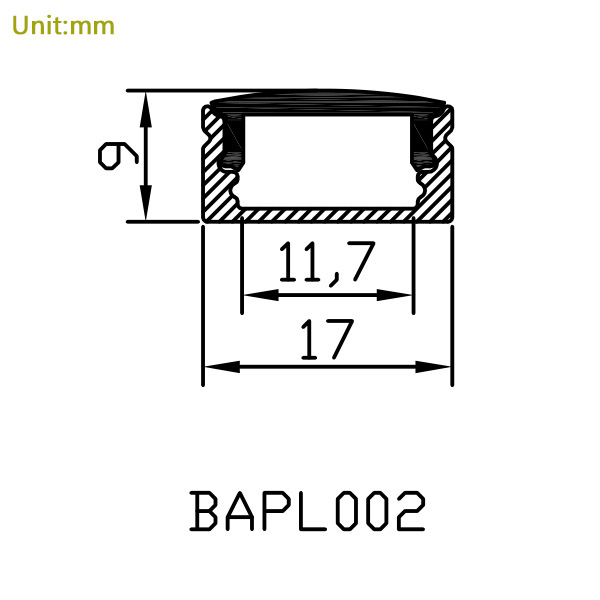

Width: 17mm/0.66"
Height: 9mm/0.35"
Surface process: Anodic oxidation
UV resistant: Yes
Lens: Clear / Semi-clear / opal matte
Diffuser material: PC/PMMA
Material: Aluminum 6063
Channel: White
Inside Width For Max Strip PCB: 0.39" (10mm)
End cape material: Aluminum 1070/ABS
Clips material: PC/SUS304

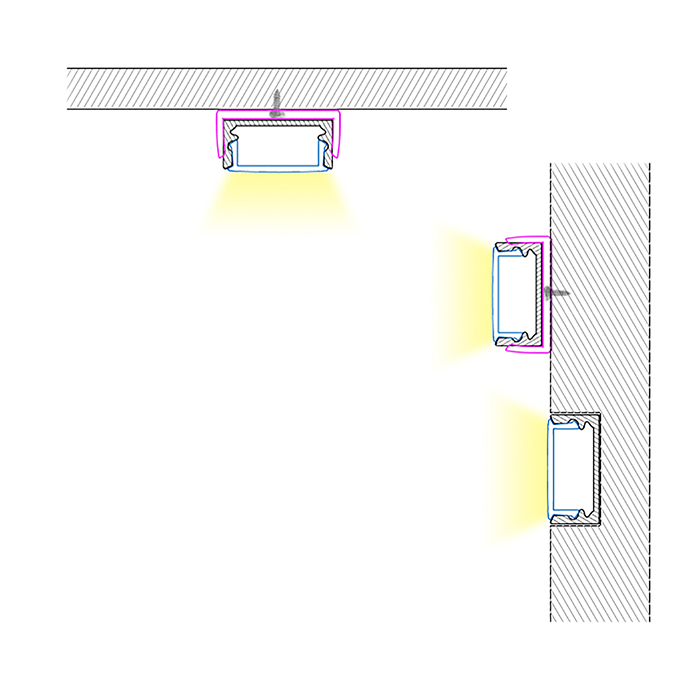

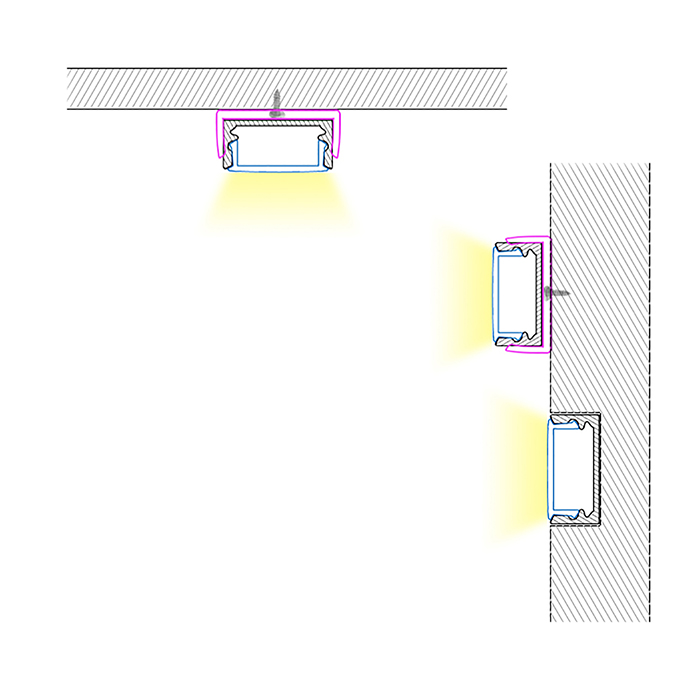

Installation mode: Embedded
Warranty: 3 Years
Weight: 0.5KGs

Membership

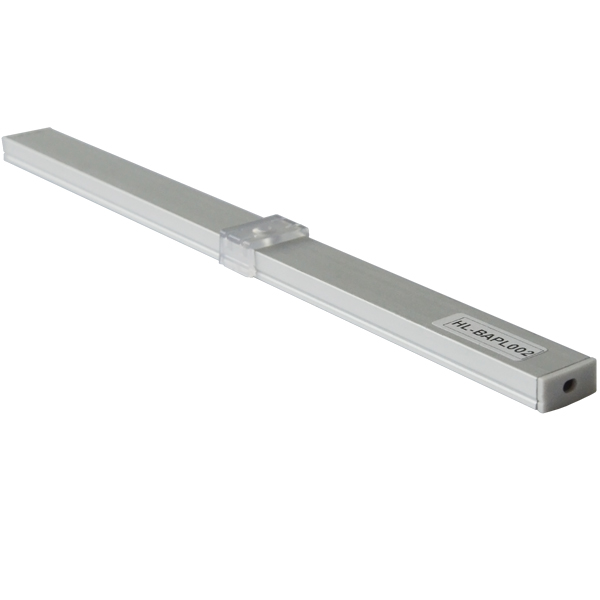

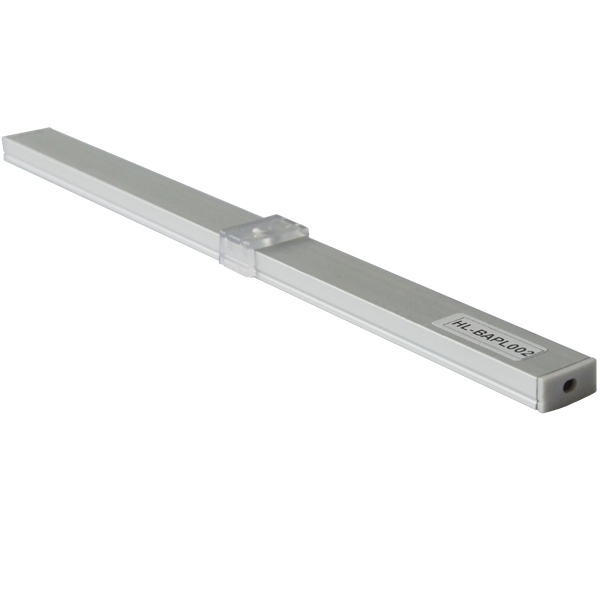

HL-BAPL002
