SKU : ATyS d-1000 A / B6-4P

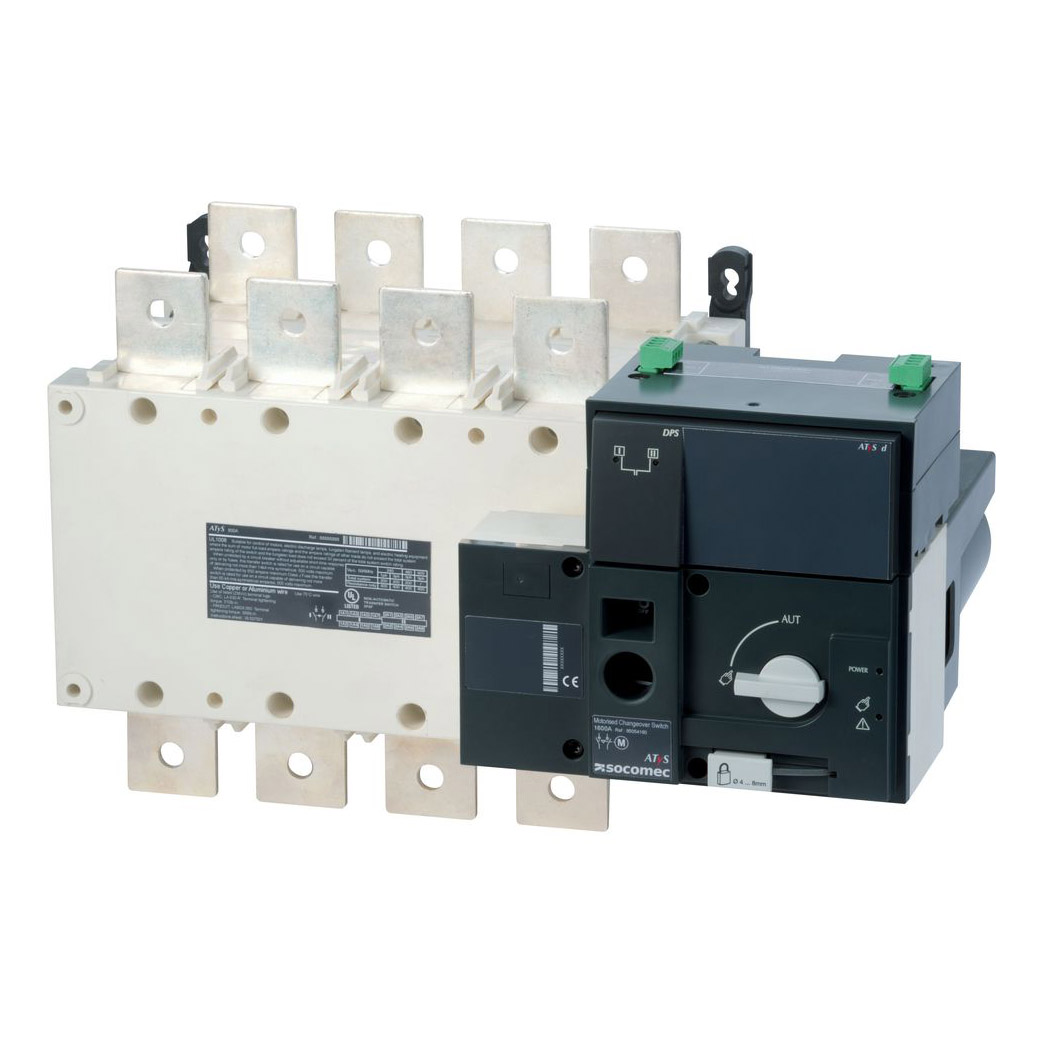

ATyS d Series Remote transfer switches from 125 to 3200 A

CODE : 9533 4100

ATyS d are 3 or 4 pole remotely operated motorised transfer switches with positive break indication. They enable the on-load transfer of two three-phase power supplies via remote volt-free contacts, from either an external automatic controller, using pulse logic, or a switch. They are intended for use in low voltage power systems where interruption of the load supply is acceptable during transfer

Remark :

(1) See “Copper bar connection pieces”

(2) To fully shroud front, rear, top and bottom 4 references required. To shroud front switch top and bottom 2 references required (Whenever a bridging beam is fitted, it is then only possible to fit 3 times the reference for the terminal cover).

(3) Factory mounting only.
