ZVF300-G220/P250T 4M

SKU : ZVF300-G220/P250T 4M

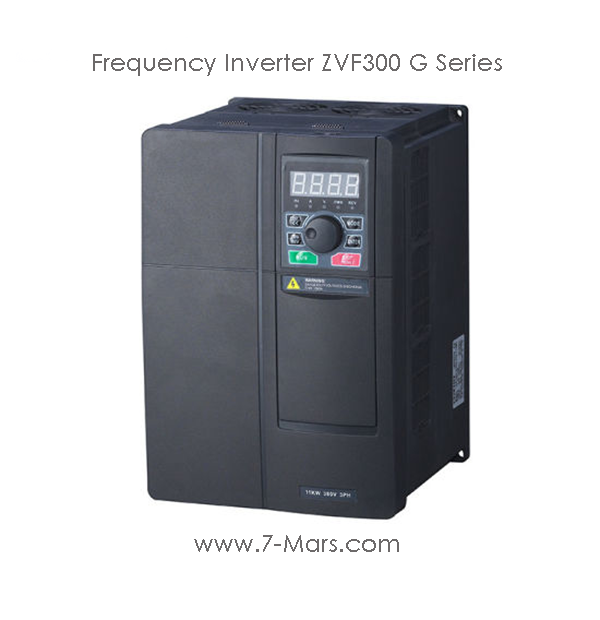

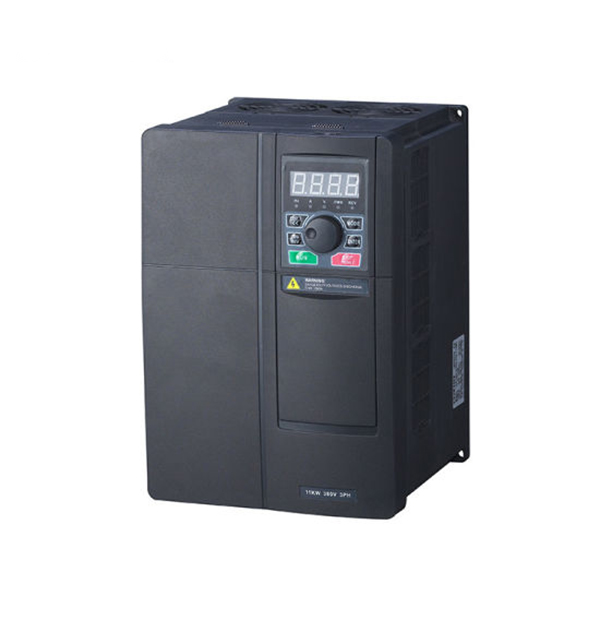

ZVF300 Series inverters  open loop vector inverters

ZVF300 Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors

♦ 1.Output frequency :0-600Hz.

♦ 2.Multiple password protection mode.

♦ 3.Remote control operation keypad, convenient for remote control.

♦ 4.V/F curve &multi-inflection point setting, flexible configuration .

♦ 5.Keyboard parameter copy function. easy to set the parameters for multi-inverters.

♦ 6.Wide industry application. to expand special function according to different industries.

♦ 7.Multiple hardware and software protection and optimized hardware for anti­interference technology.

♦ 8.Multi-step speed and wobble frequency running (external terminal 15 steps speed control).

♦ 9.Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain.

♦ 1 0.Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design .

♦ 11.Output automatic voltage regulation function (AVR).automatically adjust the output pulse width. to eliminate the influence of the grid change on load.

♦ 12.Built-in PIO regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow. and reduce the cost of the control system .

♦ 13.Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
