SFM22580B-1-115V-50Hz
SKU : SFM22580B-1-115V-50Hz
| Price |
45.00 USD 50.00 USD (-10%) |
| Quantity to buy | |
| Total | 45.00 USD |
Do not have enough stock
Out of stock

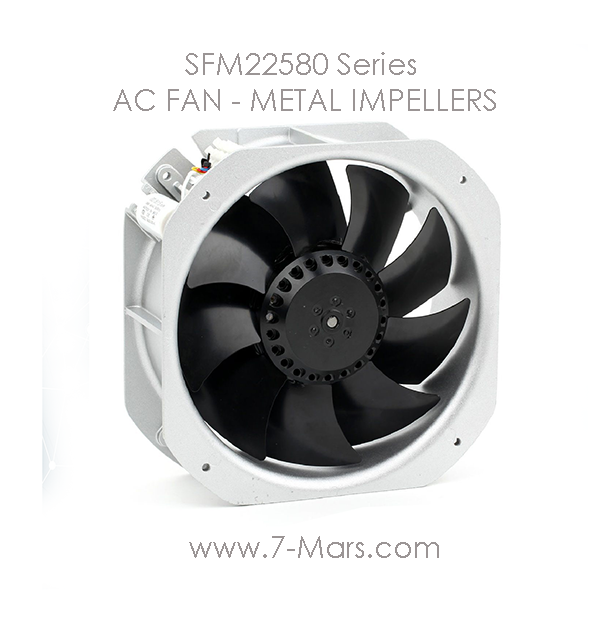

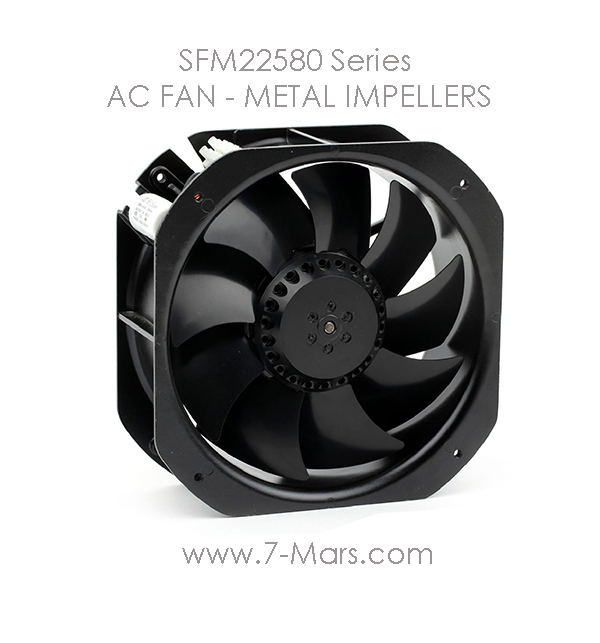

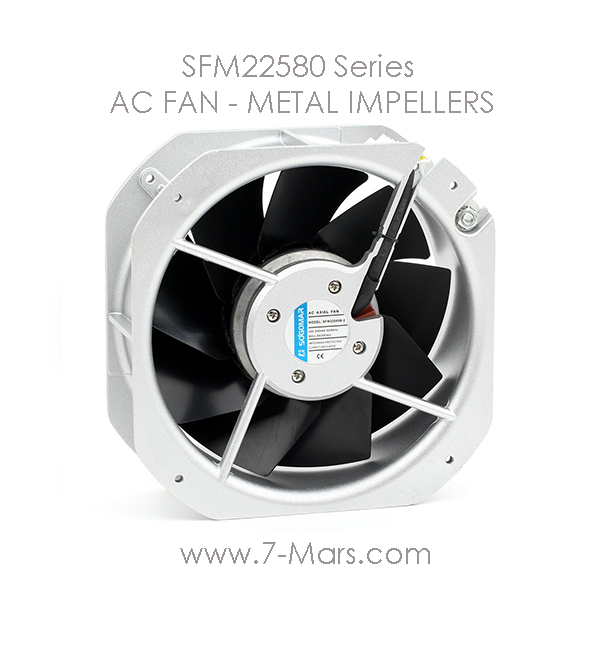

AC FAN - METAL IMPELLERS
Brief description
- SFM22580
- Size: 225x225x80mm
- Voltage: 110-120VAC, 220-240VAC, 380VAC
- Frequency: 50Hz, 60Hz and 50/60Hz
- Bearing: Ball bearing
- Connection: leadwire or terminals
- Material: Alu frame, steel blades, copper coil.
- Color: Black or Silver
- Package: 53.5*27.5*27.5cm,5PCS/Carton,11.6kgs
Order tracking
Information:
- Motor: External rotor motor structure. Impedance protect
- Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
- Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
- Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
- Protection: Motor Internal with automatic recovery thermal protector
- Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
- insulting system: Design according to IEC61858 Grade F
- Protecting Grade: IP44
- Rotation Direction of Blades: CCW seen from the front impellers
- Unit Weight: 2.2kg
