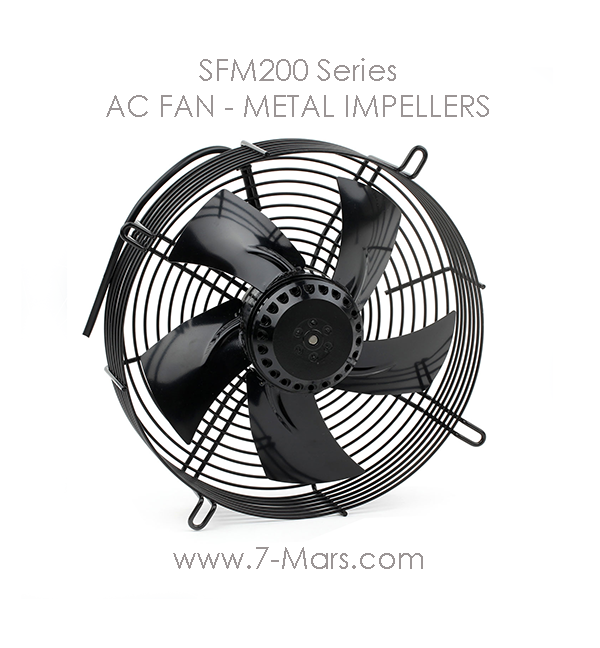

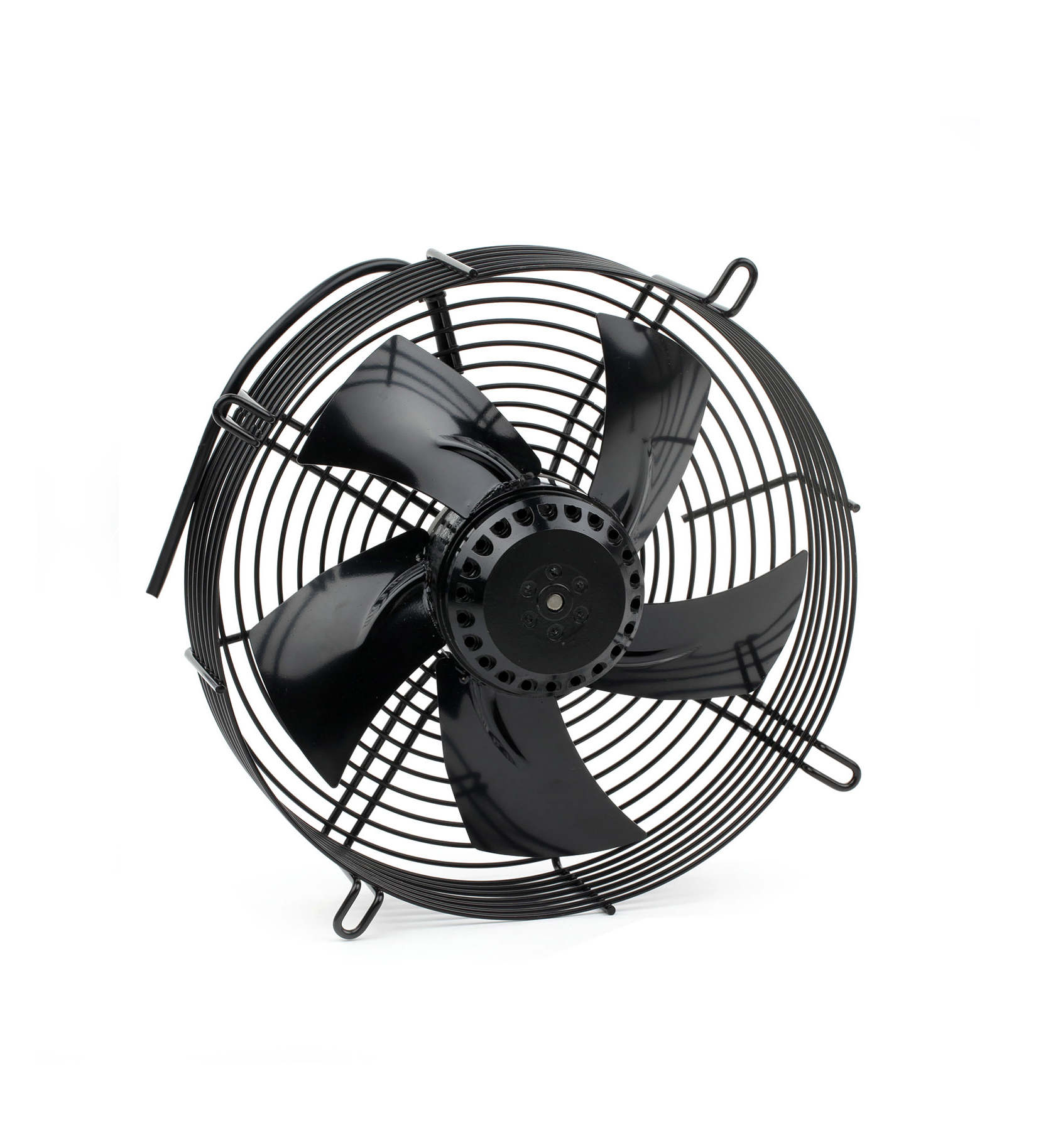

SFM-200 Series AC FAN - METAL IMPELLERS

Brief description

  1. Model NO.: SFM200
  2. Blade Material: Stainless Steel
  3. Electric Current Type: AC
  4. Certification: CE
  5. Bearing: Ball Bearing
  6. Usage: for Refrigerate, for Air Conditioner, for Manufacture
  7. Material: Aluminum Fan
  8. Type: Axial Fan
  9. Mounting: Wall Fan
  10. Warantee: One Year Guarantee Time
  11. Package: 2PC/CTN with Foam Inside, Then Pallet Package
  12. Weight(Kg): 1.7
  13. Specification: diameter 200mm
Order tracking

                   Information:

  1. Motor: Configuration of External rotor motors
  2. Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
  3. Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
  4. Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
  5. Protection: Motor Internal with automatic recovery thermal protector
  6. Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
  7. Insulting system: Design according to IEC61858 Grade F
  8. Protecting Grade: IP54
  9. Unit Weight: 1.7kgs
