SX460
SKU : SX460
| Price |
45.00 USD 55.00 USD (-18%) |
| Quantity to buy | |
| Total | 45.00 USD |
Do not have enough stock
Out of stock

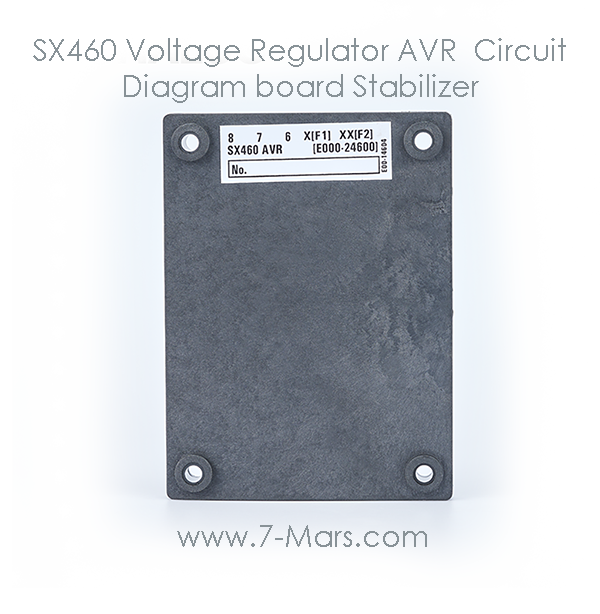

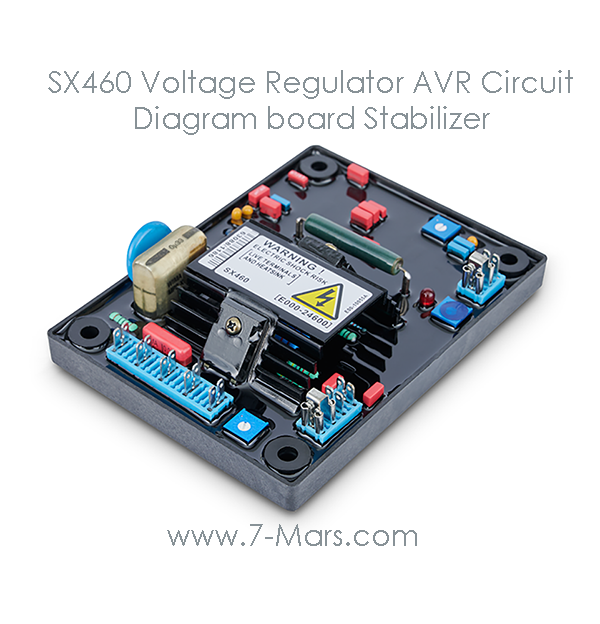

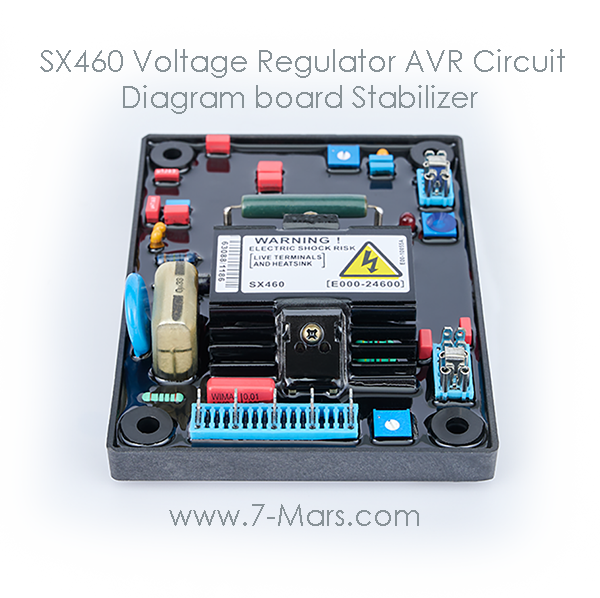

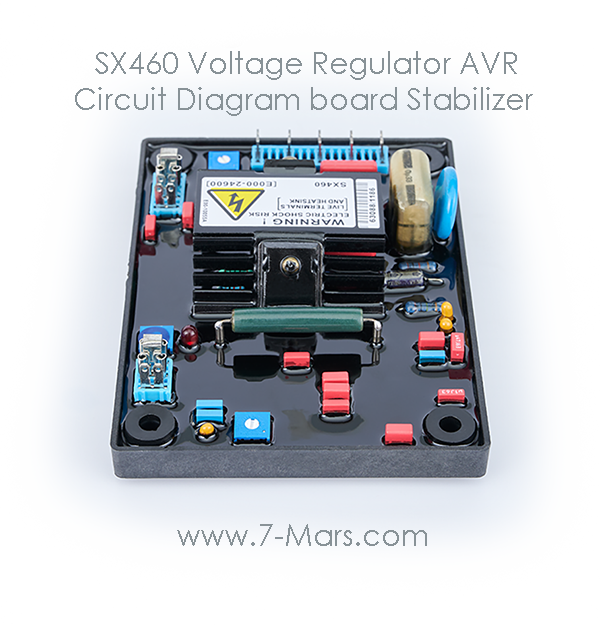

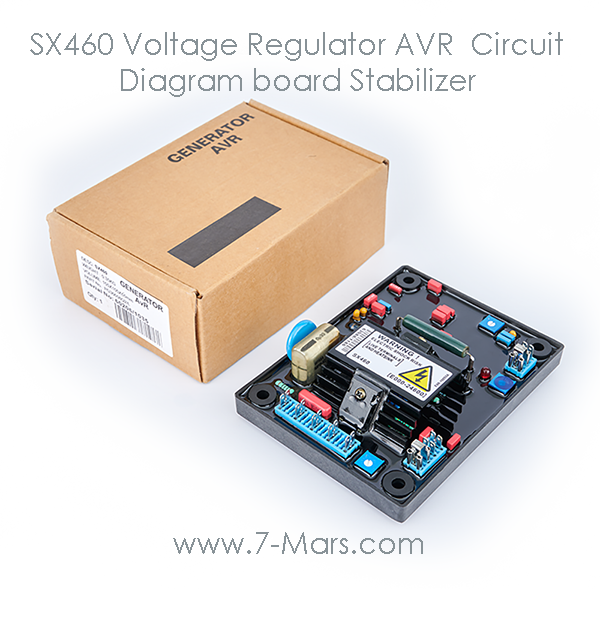

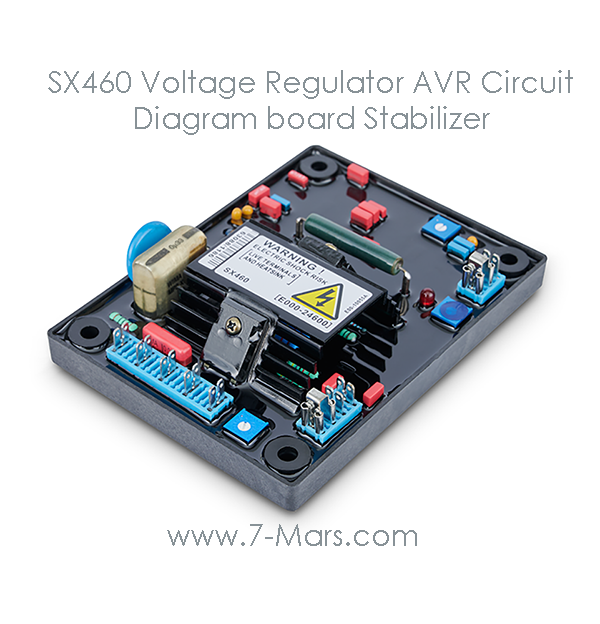

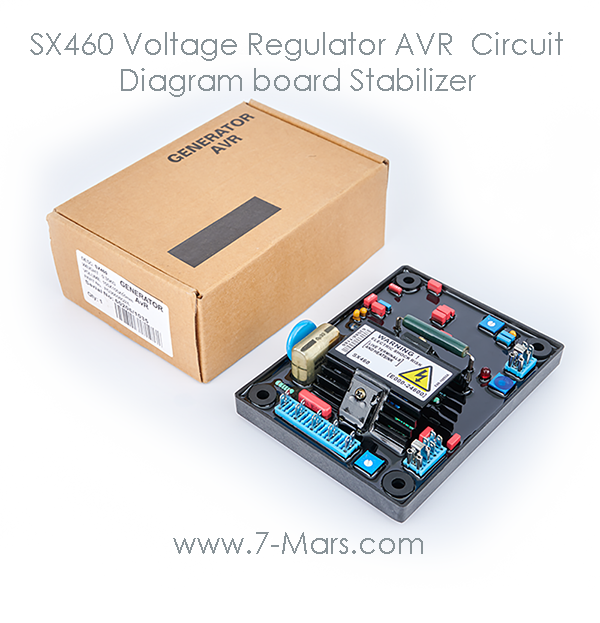

Generator Spare Parts automatic Voltage Regulator AVR Circuit Diagram board Stabilizer
Quick Details :
- Place of Origin : Bangkok Thailand
- Brand Name : Shaluo / Energy Power / OEM.
- Warranty : 1 Year
- Name: Generator AVR.
- Voltage : Max 90V dc at 207V ac input
- Resistance : 15 ohms minimum
- Replaced Brand : Stamford AVR. / OEM.
- Key word : SX460 AVR
- Current Type : AC
- Application : diesel generator
- Phase : Single or Three
- Voltage : 220V or 380V
Generator Universal AVR SX460 For AC Brushless Generator AVR 3 Phases :
Generator Universal AVR SX460 For AC Brushless Generator AVR 3 Phases is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
