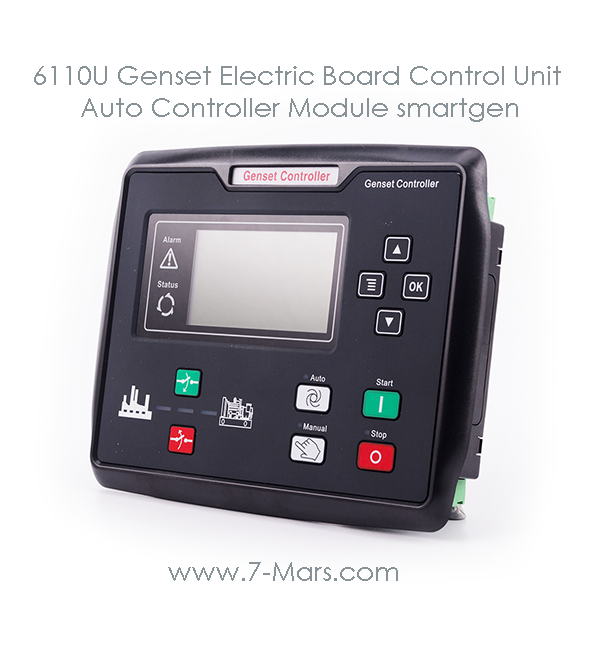

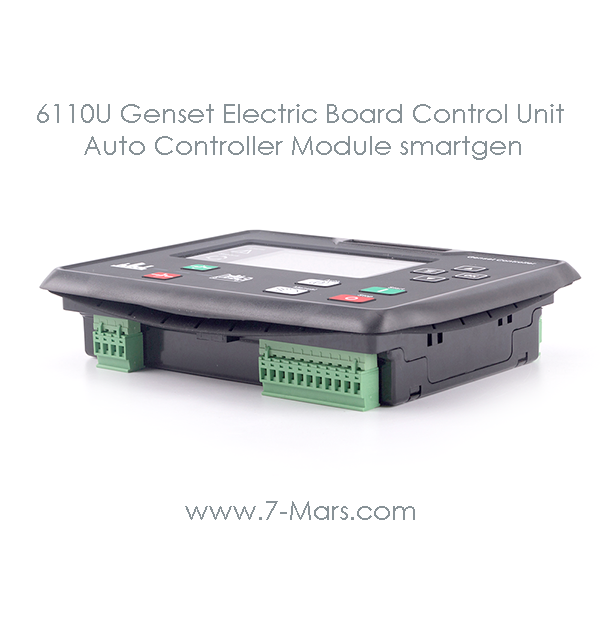

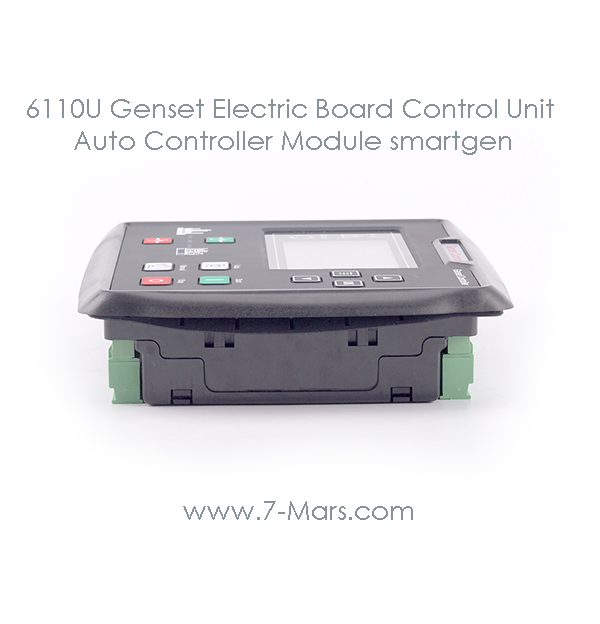

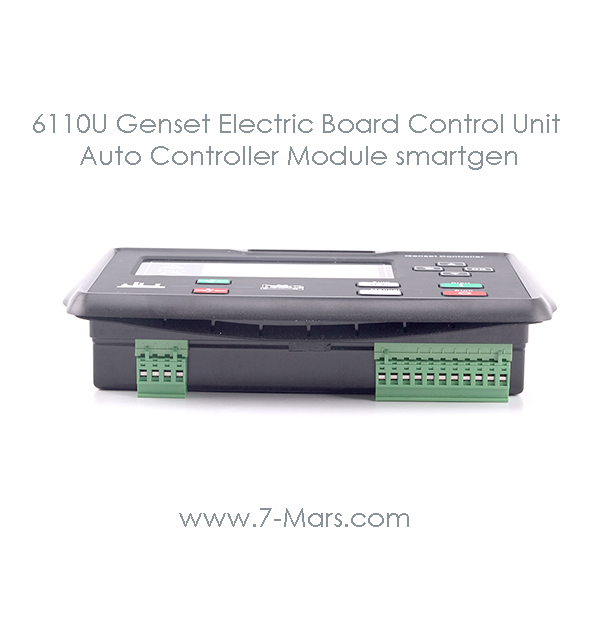

Genset Electric Board Control Unit Start Panel Auto Controller Module smartgen
6110U Genset controller. ATS LCD controller
6100U series power station automation controller integrated digital, intelligent, networked technology, used for a single generator set of automation and monitoring system, realize the generating units of automatic start / stop, measurement data and alarm functions of protection and remote. Controller adopts the large screen liquid crystal display (LCD), a Chinese, English, Spanish and Russian optional interface, simple operation, reliable operation.
RXD6100U series power station automation controller using microprocessor technology, the various parameters of the precision measurement, fixed value adjustment, timing, threshold setting and other functions, all the parameters of the controller can be from the controller front panel adjustment, or the use of PC through the adjustment of programming interface, also can use the PC through RS485 interface adjustment and monitoring. The utility system has the advantages of compact structure, simple connecting line and high reliability, and can be widely used in the automatic system of various types of generating units.
2 performance and features :
- 6100U series has four models:
- 6120U: in the RXD6110U based on the increase of the city's electricity consumption monitoring and municipal electricity / power generation automatic switching control function (AMF), in particular, is applicable to a city one machine automatic system.
- Its main features are as follows:
- O liquid crystal display LCD as a 32x64, with backlight, four kinds of language (Simplified Chinese, English, Spanish and Russian) display with the touch of a button operation;
- The screen saver with hard screen acrylic material, wear resistance and scratch resistance;
- The use of silicone panels and buttons, high and low temperature and strong ability to adapt to the environment;
- The RS485 communication interface, using MODBUS protocol to achieve the "three remote" function;
- It is suitable for three-phase four wire, three-phase three line, second-line single-phase, two-phase three wire (120V/240V) power supply system 50Hz/60Hz;
- The acquisition and display of electricity / power three-phase voltage, three-phase current, frequency and power parameters;
Electric power generation :
- Line voltage Uab, Ubc, Uca line voltage Uab, Ubc, Uca
- Phase voltage Ua, Ub, Uc phase voltage Ua, Ub, Uc
- Frequency Hz frequency / Hz / load / Current IA, IB, IC / Active power kW / Reactive power kVar / Apparent power kVA / Power factor PF / Cumulative power generation kWh
- The mains overvoltage and undervoltage, phase function, power generation with overvoltage, undervoltage, frequency, frequency, flow function under;
- The precision acquisition engine parameters: Temperature WT degrees C/ degrees F at the same time display / Oil pressure kPa/Psi/Bar OP at the same time show
- Fuel level FL unit:% / Speed SPD unit: RPM / Battery voltage VB unit: V / Charger voltage VD unit: V / Timer HC can be accumulated 999999 hours
Cumulative total of 999999 times the maximum number of times - O control protection function: diesel generator automatic start / stop, close brake switch (ATS) and perfect fault protection function;
- O have power shutdown, idle speed control, speed control, preheating control function, and is the relay output;
- O parameter setting function: allows the user to change the setting of the parameters. At the same time, memory in the internal flash memory, isn't lost in the system is out of power, all the parameters of the controller can from the front controller panel adjustment, or use the PC through programming interface to adjust (using SG72 adapter)
- The variety of temperature, pressure, level sensor can be used directly, and can customize the parameters; Multiple successful starting conditions (speed sensor, oil pressure, power) can be selected;
- The power supply of a wide range of VDC (8~35), can adapt to different starting battery voltage;
- O all parameters are used to digitally adjust the, abandoned the conventional potentiometer simulation adjustment method, improves the reliability and stability of the whole machine;
- A rubber sealing rings between the shell and the design the control panel, waterproof performance can reach IP55;

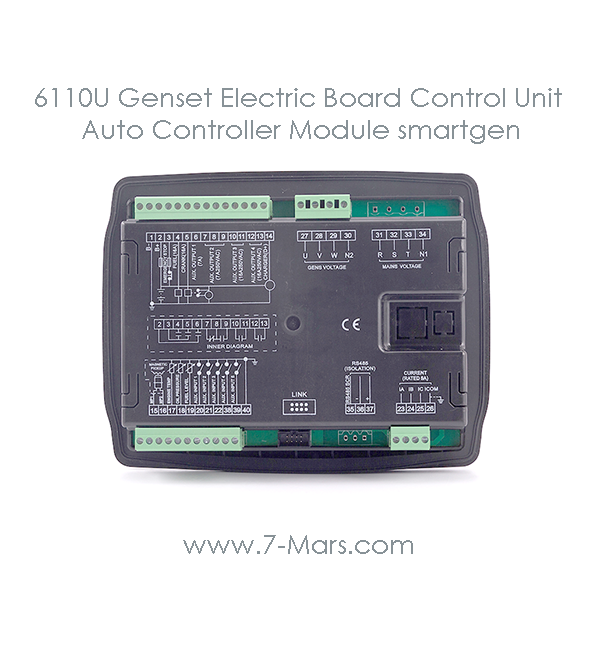

- The controller uses a fixed metal card; O modular structure design, flame retardant ABS shell, pluggable terminal blocks, embedded installation, compact structure and convenient installation.
