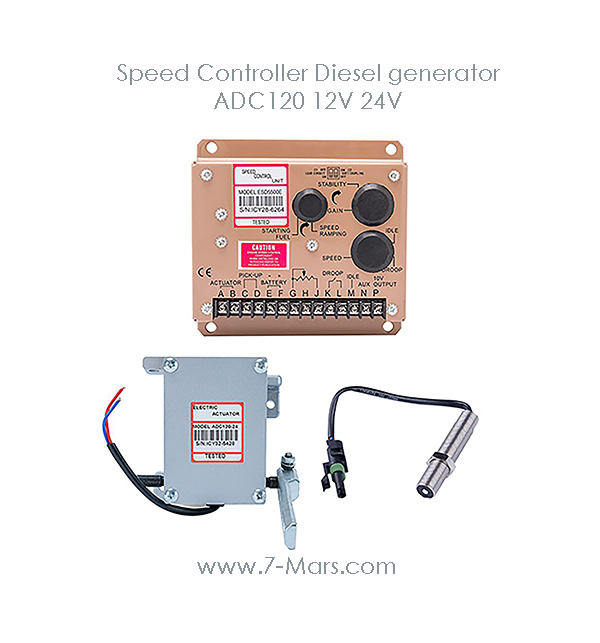

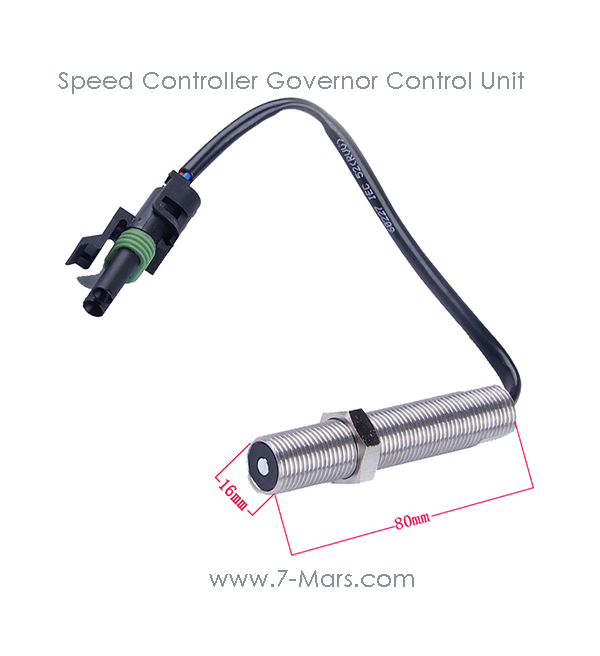

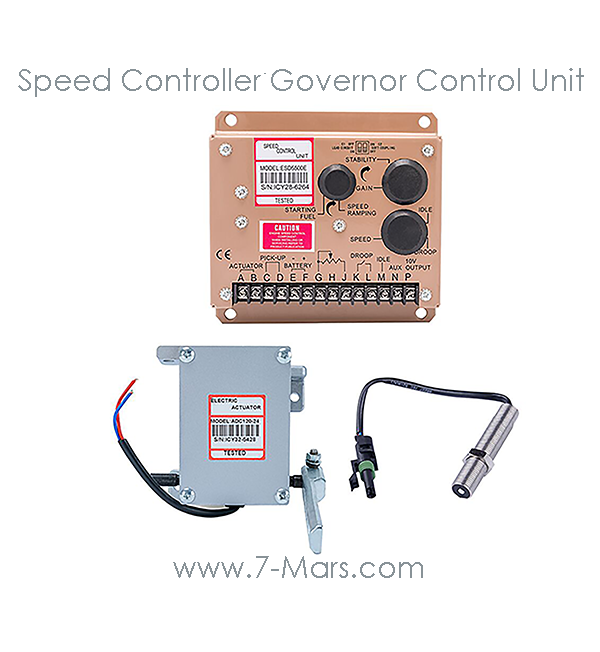

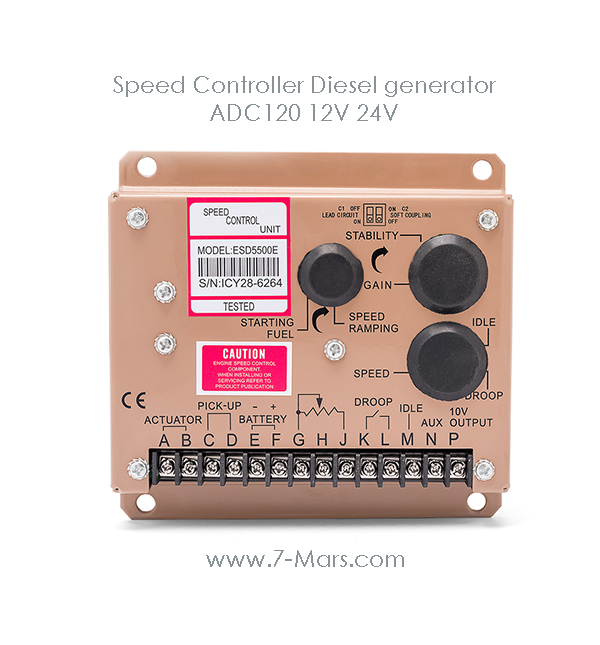

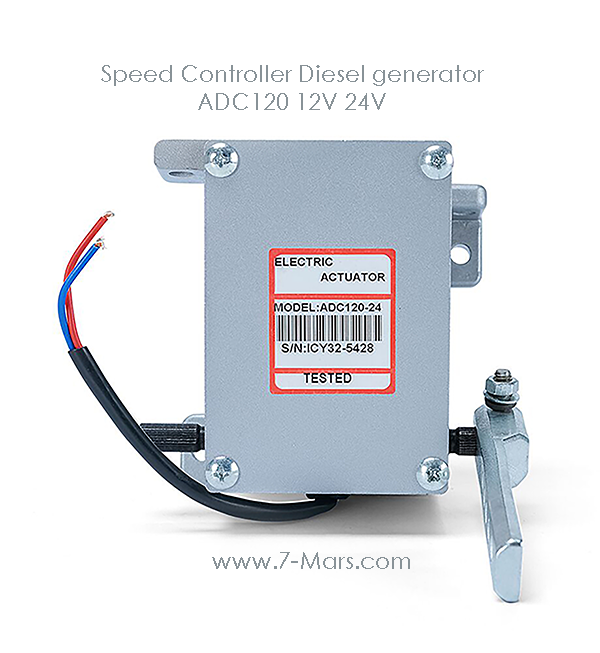

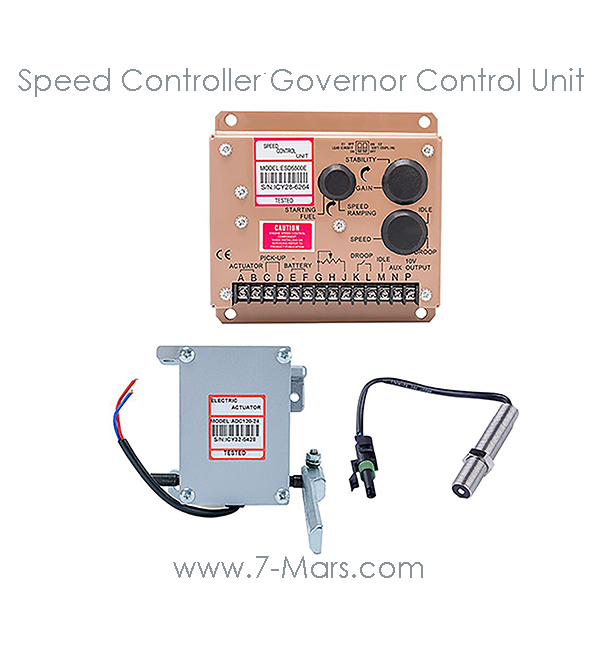

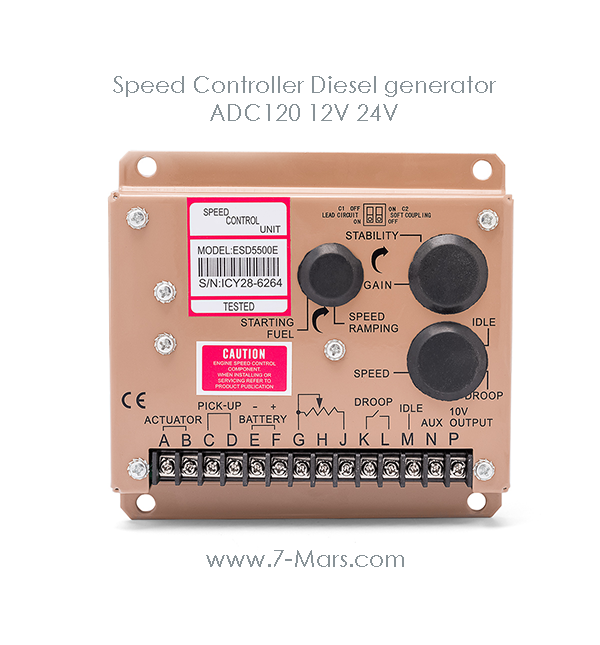

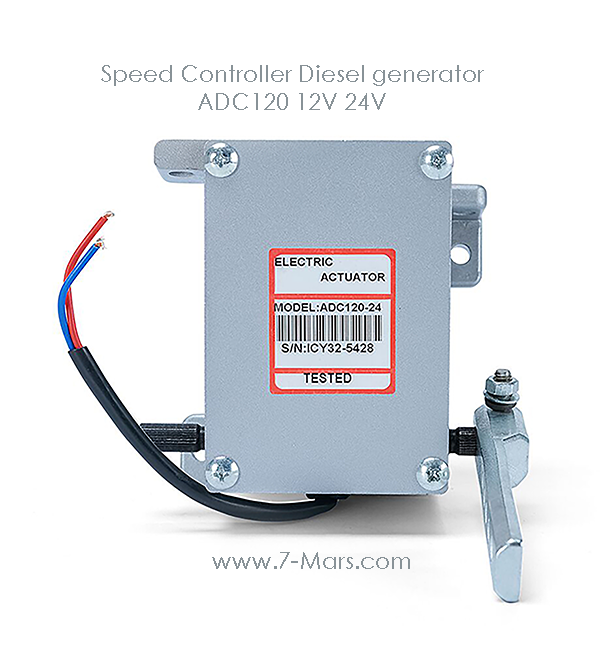

Actuator ADC120 12V 24V Diesel generator Governor 1set ADC120 1PCS 3034572 pickup sensor 1PCS ESD5500E speed controller 1PCS
- 1PCS ADC120-12v(or ADC120-24V)+1PCS ESD5500E+1PCS 3034572 sensor=1set
- good universal performance,longevity,stability.
PERFORMANCE :
- Available Torque Max1.0Lb-ft(1.4Nm)
- Maximum Operating Shaft Angular Travel 25± 1degree CW/CCW
POWER INPUT :
- Operating voltage 12VDC
- Normal Operating Current 2A at 12VDC 1A at 24VDC
- Maximum Current Continuously Rated 6A at 12VDC 3 A at 24VDC
ENVIROMENTAL :
- Temperature Range -54 to 95
- Relative Humidity up to 100%
- All Surface finishes Fungus proof and corrosion resistant
PHISICAL :
- Weight 2.3 kg
- Mounting Any position, electrical connector at the top preferred
RELIABILITY :
- Vibration up to 20G @50-500 Hz
- Testing 100% Tested
MATING HARDWARE :
- Connector Supplied With Actuator : Lever LE1500-2
- Rod End Bearings ( to attach a 12#20 HD linkage rod to lever) BR100( Right Hand ) BR101(Left Hand)
- Wiring Harness ADC120 4ft. Harness supplied with actuator, other length available from Actuator
- Actuator ADC120 12V / 24V optional,Just leave a message to us.
