SQB3.0/60-D72/750
SKU : SQB3.0/60-D72/750
| Price |
345.00 USD 400.00 USD (-14%) |
| Quantity to buy | |
| Total | 345.00 USD |
Do not have enough stock
Out of stock

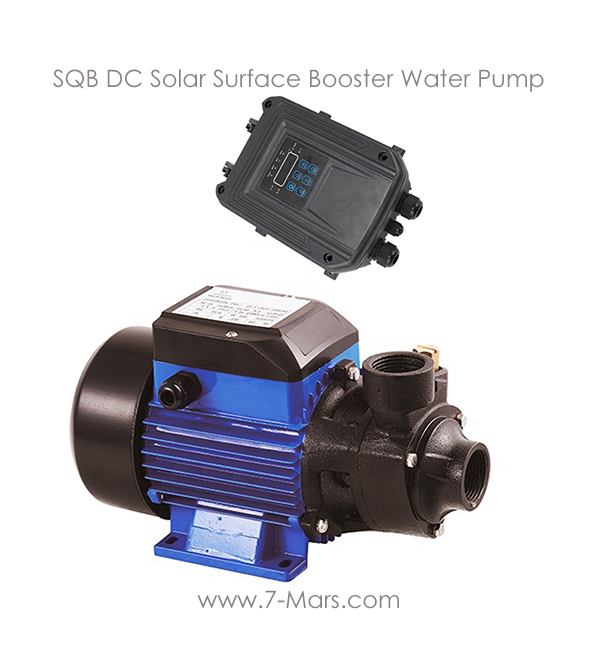

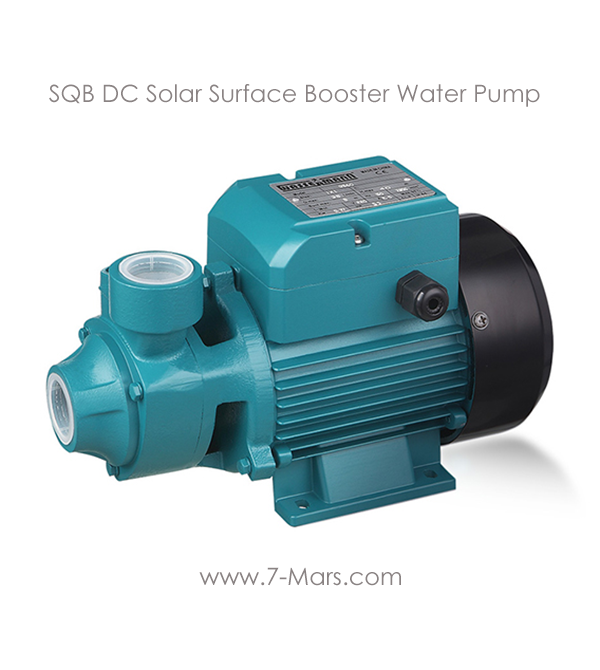

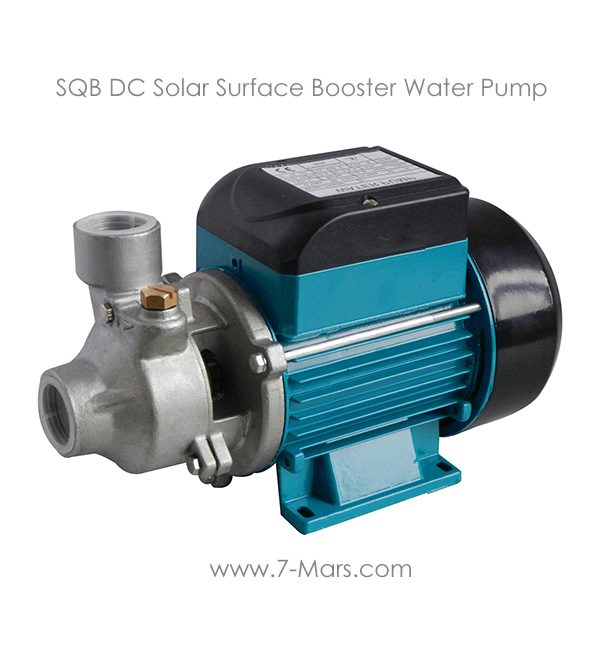

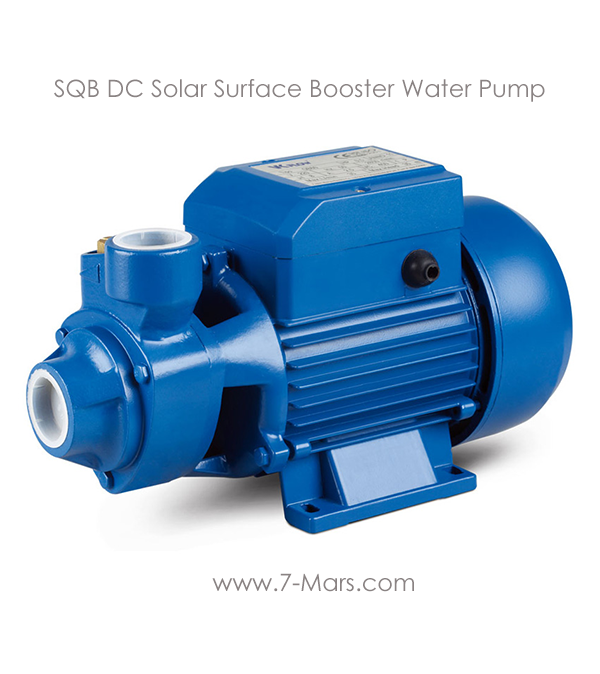

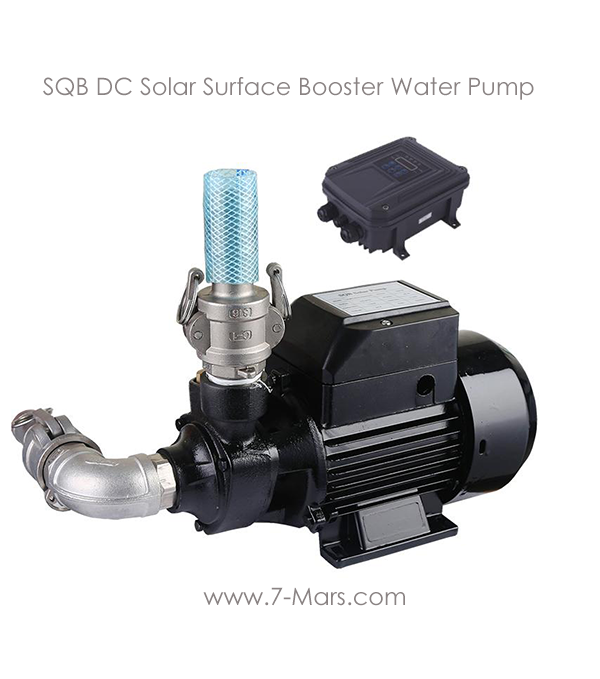

SQB Series Surface Solar Pump, DC. Surface Solar Water Pumps 72V / 750W
Max Flow (m3/h) : 3 / Max Head (m) : 60 / Voltage Pictures (V) : DC24V / Power : 750W. / Solar Panels : 75 - 150V ( 1125W ) / Pump Dia (inch) : 1" / Outlet Dia (inch) : 1"
DCSOLAR PUMP INTRODUCTION

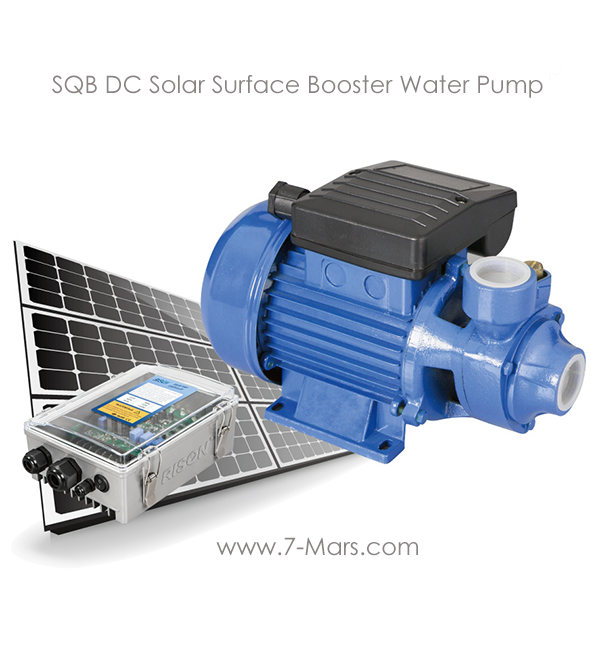

Solar photovoltaic panels convert sunlight to electrical energy which is passed to the solar pump controller.
The solar controller stabilizes the voltage and output power to drive the pump motor. If backup batteries (optional) are installed in the system, then the pump controller can also charge them. The stored power can be used during the evening or when the sunlight is not adequate to drive the pump.Sensors are also connected to the controller and can be used to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
APPLICATION
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
MOTOR Maintenance-Free Brushless DC Motor Suitable for 12-48 Volt DC Operation No electronics in the motor Control inputs for well probe,dry running protection,remote control etc. Integrated DSP & MPPT(Maximum Power Point Tracking) Battery Operation,low voltage disconnect for battery system operation Adjustable speed control of motor Protection against reverse polarity,overload and high temperature.
