SCPM4.8/22-D48/370
SKU : SCPM4.8/22-D48/370
| Price |
325.00 USD 385.00 USD (-16%) |
| Quantity to buy | |
| Total | 325.00 USD |
Do not have enough stock
Out of stock

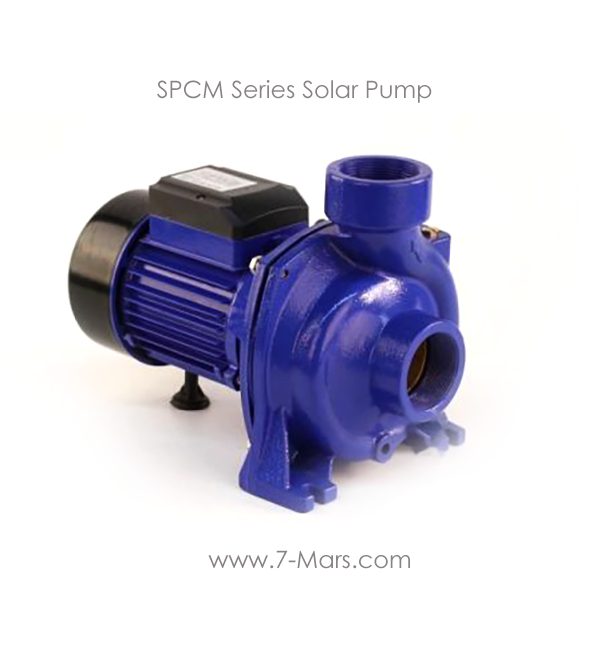

SCPM Series DC SOLAR CENTRIFUGAL PUMP 48V / 370W.
Max Flow (m3/h) : 4.8 / Max Head (m) : 22 / Voltage Pictures (V) : DC48V / Power : 370W. / Solar Panels : 50 - 100V ( 555W ) / Pump Dia (inch) : 1" / Outlet Dia (inch) : 1"
Application :
DC Solar surface pumps are fitted with a permanent magnet,brushless motor, Which enables the efficient use of energy from a wide range of supply options. The pump system offers the perfect water supply solution. This project products are mainly used in dry irrigation of agriculture. It can be used for drinking water and living water. The living condition could be much improved.
Characteristic :
1. Permanent magnet,brushless motor,saving energy and offering maximum efficiency.
2. NSK bearing with alloy mechanical seal,offering the longer working life.
3. MPPT function offers higher utilization rate of solar energy.
4. Water proof and leak proof based on double water seal.
5. Controller maximum's operating temperature:60℃
6. Featured function:MPPT function,Soft start function,Dry running protection,Adjustable speed function, Error wiring protection,Over/under-voltage protection,Overload protection,Over-current protection, phase-loss protection,High working temperature protection
Working conditions :
1.Power Supply : Solar panel,Storage batteries . DC48 Solar pumps:42-100V (VMP) DC72 Solar pumps:63-150V (VMP)
2.Water temperature : ≤35℃
3.PH value 6.5 ~ 8.0
