TND-5KVA-1P

SKU : TND-5KVA-1P

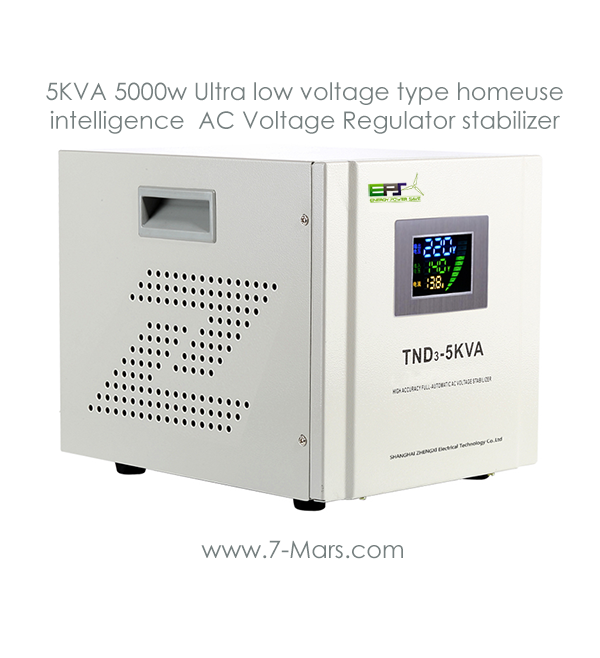

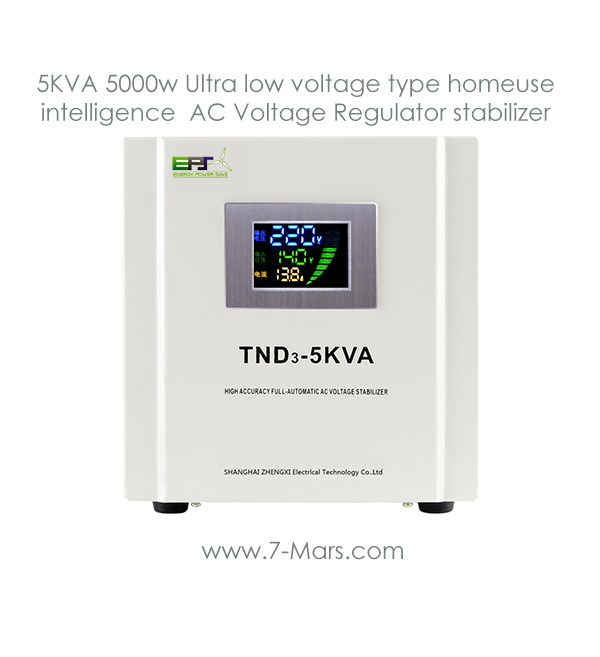

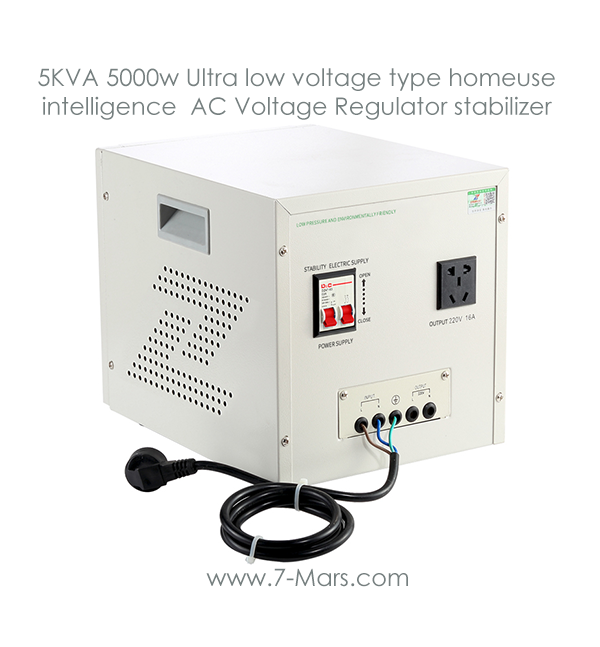

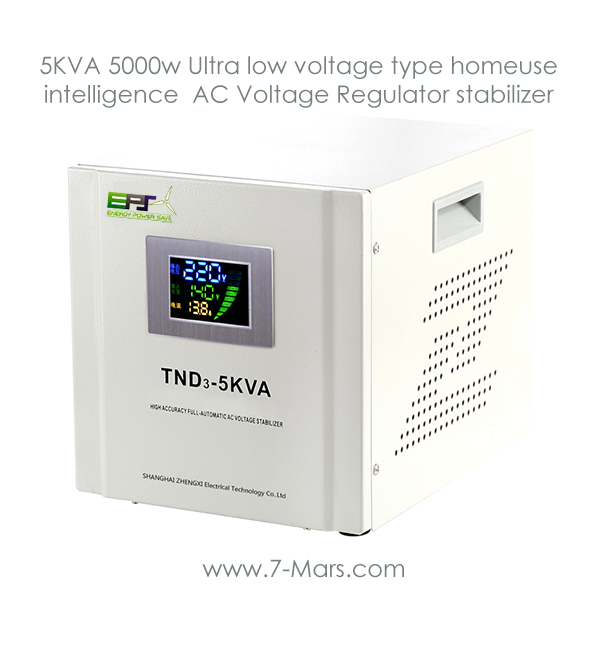

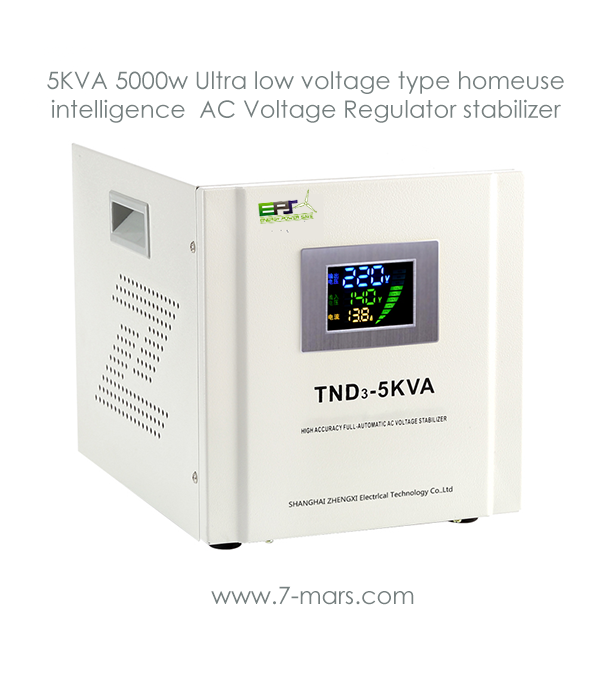

5KVA Single phase AC 220V servo AVR high-low voltage type Smart homeuse SVC Voltage stabilizer Regulator

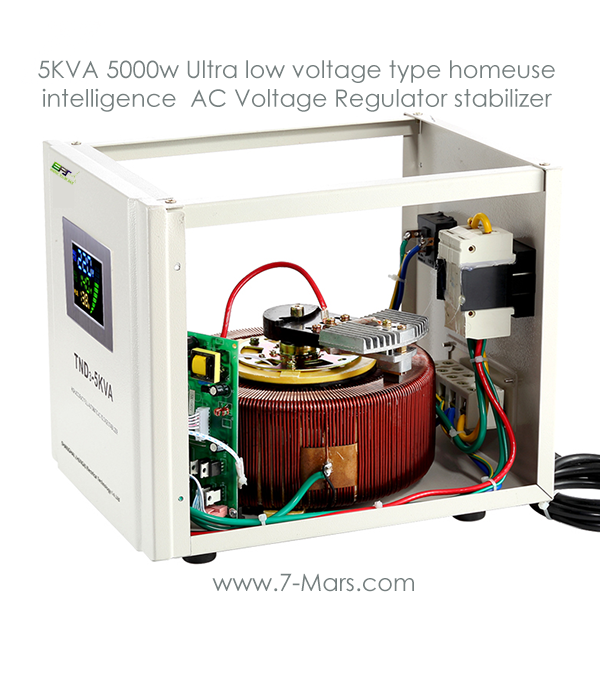

TND Series single-phase high precision automatic AC voltage regulator is composed of contact type auto-coupling voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo. The motor adjusts the position of the auto-coupler carbon brush to adjust the output voltage to the rated value and reach a steady state.

 TND3 series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automatic equipment, household appliances, lighting systems, communication system, etc.

TND3-15KVA normal type intelligence automatic AC Voltage Regulator stabilizer

Quick Details :

1. Place of Origin : Bangkok , Thailand
2. Brand Name : Energy Power & OEM
3. Model Number : TND3-5KVA
4. Usage : SVC
5. Phase : Single Phase
6. Current Type : AC
7. Input Voltage :: 90-260V
8. Output voltage : 220V
9. Frequency :: 50Hz/60Hz
10. Capacity:: 5KVA
11. Display:: LCD
12. Certificate: CE / ISO9001
13. Type :: Relay Control
14. Color : Grey White
15. Efficiency :: 98%
