CT-30/5-OIL
SKU : CT-30/5-OIL
| Price |
1,000.00 USD 1,125.00 USD (-11%) |
| Quantity to buy | |
| Total | 1,000.00 USD |
Do not have enough stock
Out of stock

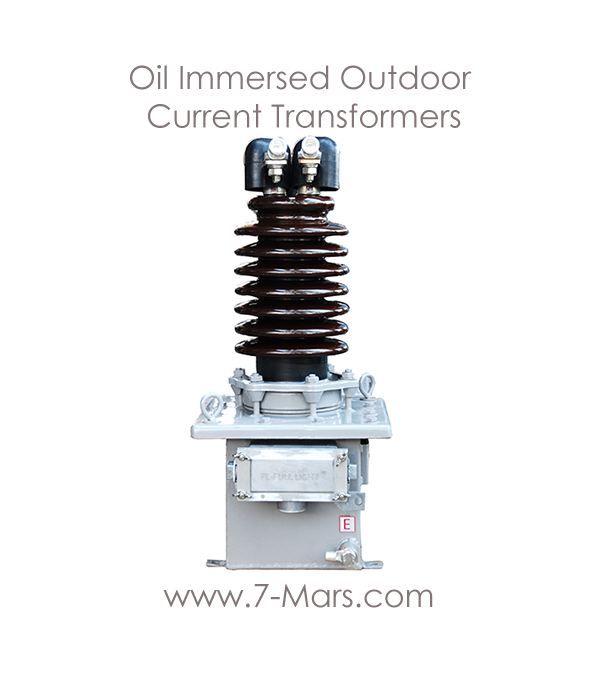

Out Door Current Transformer ( Oil Type ) Rate Voltage : 22KV 30VA. 1Phase 50Hz. Ratio : 30/5A Class 0.5 Standard : IEC 60044-1
Technical Data :
1.The Current transformer are in accordance with IEC 60044-1 and IEC 61869-2 standard
2.Rate Voltage : 24 kV.
3.Rate primary current and : 10/5A. , 20/5A. , secondary current 30/5A. , 50/5A. , 75/5A. , 100/5A , on request.
4.Rate frequency : 50Hz
5.Polarity : subtractive
6.Rated output : not less than 30 VA
7.Accuracey class : 0.5
8.Instrument security factor (FS) : Less than 5
9.Impulse withstand voltage : 125 kV (peak)
10.10.Dynamic current (I ) 2.5 I dyn th
