HDR-150-15

SKU : HDR-150-15

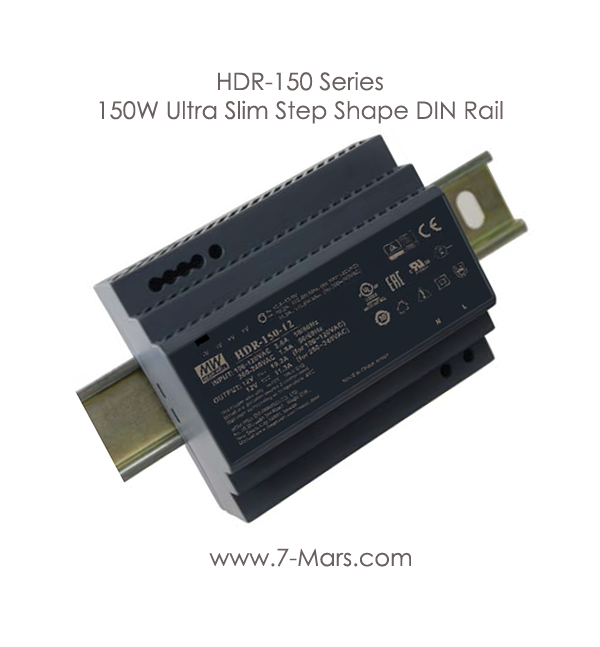

150W Ultra Slim Step Shape DIN Rail HDR-150 series

Description :

HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm (6SU) in width, which allows space saving inside the

cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC 62368-1, UL62368-1,UL61010, EN61558-2-16) make HDR-150 a very competitive power supply solution for household and industrial applications.

Features :

1. Ultra slim design with 105mm(6SU) width
2. Universal input 85~264VAC(277VAC operational)
3. No load power consumption<0.3W
4. Isolation class II
5. DC output voltage adjustable
6. Protections : Short circuit Overload / Over voltage
7. Cooling by free air convection
8. DIN rail TS-35/7.5 or 15 mountable
9. Over voltage category III
10. LED indicator for power on
11. 3 years warranty

Applications :

1. Household control system
2. Building automation
3. Industrial control system
4. Factory automation
5. Electro-mechanical apparatus
