HDR-15-48

SKU : HDR-15-48

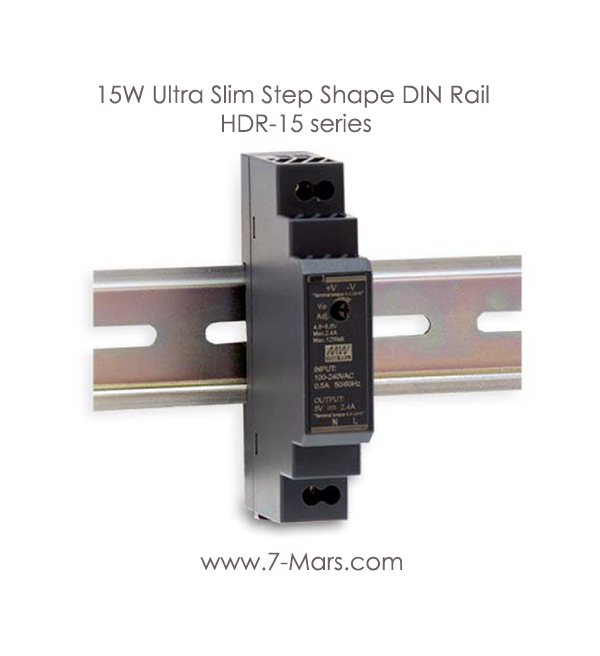

15W Ultra Slim Step Shape DIN Rail HDR-15 series

Description :

HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-15 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC 62368-1, UL508, UL62368-1, EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.

Features :

1. Ultra slim design with 17.5mm(1SU) width
2. Universal input 85-264VAC(277VAC operational)
3. No load power consumption<0.3W
4. Isolation class II
5. Pass LPS (Limited power source)
6. DC output voltage adjustable
7. Protections : Short circuit / Overload / Over voltage
8. Cooling by free air convection (working temperature:-30~+70°C)
9. DIN rail TS-35/7.5 or 15 mountable
10. Over voltage category III
11. LED indicator for power on
12. 3 years warranty

Applications :

1. Household control system
2. Building automation
3. Industrial control system
4. Factory automation
5. Electro-mechanical apparatus
