SDR-480P-48

SKU : SDR-480P-48

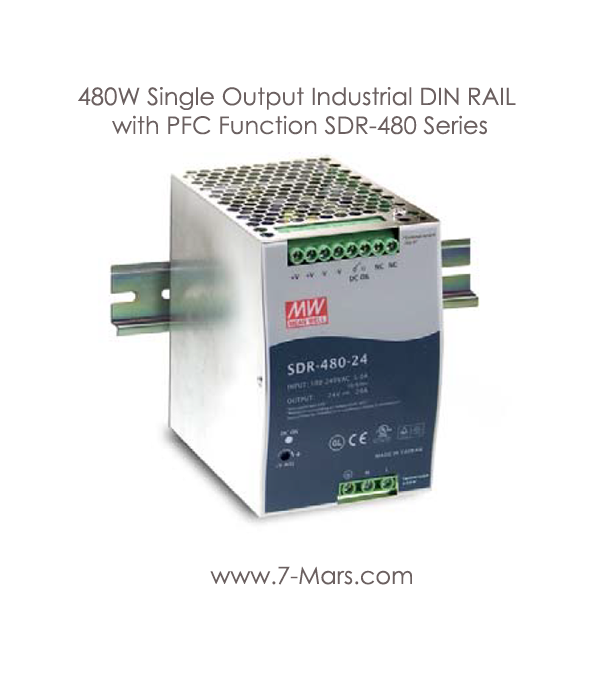

480W Single Output Industrial DIN RAIL with PFC and Parallel Function SDR-480 Series

Features :

1. Current sharing up to 3840W(7+1)
2. High efficiency 94% and low power dissipation
3. 150% peak load capability
4. Built-in active PFC function, PF>0.94
5. Protections: Short circuit / Overload / Over voltage / Over temperature
6. Cooling by free air convection
7. Built-in constant current limiting circuit
8. Can be installed on DIN rail TS-35/7.5 or 15
9. UL 508 (industrial control equipment)approved
10. EN61000-6-2(EN50082-2) industrial immunity level
11. Built-in DC OK relay contact
12. 100% full load burn-in test
13. 3 years warranty
