TDR-960-48

SKU : TDR-960-48

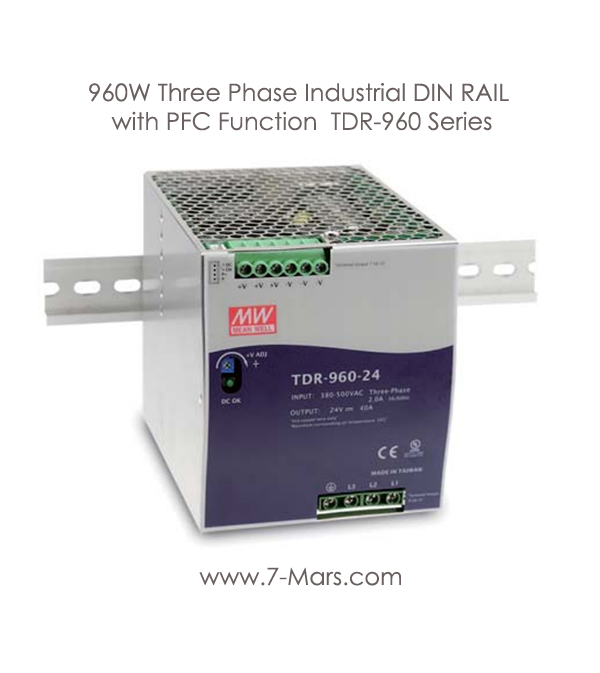

960W Three Phase Industrial DIN RAIL with PFC Function TDR-960 Series

Features :

1. Three-Phase 340 - 550VAC wide range input
2. (Dual phase operation possible)
3. Width only 110mm
4. Built-in active PFC function compliance to EN61000-3-2
5. High efficiency 94.5% and low power dissipation
6. Protections: Short circuit / Overload / Over voltage / Over temperature
7. Cooling by free air convection
8. Built-in constant current limiting circuit
9. Can be installed on DIN rail TS-35/7.5 or 15
10. UL508(industrial control equipment)approved
11. EN61000-6-2(EN50082-2) industrial immunity level
12. Current sharing up to 3840W (3+1)
13. Built-in DC OK relay contact
14. 100% full load burn-in test
15. 3 years warranty
