TDR-480-24

SKU : TDR-480-24

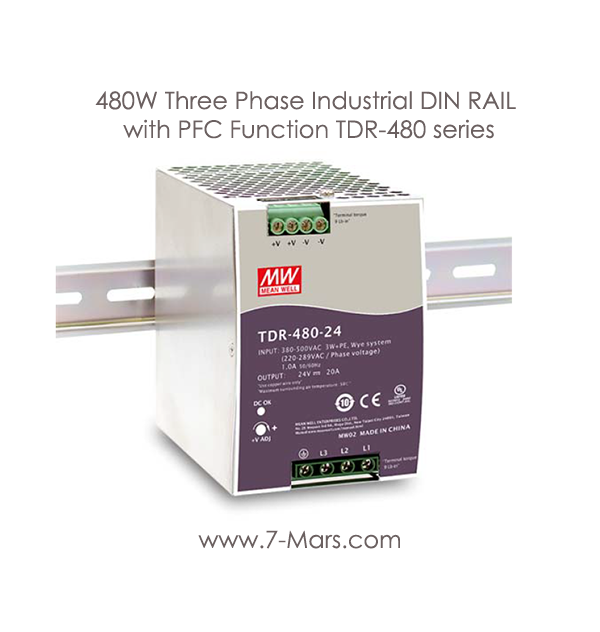

480W Three Phase Industrial DIN RAIL with PFC Function TDR-480 series

Description :

TDR-480 is one economical slim 480W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 3 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 93 %, the entire series can operate at the ambient temperature between -20°C and 70°C under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508 IEC 62368-1 CB approved by UL.) make TDR-480 a very competitive power supply solution for industrial applications

Features :

1. Three-Phase 340 ~ 550VAC wide range input
2. (Dual phase operation possible)
3. Width only 85.5mm
4. Built-in active PFC function compliance to EN61000-3-2
5. High efficiency 93% and low power dissipation
6. Protections: Short circuit / Overload / Over voltage / Over temperature
7. Cooling by free air convection
8. Built-in constant current limiting circuit
9. Can be installed on DIN rail TS-35/7.5 or 15
10. UL508(industrial control equipment) approved
11. EN61000-6-2(EN50082-2) industrial immunity level
12. Optional DC OK relay contact
13. 3 years warranty

Applications :

1. Industrial control system
2. Semiconductor fabrication equipment
3. Factory automation
4. Electro-mechanical apparatus
