TDR-240-24

SKU : TDR-240-24

Price

110.00 USD


135.00 USD

 (-19%)
Quantity to buy
Total 110.00 USD

Out of stock

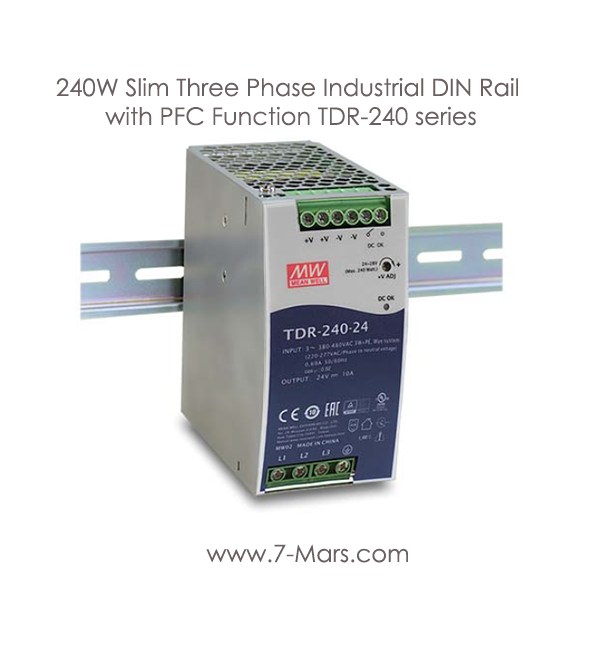

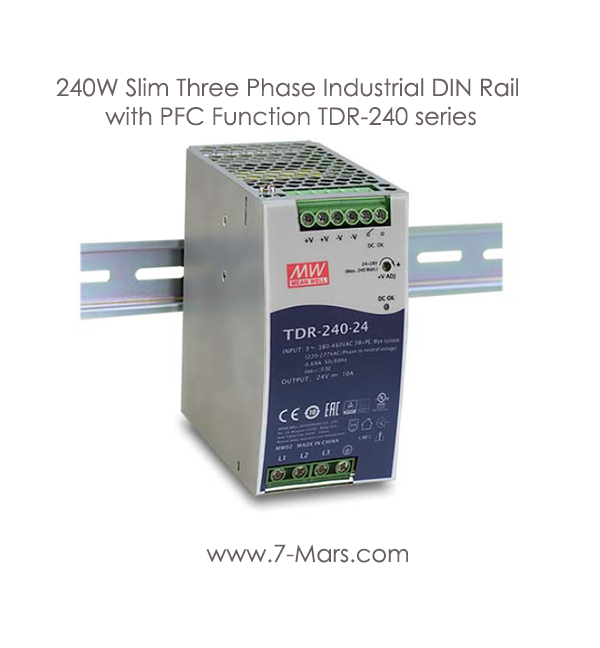

240W Slim Three Phase Industrial DIN Rail with PFC Function TDR-240 series

Description :

TDR-240 is one economical slim 240W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 34 340VAC to 550VAC (Dual Phase operation possible) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. TDR-240 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 92%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL61010-1, UL61010-2-201, EN61558-1, EN61558-2-16, EAC TP TC 004 approved, and etc.) make TDR-240 a very competitive power supply solution for industrial applications.

Features :

  1. Three-Phase 340 550VAC wide range input
  2. (Dual phase operation possible)
  3. 63mm slim width
  4. Built-in passive PFC function compliance to EN61000-3-2
  5. High efficiency 92% and low power dissipation
  6. Protections: Short circuit / Overload / Over voltage / Over temperature
  7. Cooling by free air convection
  8. Full power between -30~+60°C
  9. Built-in constant current limiting circuit
  10. Can be installed on DIN rail TS-35/7.5 or 15
  11. UL61010(industrial control equipment)approved
  12. EN61000-6-2(EN50082-2) industrial immunity level
  13. DC OK relay contact
  14. 3 years warranty

Applications :

  1. Industrial control system
  2. Semiconductor fabrication equipment
  3. Factory automation
  4. Electro-mechanical apparatus
