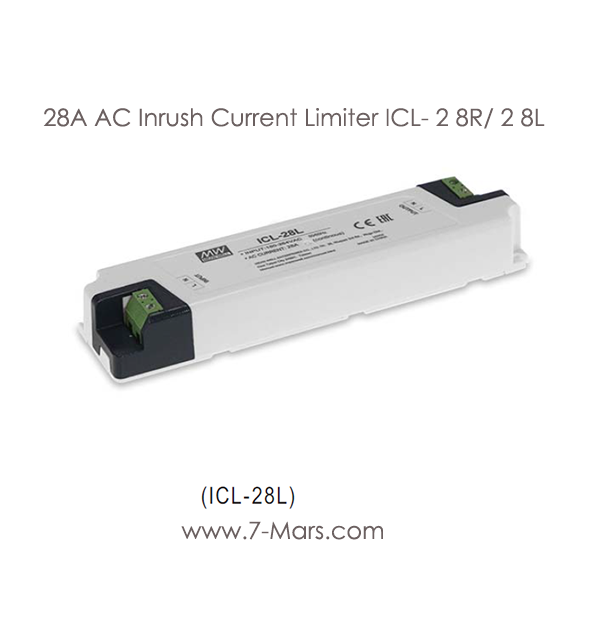

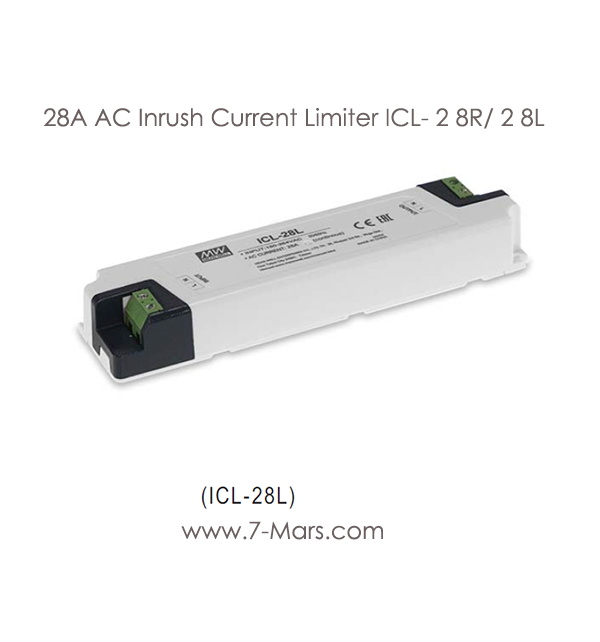

ICL-28L

SKU : ICL-28L

28A AC Inrush Current Limiter ICL- 2 8R/ 2 8L Series

Description :

The ICL-28 is a 28A inrush current limiter that can be used to reduce the high starting current due to capacitive load causing the circuit breaker to be false triggered. Several power supplies can be installed on the same AC line after the implementation of an ICL-28.

Features :

1. 48A inrush limiting current, 28A continuous
2. 180-264VAC AC input
3. Integrated bypass relay, no simple NTC
4. Internal thermal protection

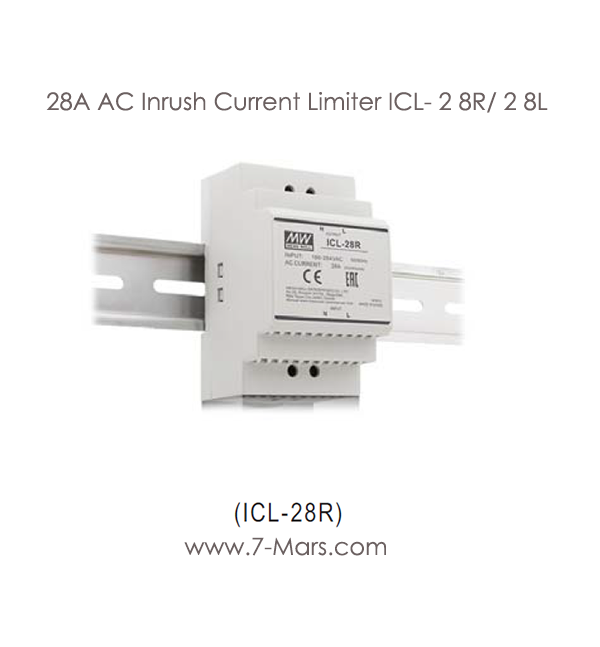

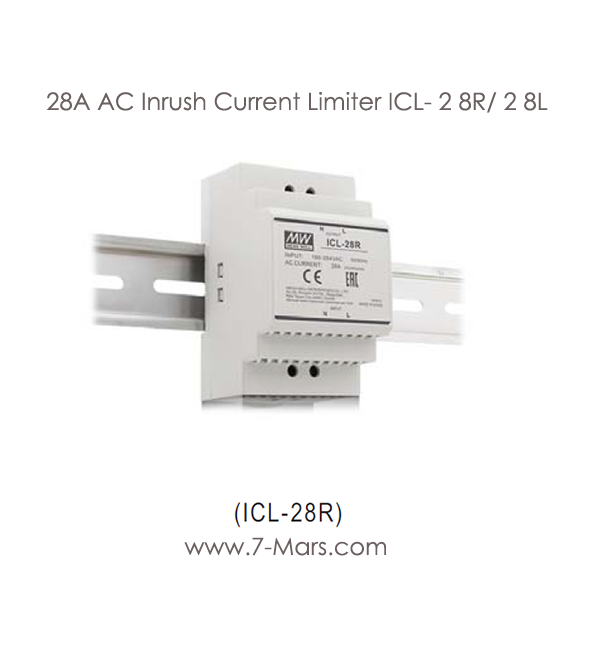

5. Installed on DIN Rail TS-35/7.5 or 15 (ICL-28R)
6. -30~+70°C wide working temperature
7. Over voltage category III
8. Operating altitude up to 5000 meters(Note. 2)
9. 1.3 years warranty

Applications :

1. Allow connecting multiple power supply
2. at same line
3. Allows smaller and faster Circuit Breaker
4. Capacitive load
5. Protects against unintended tigger of
6. circuit breaker
