DRA-40-24

SKU : DRA-40-24

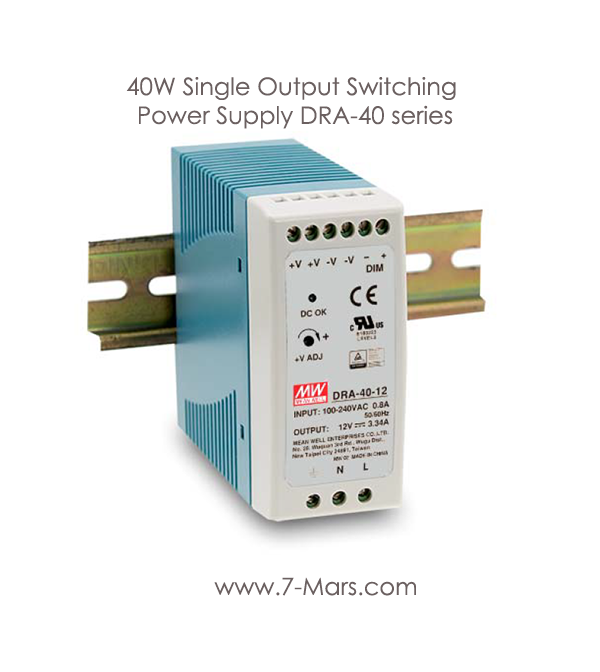

40W Single Output Switching Power Supply DRA-40 series

Description :

DRA-40 is one 40W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1-10Vdc, PWM signal or resistance. DRA-40 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-40 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30°C through 70°C.

Features :

1. Universal AC input/ Full range
2. Protections: Short circuit / Overload/Over voltage
3. Can be installed on DIN rail TS-35/7.5 or 15
4. Output Voltage adjustable through internal potentiometer
5. Output Current adjustable through external 1-10Vdc, PWM
6. signal or resistance
7. Cooling by free air convection
8. Pass LPS
9. LED indicator for power on
10. 100% full load burn-in test
11. 3 years warranty

Applications :

1. Machine vision inspection system
2. Plant cultivation system
