WDR-60-24

SKU : WDR-60-24

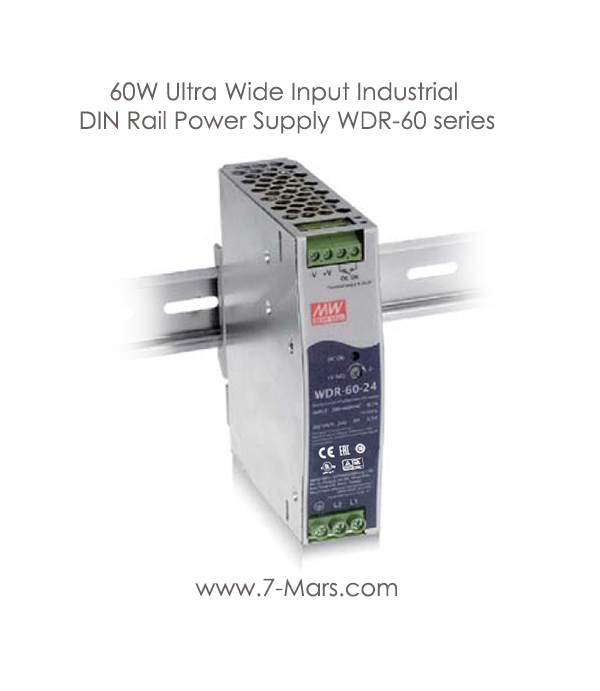

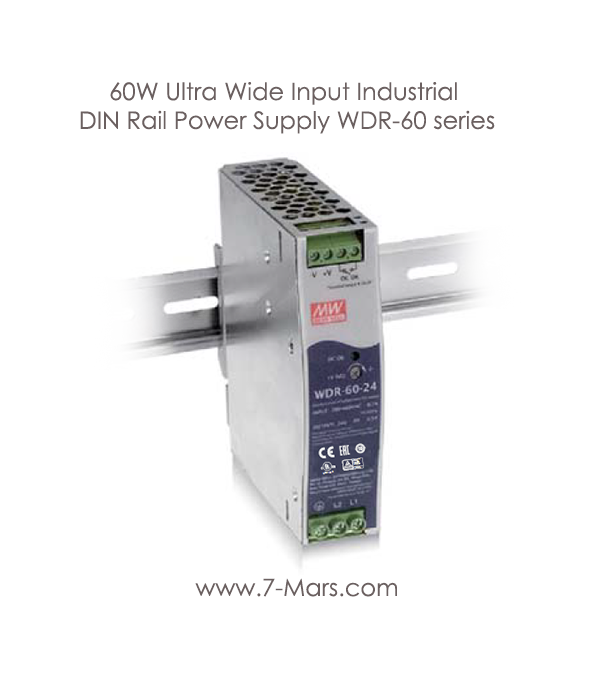

60W Ultra Wide Input Industrial DIN Rail Power Supply WDR-60 series

Description :

WDR-60 series is a 60W DIN rail power supply with ultra-wide AC input range. It is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. Main features are as following: it can accept 180-550Vac ultra-wide input voltage range for single phase or 2-phase system, easy to install DIN rail type, narrow width (32mm) in slim design, -30~+85°C wide range operating temp, 4.7KVAC high isolation voltage, operation at 2000m altitude, adjustable output voltage (+20% max.), high efficiency, low ripple & noise, complete protections and so on. WDR-60 is compliant with EN-61000-6-2 standard regarding immunity for industrial environments. It suitable for industrial automation, surveillance, telecommunication and more applications.

Features :

1. 180 ~ 550Vac ultra wide input for 1-phase or 2-phase
2. 32mm slim width
3. 4.7KVac I/O high isolation(Reinforced isolation)
4. Protections: Short circuit / Overload / Over voltage / Over temperature
5. Cooling by free air convection
6. Can be installed on DIN rail TS-35/7.5 or 15
7. -30~+85°C ultra-wide operating temperature (>+60°C derating)
8. Over voltage category II
9. DC OK relay contact
10. DC output voltage adjustable(+20%)
11. 3 years warranty

Applications :

1. Industrial control system
2. Semiconductor fabrication equipment
3. Factory automation
4. Electro-mechanical apparatus
