DRDN40-12

SKU : DRDN40-12

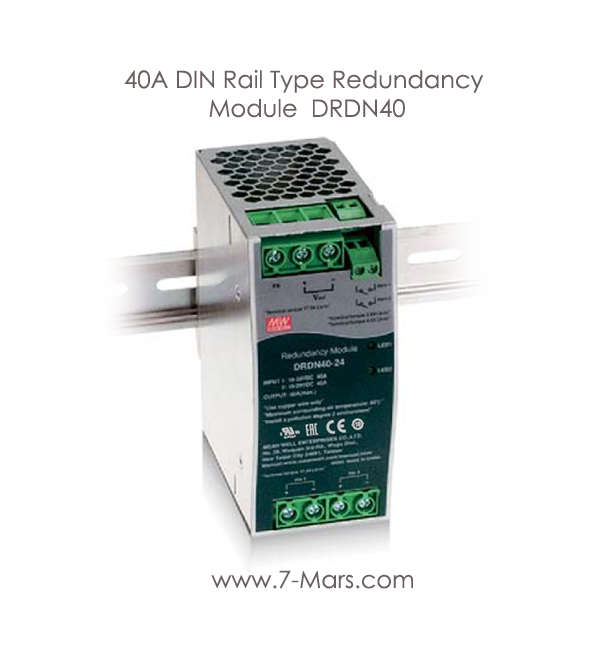

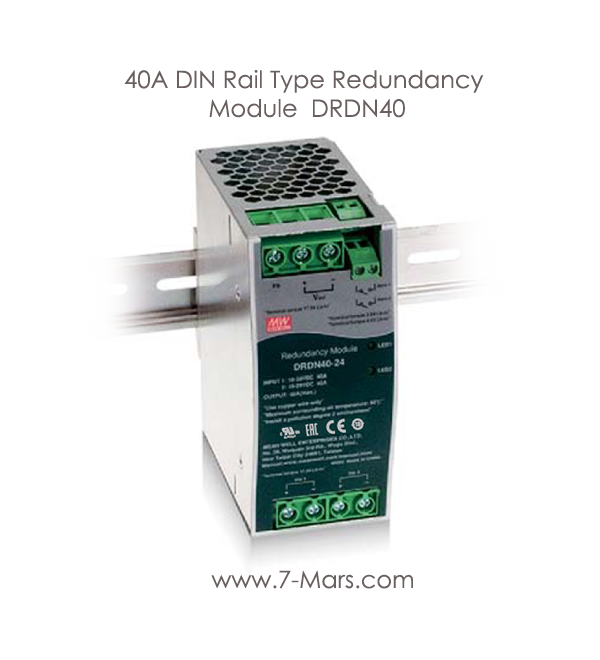

40A DIN Rail Type Redundancy Module DRDN40 Series

Description :

The DRDN40 series is a 40A redundancy module that can be used with a power supply to improve overall system operation reliability. Product key features include:12V/24V/48V input voltage for selection, support N+1 and 1+1 redundancy systems, built-in two rails DC input contacts and single output. The MOSFET technology implemented can reduce heat loss and reduce the voltage difference between the input and output voltages, built-in 2 channels DC OK relay contacts for monitoring output status, ultra-wide operating temperature of -40 to +80°C and narrow width (55mm).

Features :

1. Support 1+1 and N+1 redundancy system
2. 2 channels input and 1 output
3. Suitable for redundancy operation of 12V/24V/48V system
4. Output current up to 40A
5. Cooling by free air convection
6. -40~+80°C ultra-wide operating temperature ( >+60°C derating
7. 55mm slim width
8. Built-in 2 channels DC OK signal and alarm relay contact
9. 3 years warranty

 Applications :

1. Industrial control system
2. Semiconductor fabrication equipment
3. Factory automation
4. Electro-mechanical apparatus
