DBUF40-24

SKU : DBUF40-24

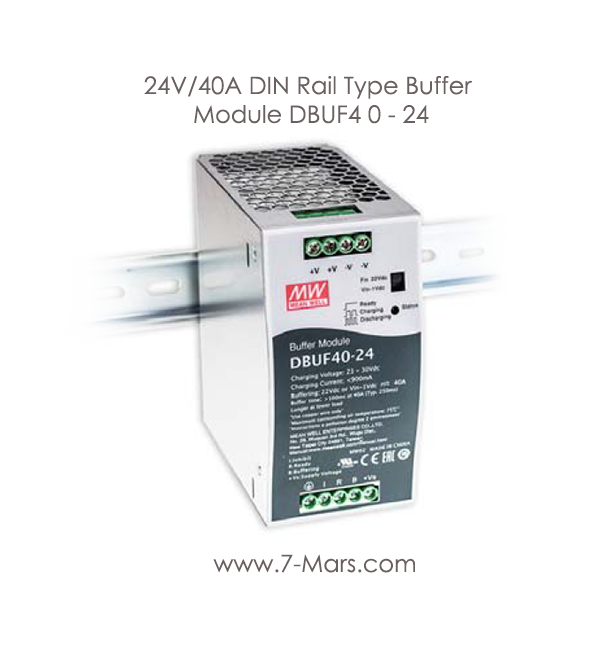

24V/40A DIN Rail Type Buffer Module DBUF4 0 - 24

Description :

The DBUF40-24 buffer module is a supplementary device for regulated DC 24V power supplies. The buffer module utilizes maintenance-free electrolytic capacitors to store energy,thus eliminates the need of periodic replacement as compared to costlier batteries which also have shorter functional life span. The DBUF40-24 comes with comprehensive protection features like over voltage, over current and short circuit protections. Buffer modules can be connected in parallel to increase the output ampacity or the hold-up time.

Features :

1. Buffering with electrolytic capacitors instead of lead acid batteries
2. Type buffering time of 250ms @22Vdc/40A
3. Buffer mode selectable by switch:
4. Fixed mode at 22Vdc
5. Dynamic mode for Vin-1 Vdc
6. LED indicator for signal status
7. Supports parallel connection to extend buffering time
8. Cooling by free air convection
9. .-25~+75°C wide operating temperature
10. 3 years warranty

Applications :

1. Industrial control system
2. Semiconductor fabrication equipment
3. Factory automation
4. Electro-mechanical apparatus
