HBGC-300-H-A

SKU : HBGC-300-H-A

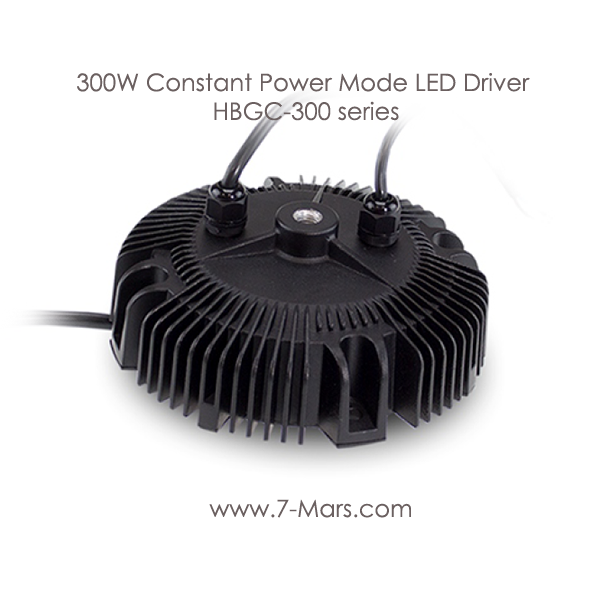

300W Constant Power Mode LED Driver HBGC-300 series

*Type A IP Level IP67 Function : output constant power adjustable via built-in potentiometer / Note : In stock

Description :

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90-305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40°C~+80°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor

applications. Moreover the innovative environment adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. HBGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Wide input range 90 ~ 305VAC
2. Full power at 60~100% max current (Constant Power
3. Built-in active PFC function
4. Circular metal housing design with IP67
5. Function options: output adjustable via potentiometer;
6. 3 in 1 dimming (Dim to off and Isolation) : DALI 2.0 dimming
7. Typical lifetime>50000 hours
8. 5 years warranty

Applications :

1. Bay lighting
2. Stage lighting
3. Flood lighting
4. Stadium lighting
5. Type HL for use in class 1 Division 2
