LDH-25-700W

SKU : LDH-25-700W

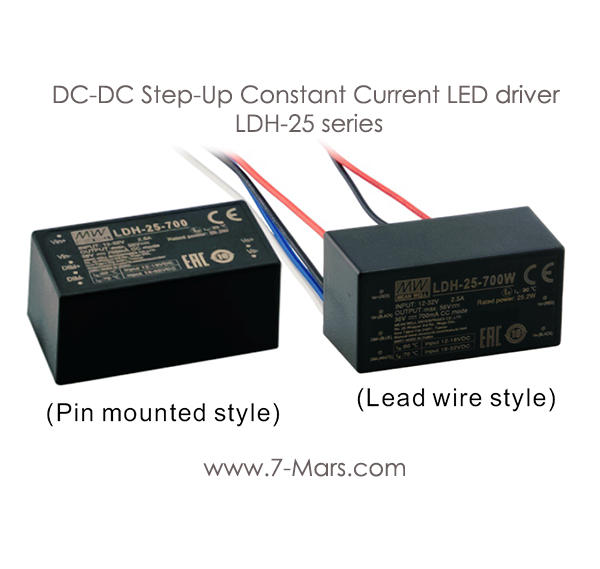

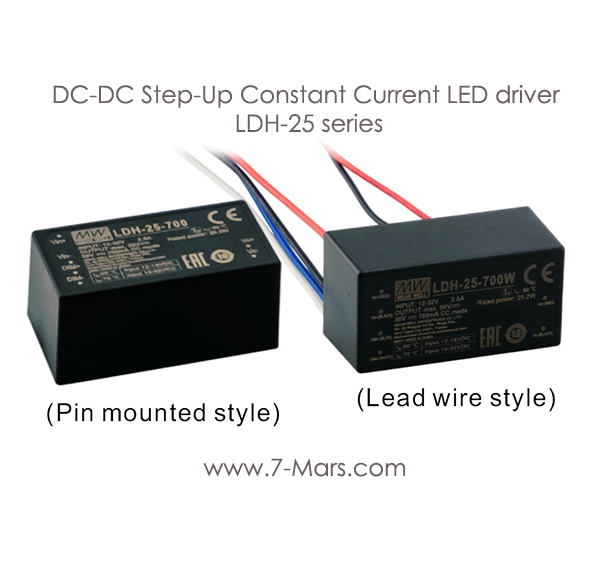

DC-DC Step-Up Constant Current LED driver LDH-25 series

*Power : 25.2 W / Current : 700mA. / Output Voltage : 12.5 - 36 VDC.

*W : Lead Wire Style

Description :

LDH-25 series is a 25W DC/DC LED driver featuring constant current output. LDH-25 operates from 9.5-32VDC and offers models with different rated current ranging between 250mA and 700mA. With the high efficiency up to 95.5%. The 94V-0 flame retardant plastic case the fully-potted silicone enhance the heat dissipation allows this series to fit solar LED street light. LDH-25 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility

for DC source LED lighting system.

Features :

1. Wide DC input voltage operation 9.5-32V
2. DC/DC step-up converter
3. Constant current output: 250mA to 700mA
4. Wide output LED forward voltage up to 84V DC
5. High efficiency up to 95.5%
6. 2 in 1 dimming (0-10V.PWM)
7. Protections: Short circuit Over voltage
8. Cooling by free air convection
9. Fully encapsulated
10. 3 years warranty

Applications :

1. DC battery source lighting
2. Portable lighting
3. LED solar street lighting
4. LED greehouse lighting
5. LED Low-bay lighting
