LDD-300LW

SKU : LDD-300LW

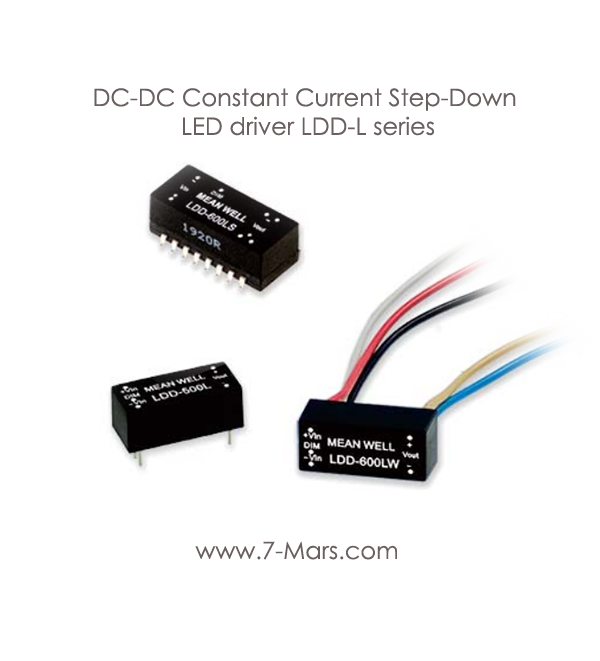

DC-DC Constant Current Step-Down LED driver LDD-L series

*W : Wire Style / Output Current : 300mA. Voltage : 2 - 30VDC.

Features :

1. DC/DC step-down converter
2. Constant current output: 300mA to 700mA
3. Wide input voltage: 9 - 36VDC
4. Wide output LED string voltage: 2 - 32VDC
5. High efficiency up to 95%
6. Built-in EMI filter, comply with EN55015 and FCC part15 without
7. additional input filter and capacitors
8. Built-in PWM dimming and remote ON/OFF control
9. Protections: Short circuit / Over temperature
10. Cooling by free air convection
11. Fully encapsulated with IP67 level for pin and wire style
12. Compact size
13. Low cost, high reliability
14. Suitable for driving illumination LED
15. 3 years warranty
