ODLV-45A-12

SKU : ODLV-45A-12

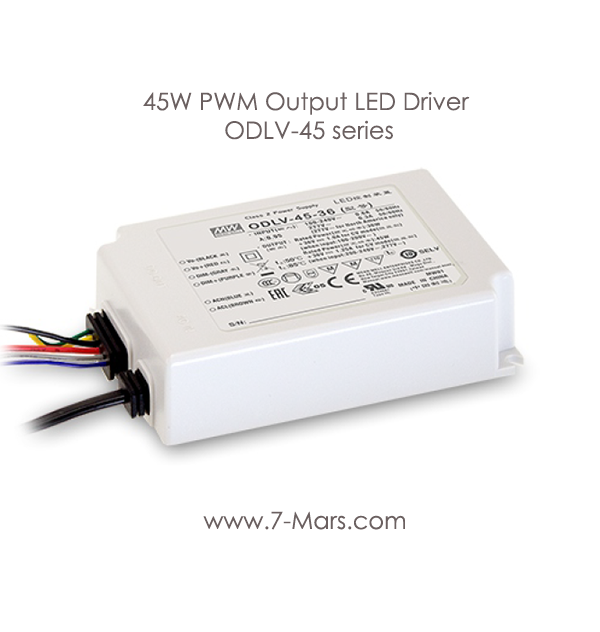

45W PWM Output LED Driver ODLV-45 series

*Type A 2in1 Dimming And Auxiliary DC Output / Not In Stock Power Output : 36W. / Voltage : 12V / Current : 3.0A

Description :

ODLV-45 series is a 45W AC/DC LED driver featuring the constant voltage mode PWM style output design. ODLV-45 operates from 90-295VAC and offers models with different rated voltage ranging between 12V and 60V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -20°C~+85°C case temperature under free air convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications.ODLV-45 is equipped with various function options, such as dimming methodologies, so as to providethe design flexibility for LED lighting system.

Features :

1. Constant Voltage PWM style output
2. with frequency 1KHz
3. Plastic housing with class Il design
4. Built-in active PFC function
5. No load power consumption<0.5W(Blank-Type)
6. IP67 rating for indoor or outdoor installations
7. Function options: 2 in 1 dimming (dim-to-off);
8. Auxiliary DC output
9. 3 years warranty

Applications :

1. LED strip lighting
2. Indoor LED lighting
3. LED decorative lighting
4. LED architecture lighting
