ODLC-45A-1050DA

SKU : ODLC-45A-1050DA

Price

26.00 USD


33.00 USD

 (-21%)
Quantity to buy
Total 26.00 USD

Do not have enough stock

Out of stock

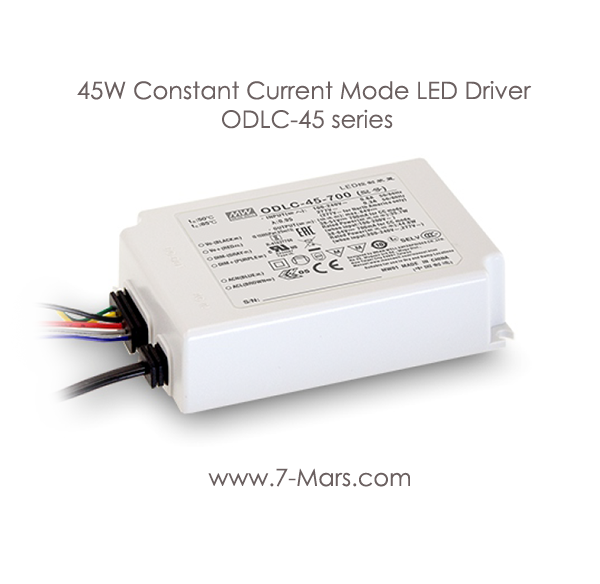

45W Constant Current Mode LED Driver ODLC-45 series

*Type DA DALI Technology Controller / Not In Stock Power Output : 45.15W. / Voltage : 26 - 43V / Current : 1050mA

Description :

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.ODLC-45 operates from 90-295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20°C~+85°C case temperature under free convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

Features :

  1. Constant Current mode output
  2. Flicker free design
  3. Plastic housing with class II design
  4. Built-in active PFC function
  5. No load power consumption<0.5W(Blank-Type),
  6. Standby power consumption<0.5W(DA-Type)
  7. IP67 rating for indoor or outdoor installations
  8. Function options: 2 in 1 dimming (dim-to-off);
  9. Auxiliary DC output; DALI
  10. 3 years warranty

Applications :

  1. LED strip lighting
  2. Indoor LED lighting
  3. LED decorative lighting
  4. LED architecture lighting
