HLG-600H-15B

SKU : HLG-600H-15B

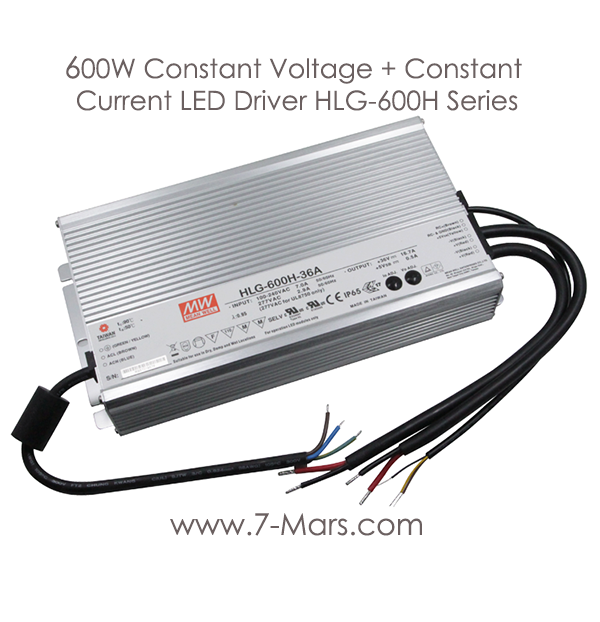

600W Constant Voltage + Constant Current LED Driver HLG-600H series

*Type B 3 in 1 dimming function (0-10VDC, 101 PWM signal and resistance) / Not In Stock Power Output : 540W. / Voltage : 7.5 - 15 V / Current : 36A

Description :

HLG-600H series is a 600W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-600H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96%, with the fanless design, the entire series is able to operate for-40°C - +90°C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Voltage + Constant Current mode output
2. Metal housing with class I design
3. Standby power consumption <0.5W at remote off
4. IP67 / IP65 rating for indoor or outdoor installations
5. Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off)
6. Typical lifetime > 62000 hours
7. 7 years warranty

Applications :

1. LED high-bay lighting
2. Parking space lighting
3. LED fishing lamp
4. LED greenhouse lighting
5. Type "HL" for use in Class I , Division 2 hazardous (Classified) location.
