HLG-480H-36D2

SKU : HLG-480H-36D2

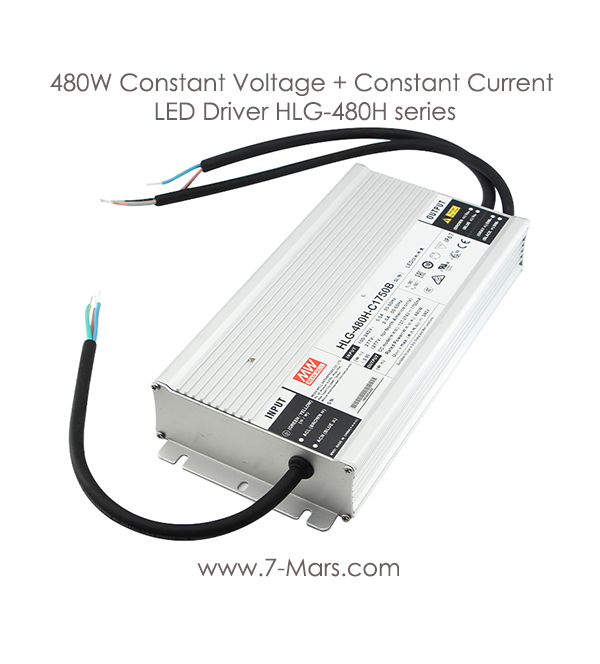

480W Constant Voltage + Constant Current LED Driver HLG-480H series

*Type D2 Built-in Smart timer dimming and programmable function. / Note : In Stock  Power Output : 478.8W. / Voltage : 18 - 36V / Current : 13.3A

Description :

HLG-480H series is a 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90-305VAC and offers models with different rated voltage ranging between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40°C - +90°C case temperature under free air convection. The design of metal housing and IP67/1P65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-480H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Voltage + Constant Current mode output
2. Metal housing with class I design
3. Built-in active PFC function
4. IN IP67 / IP65 design for indoor or outdoor installations
5. Function options: output adjustable via potentiometer;
6. 3 in 1 dimming (dim-to-off, isolated design); smart timer
7. dimming; junction box
8. Typical lifetime > 62000 hours
9. 7 years warranty (Note.9)

Applications :

1. LED Harbour
2. LED greenhouse lighting
3. LED statium lighting
4. LED mining lighting
5. Type "HL' for use in Class I Division 2 hazardous(Classified) location
