HLG-240H-15C
SKU : HLG-240H-15C
Price |
80.00 USD 100.00 USD (-20%) |
Quantity to buy | |
Total | 80.00 USD |
Do not have enough stock
Out of stock

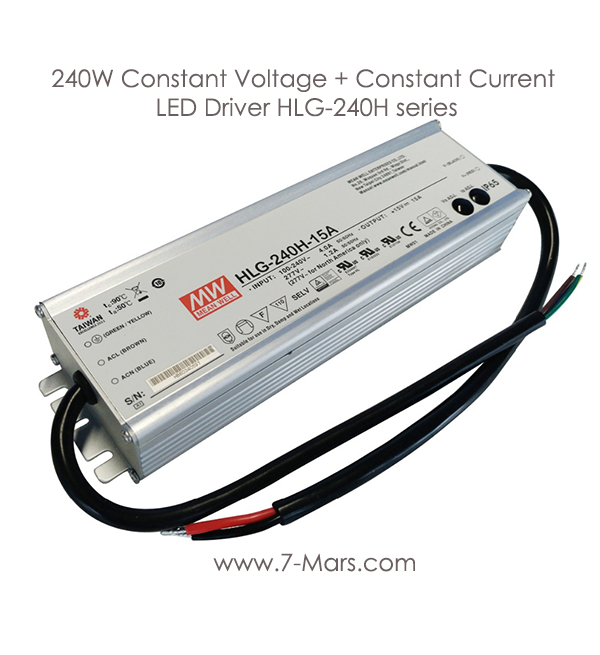

240W Constant Voltage + Constant Current LED Driver HLG-240H series
*Type C Terminal block for I/O connection. Output voltage and constant current
level can be adjusted through internal potentiometer. / Note : In Stock Power Output : 225W. / Voltage : 7.5 - 15V / Current : 15A
Description :
HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90 - 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40°C - +90°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Feature :
- Constant current + Constant Voltage mode Output
- Universal AC. Input / Full range
- Metal housing Class I Design
- Built-in active PFC. Function
- IP65 or 67 rating for Indoor or Out Door Installation
- Function Option : Output adjustable via Potentionmeter 3in1 Dimming
- Suitable for LED related for fixture or appliance ( Such as LED Decoretion or Advertisement devices )
- 90% Full load Brun - in Test
- Typecal lifetime 62000hrs.
- 7Year warranty
Application :
- LED Street light
- LED High-Bay Light
- Packing space lighting
- LED Fishing lamp
- LED Green house light
- Type "HL" Light for Use in Class I Division 2 hazardous (Classified) Location
MOQ. 1Ea. / 12Ea. 16.6kgs. 0.84CUFT.
More Detail : Click
