HLG-100H-54B

SKU : HLG-100H-54B

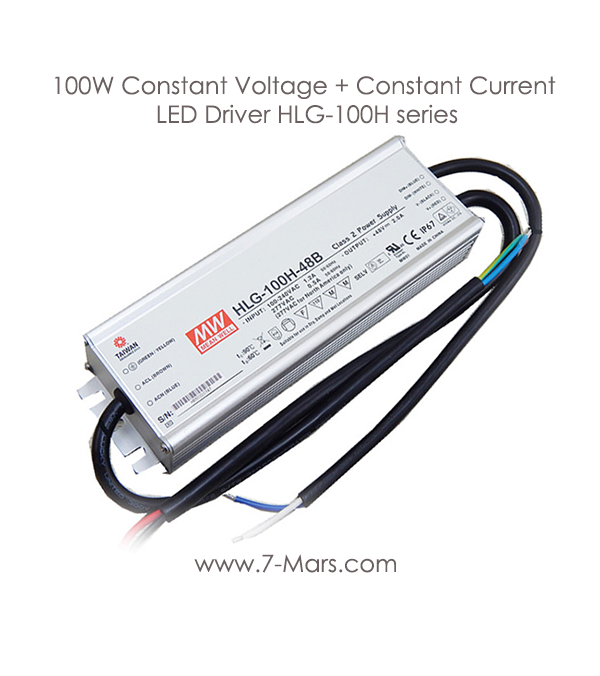

100W Constant Voltage + Constant Current LED Driver HLG-100H series

*Type A IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer. / Note : In Stock  Power Output : 95.58W. / Voltage : 27 - 54V / Current : .1.77A

Description :

HLG-100H series is a 100W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-100H operates from 90-305VAC and offers models with different rated voltage ranging between 20V and 54V. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C - +80°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-100H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Voltage + Constant Current mode output
2. Metal housing with class I design
3. Built-in active PFC function
4. Class 2 power unit
5. IP67 / IP65 rating for indoor or outdoor installations
6. Function options: output adjustable via potentiometer;
7. 3 in 1 dimming; Timer dimming
8. Typical lifetime > 62000 hours
9. 7 years warranty

Applications :

1. LED street lighting
2. LED high-bay lighting
3. Parking space lighting
4. LED fishing lamp
5. LED greenhouse lighting
6. Type "HL” for use in Class I Division 2 hazardous (Classified) location.
