HLG-80H-12B

SKU : HLG-80H-12B

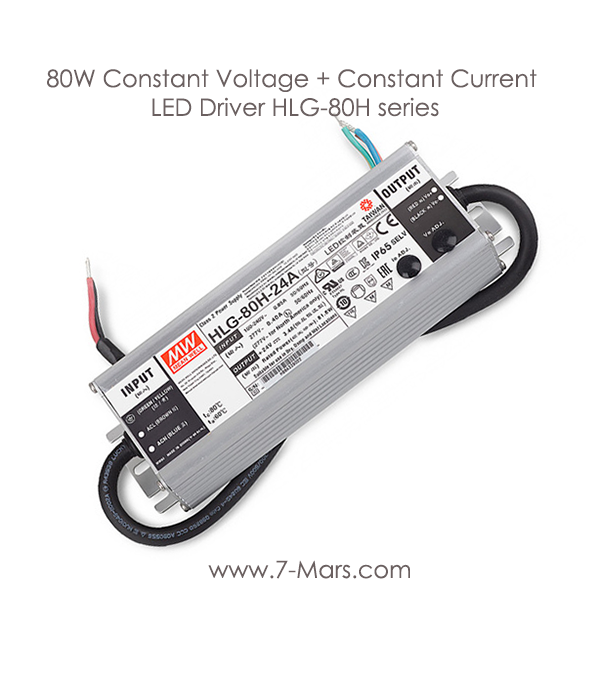

80W Constant Voltage + Constant Current LED Driver HLG-80H series

*Type B IP67 3 in 1 dimming function (0-10VDC, 10V PWM signal and resistance) / Note : In Stock  Power Output : 60W. / Voltage : 7.2 - 12V / Current : 5A

Description :

HLG-80H series is a 80W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-80H operates from 90 - 305VAC and offers models with different rated voltage rangingbetween 12V and 54V. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40°C - +80°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Voltage + Constant Current mode output
2. Metal housing with class I design
3. Built-in active PFC function
4. Class 2 power unit
5. IP67 / IP65 rating for indoor or outdoor installations
6. Function options: output adjustable via potentiometer;
7. 3 in 1 dimming; Timer dimming
8. Typical lifetime > 62000 hours
9. 7 years warranty

Applications :

1. LED street lighting
2. LED high-bay lighting
3. Parking space lighting
4. LED fishing lamp
5. LED greenhouse lighting
6. Type "HL” for use in Class I , Division 2 hazardous (Classified) location.
