HLG-120H-C700A

SKU : HLG-120H-C700A

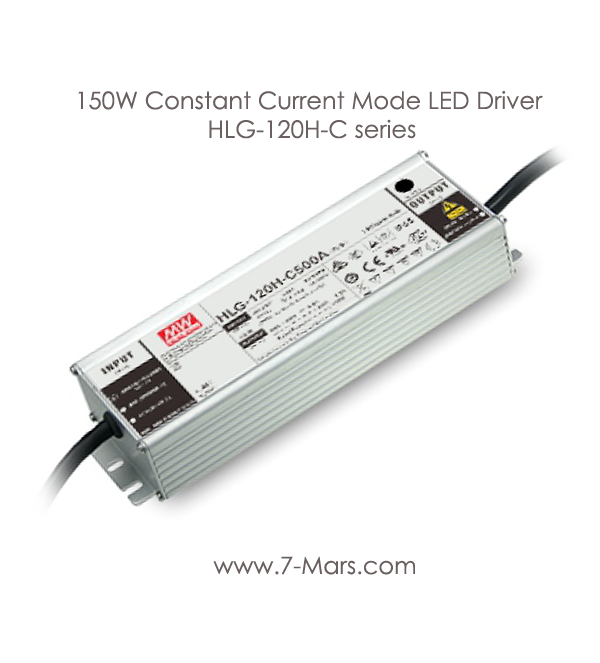

150W Constant Current Mode LED Driver HLG-120H-C series

*Type A IP65 Io and Vo adjustable through built-in potentiometer/ Note : In Stock  Power Output : 150.5. / Voltage : 107 - 205V / Current : 700mA.

Description :

HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-120H-C operates from 90-305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C - +90C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Constant Current mode output
2. Metal housing with Class I design
3. Built-in active PFC function
4. IP67 / IP65 design for indoor or outdoor installations
5. Function options: output adjustable via potentiometer
6. 3 in 1 dimming; Timer dimming
7. Typical lifetime>62000 hours
8. 7 years warranty

Applications :

1. LED street lighting
2. LED fishing lamp
3. LED harbor lighting
4. LED building architectural lighting
5. LED greenhouse lighting
6. LED bay lighting
