HLG-80H-C350A

SKU : HLG-80H-C350A

Price

51.00 USD


59.00 USD

 (-14%)
Quantity to buy
Total 51.00 USD

Do not have enough stock

Out of stock

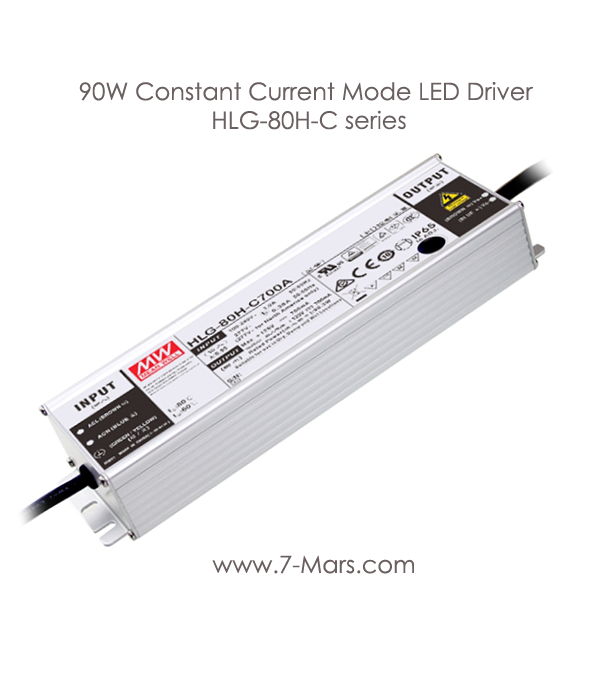

90W Constant Current Mode LED Driver HLG-80H-C series

*Type A IP65 Io adjustable through built-in potentiometer. / Note : In Stock  Power Output : 89.5W. / Voltage : 128 - 257V / Current : 350mA.

Description :

HLG-80H-C series is a 90W AC/DC LED driver featuring the constant current mode and high voltage output. HLG-80H-C operates from 90-305VAC and offers models with different rated current ranging between 350mA and 700mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C - +90C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-80H-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

  1. Constant Current mode output
  2. Metal housing with Class I design
  3. Built-in active PFC function
  4. IP67 / IP65 design for indoor or outdoor installations
  5. Function options: output adjustable via potentiometer
  6. 3 in 1 dimming; Timer dimming
  7. Typical lifetime>62000 hours
  8. 7 years warranty

Applications :

  1. LED street lighting
  2. LED fishing lamp
  3. LED harbor lighting
  4. LED building architectural lighting
  5. LED greenhouse lighting
  6. LED bay lighting
