HLG-60H-C700B

SKU : HLG-60H-C700B

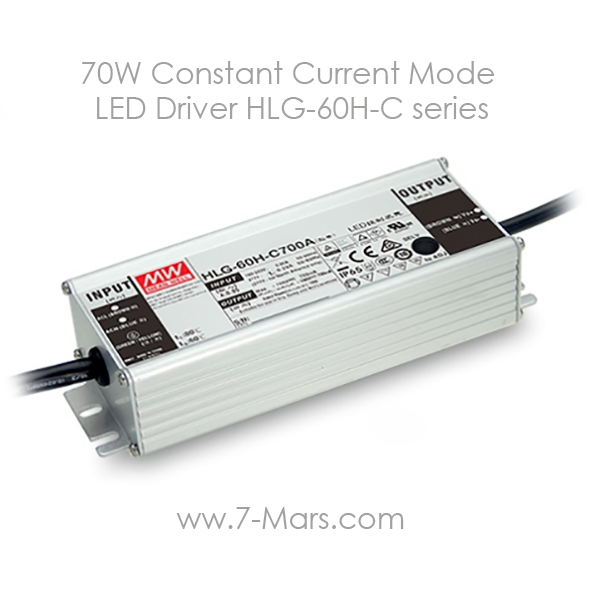

70W Constant Current Mode LED Driver

Type B 3 in 1 dimming function 1-10Vdc, 10V PWM signal and resistance) / Note : In Stock  Power Output : 70W. / Voltage : 50 - 100V / Current : 700mA.

Description :

HLG-60H-C series is a 70W AC/DC LED driver featuring the constant current mode and high voltage output.

HLG-60H-C operates from 90-305VAC and offers models with different rated current ranging between 350mA

and 700mA. Thanks to the high efficiency up to 91% with the fanless design, the entire series is able to operate

for-40C - +80'C case temperature under free air convection. The design of metal housing and IP67/IP65

ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H-C is

equipped with various function options, such as dimming methodologies, so as to provide the optimal design

flexibility for LED lighting system

Features :

Constant Current mode output

Metal housing with Class I design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer,

3 in 1 dimming; Timer dimming

Typical lifetime>62000 hours

7 years warranty

Applications :

• LED street lighting

• LED fishing lamp

• LED harbor lighting

LED building architectural lighting

· LED greenhouse lighting

• LED bay lighting
