HVGC-1000A-L-DX

SKU : HVGC-1000A-L-DX

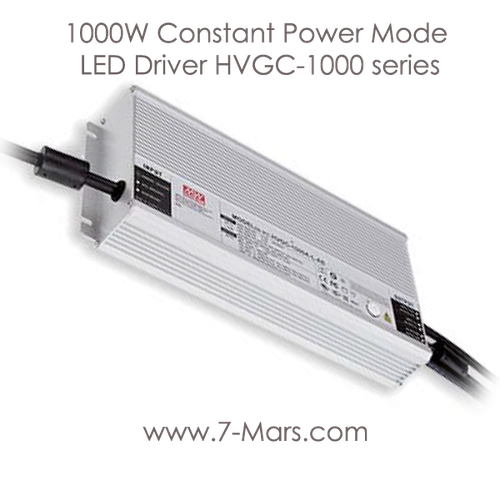

1000W Constant Power Mode LED Driver HVGC-1000 series

*Type DX IP67 Built-in Smart timer dimming function by user request. / Note : In Stock  Power Output : 1003.2W. / Voltage : 150 - 380V / Current : 2800mA.

Description :

HVGC-1000 series is a 1000W LED AC/DC driver featuring the constant power mode with wide output voltage range. HVGC-1000 operates from 180-528VAC and offers models with different rated current ranging between 1320mA and 7000mA. Thanks to the high efficiency up to 96%, with the fanless design, all models are able to operate for -40°C~+90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications, such as horticulture lighting and stadium light HVGC-1000 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features :

1. Wide input range 180 - 528VAC
2. Constant power mode output
3. Metal housing with Class I design
4. Surge protection with 8KV/4KV
5. Built-in active PFC function
6. IP67 design for indoor or outdoor installation
7. 3 in 1 dimming (dim to off and Isolation);
8. Smart timer dimming and DALI 2.0
9. Support with auxiliary DC output 12V/500mA
10. Typical lifetime>50000 hours
11. 5 years warranty

Applications :

1. Harbor lighting
2. High-bay lighting
3. Flood lighting
4. Fishing lamp
5. Horticulture lighting
6. Stadium lighting
7. Type “HL” for use in Class 1 , Division 2 hazardous (Classified) location.
