HVGC-650A-L-Dx

SKU : HVGC-650A-L-Dx

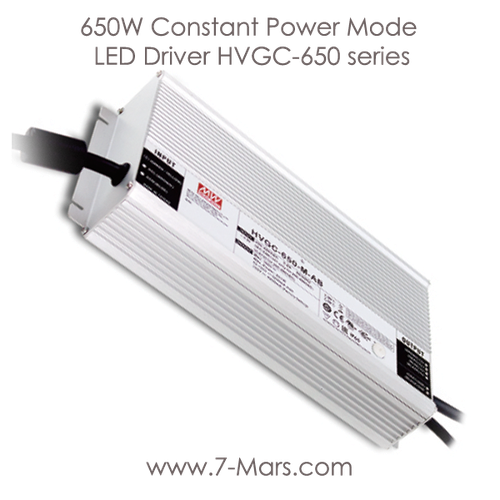

650W Constant Power Mode LED Driver HVGC-650 series

*Type Dx IP67 Built-in Smart timer dimming function by user request. / Note : In Stock  Power Output : 649.6W. / Voltage : 92.8 - 232V / Current : 2800mA.

Description :

HVGC-650 series is a 650W LED AC/DC driver featuring the constant power mode with wide outputvoltage range. HVGC-650 operates from 180-528VAC and offers models with different rated currentranging between 2800mA and 14000mA. Thanks to the high efficiency up to 95.5%, with the fanlessdesign, all models are able to operate for -40°C~ +85°C case temperature under free air convection. Thedesign of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoorapplications, such as horticulture lighting and stadium light HVGC-650 is equipped with various functionoptions, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system

Features :

1. Wide input range 180 - 528VAC
2. Constant power mode output
3. Metal housing with Class I design
4. Surge protection with 8KV/4KV
5. Built-in active PFC function
6. IP67 design for indoor or outdoor installation
7. 3 in 1 dimming (dim to off and Isolation);
8. Smart timer dimming and DALI 2.0
9. Support with auxiliary DC output 12V/500mA
10. Typical lifetime>50000 hours
11. 5 years warranty

Applications :

1. Harbor lighting
2. High-bay lighting
3. Flood lighting
4. Fishing lamp
5. Horticulture lighting
6. Stadium lighting
7. Type “HL” for use in Class 1 , Division 2 hazardous (Classified) location.
