HVGC-480-L-ADA

SKU : HVGC-480-L-ADA

Price

199.00 USD


219.00 USD

 (-9%)
Quantity to buy
Total 199.00 USD

Do not have enough stock

Out of stock

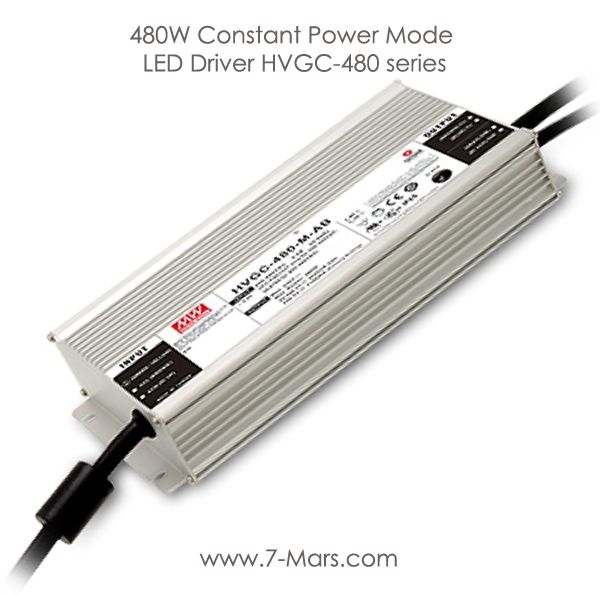

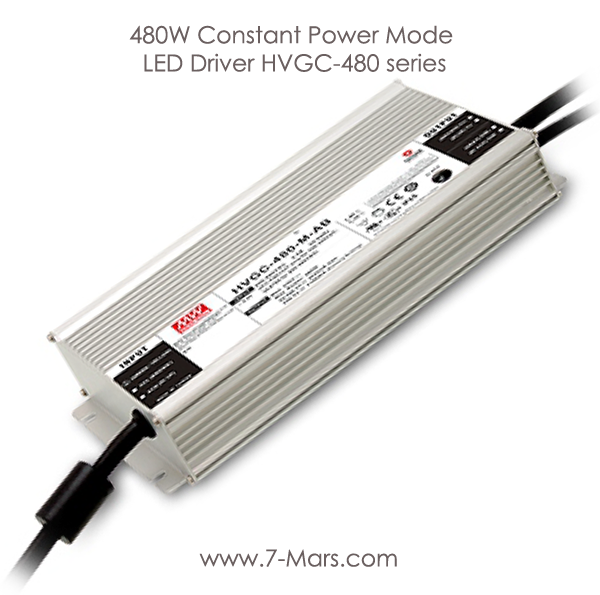

480W Constant Power Mode LED Driver HVGC-480 series

*Type ADA IP65 ADA IP65 DALI control technology with lo Adjustable via build-in Potentiometer / Note : In Stock  Power Output : 480W. / Voltage : 137 - 343V / Current : 1400mA.

Description :

HVGC-480 series is a 480W LED AC/DC driver featuring the constant power mode and high voltageoutput. HVGC-480 operates from 180-528VAC and offers models with different rated current rangingbetween 1400mA and 3500mA. Thanks to the high efficiency up to 94.5%, with the fanless design, theentire series is able to operate for -40°C~+90°C case temperature under free air convection. The designof metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HVGC-480 is equipped with various function options, such as dimming methodologies, soas to provide the optimal design flexibility for LED lighting system.

Features :

  • Wide input range 180 ~ 528VAC
  • Constant Power mode output
  • Metal housing with Class I design
  • Built-in active PFC function
  • Function options: output adjustable via potentiometer,
  • 3 in 1 dimming (dim-to-off) ; Smart timer dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Applications :

  • Harbor lighting
  • LED high-bay lighting
  • Parking space lighting
  • LED fishing lamp
  • Type "HL" for use in Class I, Division 2
  • hazardous (Classified) location.
