HVGC-320-1050DX
SKU : HVGC-320-1050DX
| Price |
159.00 USD 199.00 USD (-20%) |
| Quantity to buy | |
| Total | 159.00 USD |
Do not have enough stock
Out of stock

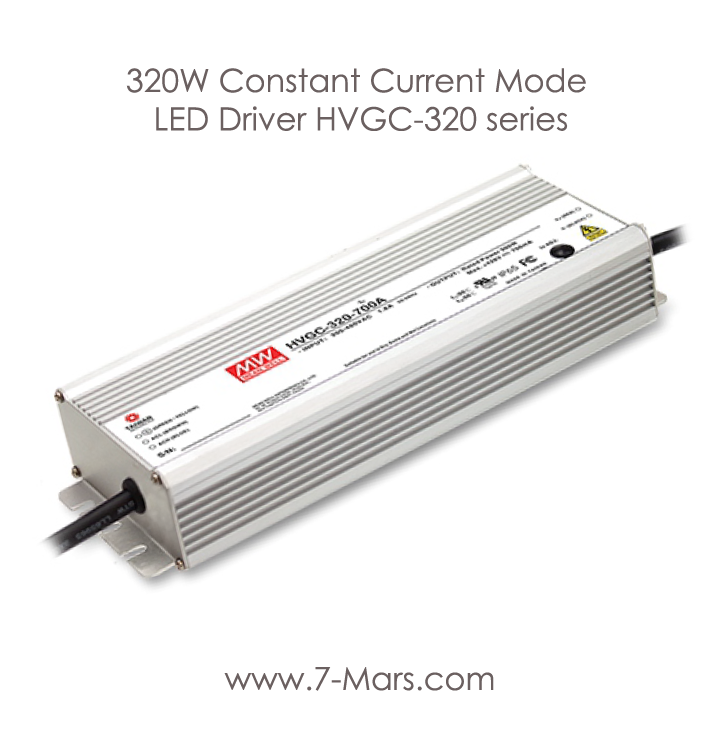

320W Constant Current Mode LED Driver HVGC-320 series
*Type DX IP67 Built-in Smart timer dimming function by user request./ Note : In Stock Power Output : 320W. / Voltage : 152.4 - 304.8 / Current : 1050mA.
Description
HVGC-320 series is a 320W LED AC/DC LED power supply featuring the constant current mode and highvoltage output.HVGC-320 operates from 180-528VAC and offers models with different rated current rangingbetween 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entireseries is able to operate for -40°C +90°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-320 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Power mode output
- Metal housing with Class I design
- Built-in active PFC function
- Function options: output adjustable via potentiometer,
- 3 in 1 dimming (dim-to-off) ; Smart timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Applications
- Harbor lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- Type "HL" for use in Class I, Division 2
- hazardous (Classified) location.
