HVGC-320-1050D2

SKU : HVGC-320-1050D2

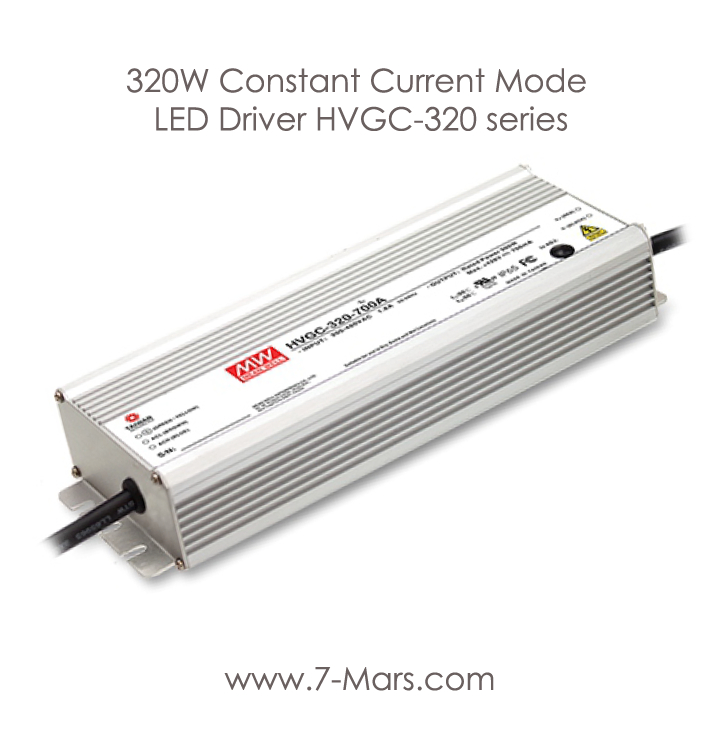

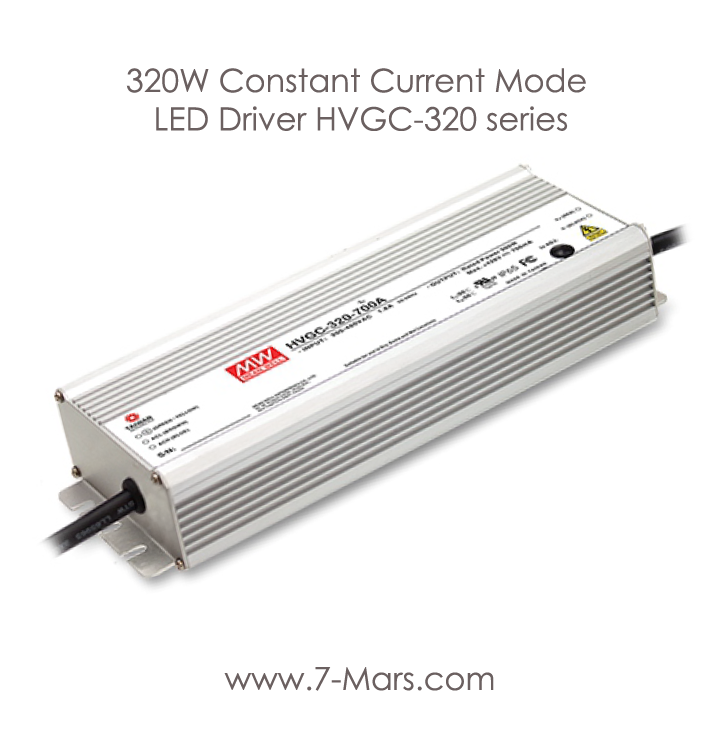

320W Constant Current Mode LED Driver HVGC-320 series

*Type D2 IP67 Built-in Smart timer dimming and programmable function./ Note : In Stock  Power Output : 320W. / Voltage : 152.4 - 304.8V / Current : 1050mA.

Description

HVGC-320 series is a 320W LED AC/DC LED power supply featuring the constant current mode and highvoltage output.HVGC-320 operates from 180-528VAC and offers models with different rated current rangingbetween 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entireseries is able to operate for -40°C +90°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-320 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.

Features

• Wide input range 180 ~ 528VAC
• Constant Power mode output
• Metal housing with Class I design
• Built-in active PFC function
• Function options: output adjustable via potentiometer,
• 3 in 1 dimming (dim-to-off) ; Smart timer dimming
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• Harbor lighting
• LED high-bay lighting
• Parking space lighting
• LED fishing lamp
• Type "HL" for use in Class I, Division 2
• hazardous (Classified) location.
