HVGC-240-1050DX

SKU : HVGC-240-1050DX

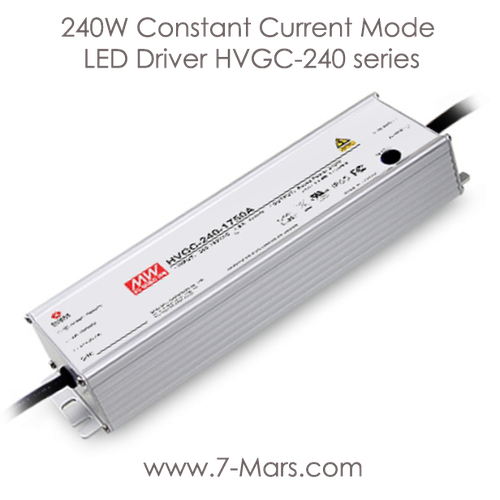

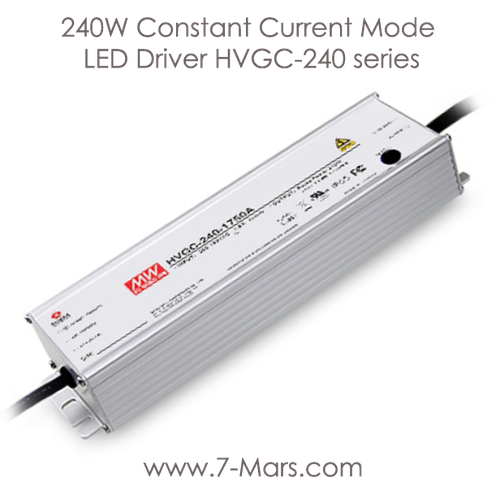

240W Constant Current Mode LED Driver HVGC-240 series

*Type DX IP67 Built-in Smart timer dimming function by user request. / Note : In Stock  Power Output : 240W. / Voltage : 114.3 - 228.6V / Current :1050mA.

Description :

HVGC-240 series is a 240W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-240 operates from 180-528VAC and offers models with different rated current rangingbetween 700mA and 3500mA. Thanks to the high efficiency up to 93.5%, with the fanless design, the entireseries is able to operate for -40°C - +90°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

• Wide input range 180 ~ 528VAC
• Constant Power mode output
• Metal housing with Class I design
• Built-in active PFC function
• Function options: output adjustable via potentiometer,
• 3 in 1 dimming (dim-to-off) ; Smart timer dimming
• Typical lifetime>50000 hours
• 5 years warranty

Applications

• Harbor lighting
•  LED high-bay lighting
• Parking space lighting
•  LED fishing lamp
• Type "HL" for use in Class I, Division 2
• hazardous (Classified) location.
