HVGC-150-1050A
SKU : HVGC-150-1050A
| Price |
98.00 USD 108.00 USD (-9%) |
| Quantity to buy | |
| Total | 98.00 USD |
Do not have enough stock
Out of stock

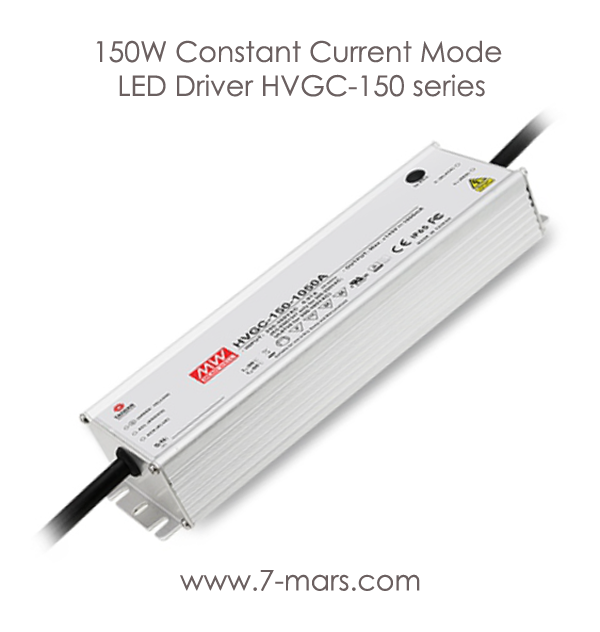

150W Constant Current Mode LED Driver HVGC-150 series
*Type A IP65 Io adjustable through built-in potentiometer. / Note : In Stock Power Output : 150.15W. / Voltage : 15 - 143V / Current : 1050mA.
Description
HVGC-150 series is a 150W LED AC/DC LED power supply featuring the constant current mode and highvoltage output. HVGC-150 operates from 180-528VAC and offers models with different rated current rangingbetween 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entireseries is able to operate for -40°C ~ +80°C case temperature under free air convection. The design of metalhousing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HVGC-150 is equipped with various function options, such as dimming methodologies, so as to providethe optimal design flexibility for LED lighting system.
Features
- Wide input range 180 ~ 528VAC
- Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67 / IP65 design for indoor or outdoor installations
- Function options: output adjustable via potentiometer;
- 3 in 1 dimming (dim-to-off) ; Timer dimming
- Typical lifetime>50000 hours
- 5 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- Type “HL" for use in Class I , Division 2
- hazardous (Classified) location.
